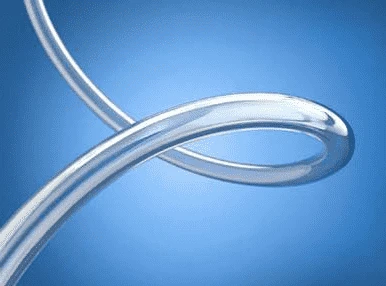

ADF02018 Tygon® By Saint Gobain | 1/4" I.D. X 7/16" O.D. X 3/32" Wall | ND-100-65 | Medical/Surgical Tubing | 100' Package Length

ADF02018 Tygon® By Saint Gobain | 1/4″ I.D. X 7/16″ O.D. X 3/32″ Wall | ND-100-65 | Medical/Surgical Tubing | 100′ Package Length

Original price was: $219.20.Current price is: $95.99.

SKU: AG9ZZ 1482049617956 Categories: , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers

SPECIFICATIONS

Application: Minimally invasive devices, Blood and IV solutions, Dialysis equipment, Wound drainage, Inhalation equipment, Chemotherapy drug delivery, Kidney dialysis pumps, Peristaltic pumps, and Catheters SAE Rating: N/A
Other Ratings: N/A Tube: N/A
Reinforcement: N/A Cover: N/A
Temperature Range: -44 deg. F (-42 deg. C) – 165 deg. F (74 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications REACH compliant ISO 10993 – Cytotoxicity… Pass ISO 10993 – Genotoxicity… Pass ISO 10993 – In Vitro Platelet Aggregation… Pass ISO 10993 – Irritation/Sensitization… Pass ISO 10993 – Unactivated Partial Thromboplastin Time Assay… Pass USP Class VI… Pass USP Physicochemical Testing/Plastics… Pass USP Pyrogens… Pass USP – Chromogenic Testing… Pass USP – Chromogenic Validation… Pass USP Physicochemical Testing/Elastomeric Closures… Pass C3a Complement Activation Assay… Pass Hemocompatibility… Pass European Pharmacopoeia 3.1.1.2… Pass
Literature: Tygon® Medical/Surgical Tubing – Formulation ND-100-65 (PDF)
Other Features:
  • Crystal clear for easy visualization of fluid flow
  • Ideal for contact with bodily fluids
  • Non-wetting surface permits complete drainage
  • REACH compliant
  • Withstands EtO, gas and gamma sterilization
  • WARNING: Tygon® Medical/Surgical Tubing – Formulation ND-100-65 is not intended as an implant material.
Part Number Inside Diameter (in.) Outside Diameter (in.) Wall Thickness (in.) Min. Bend Radius (in.) Max. Suggested Working Pressure at 73 deg. F (PSI)* Vacuum Rating at 73 deg. F (in. Hg) Length
ADF00001 1/32″ 3/32″ 1/32″ 1/8″ 100 PSI 29.9 in. Hg 50ft
ADF00002 1/16″ 1/8″ 1/32″ 1/4″ 55 PSI 29.9 in. Hg 50ft
ADF00003 1/16″ 3/16″ 1/16″ 1/8″ 100 PSI 29.9 in. Hg 50ft
ADF00004 3/32″ 5/32″ 1/32″ 3/8″ 40 PSI 29.9 in. Hg 50ft
ADF00005 3/32″ 7/32″ 1/16″ 1/4″ 70 PSI 29.9 in. Hg 50ft
ADF00006 1/8″ 3/16″ 1/32″ 1/2″ 30 PSI 25 in. Hg 50ft
ADF00007 1/8″ 1/4″ 1/16″ 3/8″ 55 PSI 29.9 in. Hg 50ft
ADF00009 5/32″ 7/32″ 1/32″ 3/4″ 25 PSI 15 in. Hg 50ft
ADF00010 5/32″ 9/32″ 1/16″ 1/2″ 45 PSI 29.9 in. Hg 50ft
ADF00011 3/16″ 1/4″ 1/32″ 1″ 20 PSI 10 in. Hg 50ft
ADF00012 3/16″ 5/16″ 1/16″ 5/8″ 40 PSI 29.9 in. Hg 50ft
ADF00013 3/16″ 3/8″ 3/32″ 1/8″ 55 PSI 29.9 in. Hg 50ft
ADF00016 1/4″ 5/16″ 1/32″ 1-5/8″ 18 PSI 5 in. Hg 50ft
ADF00017 1/4″ 3/8″ 1/16″ 1″ 30 PSI 25 in. Hg 50ft
ADF00018 1/4″ 7/16″ 3/32″ 3/4″ 45 PSI 29.9 in. Hg 50ft
ADF00019 1/4″ 1/2″ 1/8″ 5/8″ 55 PSI 29.9 in. Hg 50ft
ADF00022 5/16″ 7/16″ 1/16″ 1-3/8″ 25 PSI 15 in. Hg 50ft
ADF00023 5/16″ 1/2″ 3/32″ 1″ 35 PSI 29.9 in. Hg 50ft
ADF00024 5/16″ 9/16″ 1/8″ 7/8″ 45 PSI 29.9 in. Hg 50ft
ADF00027 3/8″ 1/2″ 1/16″ 1-3/4″ 20 PSI 10 in. Hg 50ft
ADF00028 3/8″ 9/16″ 3/32″ 1-3/8″ 30 PSI 25 in. Hg 50ft
ADF00029 3/8″ 5/8″ 1/8″ 1-1/8″ 40 PSI 29.9 in. Hg 50ft
ADF00033 7/16″ 5/8″ 3/32″ 1-3/4″ 25 PSI 18 in. Hg 50ft
ADF00036 1/2″ 5/8″ 1/16″ 2-7/8″ 18 PSI 6 in. Hg 50ft
ADF00037 1/2″ 11/16″ 3/32″ 2-1/8″ 25 PSI 15 in. Hg 50ft
ADF00038 1/2″ 3/4″ 1/8″ 1-3/4″ 30 PSI 25 in. Hg 50ft
ADF00041 9/16″ 3/4″ 3/32″ 2-1/2″ 20 PSI 10 in. Hg 50ft
ADF00045 5/8″ 13/16″ 3/32″ 3″ 20 PSI 9 in. Hg 50ft
ADF00046 5/8″ 7/8″ 1/8″ 2-3/8″ 25 PSI 15 in. Hg 50ft
ADF00053 3/4″ 1″ 1/8″ 3-1/4″ 20 PSI 10 in. Hg 50ft
ADF00059 7/8″ 1-1/8″ 1/8″ 4-1/8″ 20 PSI 8 in. Hg 50ft
ADF00062 1″ 1-1/4″ 1/8″ 5-1/8″ 18 PSI 4 in. Hg 50ft
ADF02002 1/16″ 1/8″ 1/32″ 1/4″ 55 PSI 29.9 in. Hg 100ft
ADF02003 1/16″ 3/16″ 1/16″ 1/8″ 100 PSI 29.9 in. Hg 100ft
ADF02004 3/32″ 5/32″ 1/32″ 3/8″ 40 PSI 29.9 in. Hg 100ft
ADF02006 1/8″ 3/16″ 1/32″ 1/2″ 30 PSI 25 in. Hg 100ft
ADF02007 1/8″ 1/4″ 1/16″ 3/8″ 55 PSI 29.9 in. Hg 100ft
ADF02010 5/32″ 9/32″ 1/16″ N/A N/A N/A 100ft
ADF02012 3/16″ 5/16″ 1/16″ 5/8″ 40 PSI 29.9 in. Hg 100ft
ADF02017 1/4″ 3/8″ 1/16″ 1″ 30 PSI 25 in. Hg 100ft
ADF02018 1/4″ 7/16″ 3/32″ 3/4″ 45 PSI 29.9 in. Hg 100ft
ADF02022 5/16″ 7/16″ 1/16″ 1-3/8″ 25 PSI 15 in. Hg 100ft
ADF02027 3/8″ 1/2″ 1/16″ 1-3/4″ 20 PSI 10 in. Hg 100ft
ADF02029 3/8″ 5/8″ 1/8″ 1-1/8″ 40 PSI 29.9 in. Hg 100ft
ADF02037 1/2″ 11/16″ 3/32″ 2-1/8″ 25 PSI 15 in. Hg 100ft
ADF02038 1/2″ 3/4″ 1/8″ 1-3/4″ 30 PSI 25 in. Hg 100ft

* Safety factor of 5:1 ratio of burst pressure to working pressure. Note: Every attempt has been taken to provide accurate detailed
usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and
up to date data and specifics. Important! It is the user’s responsibility to ensure the suitability and safety of Saint-Gobain
Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable
regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003
Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular
hose is not available “by the foot” through our site.
