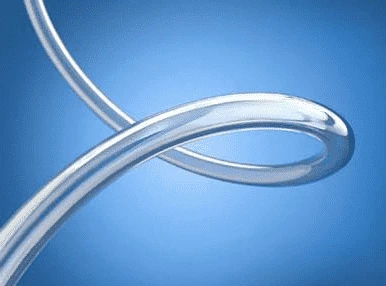

ADF00033 Tygon® By Saint Gobain | 7/16″ I.D. X 5/8″ O.D. X 3/32″ Wall | ND-100-65 | Medical/Surgical Tubing | 50′ Package Length

Original price was: $148.40.Current price is: $95.99.

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

SPECIFICATIONS

Other Features:
Application:	Minimally invasive devices, Blood and IV solutions, Dialysis equipment, Wound drainage, Inhalation equipment, Chemotherapy drug delivery, Kidney dialysis pumps, Peristaltic pumps, and Catheters	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	N/A
Reinforcement:	N/A	Cover:	N/A
Temperature Range:	-44 deg. F (-42 deg. C) – 165 deg. F (74 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	REACH compliant ISO 10993 – Cytotoxicity… Pass ISO 10993 – Genotoxicity… Pass ISO 10993 – In Vitro Platelet Aggregation… Pass ISO 10993 – Irritation/Sensitization… Pass ISO 10993 – Unactivated Partial Thromboplastin Time Assay… Pass USP Class VI… Pass USP Physicochemical Testing/Plastics… Pass USP Pyrogens… Pass USP – Chromogenic Testing… Pass USP – Chromogenic Validation… Pass USP Physicochemical Testing/Elastomeric Closures… Pass C3a Complement Activation Assay… Pass Hemocompatibility… Pass European Pharmacopoeia 3.1.1.2… Pass
Literature:	Tygon® Medical/Surgical Tubing – Formulation ND-100-65 (PDF)
Crystal clear for easy visualization of fluid flow Ideal for contact with bodily fluids Non-wetting surface permits complete drainage REACH compliant Withstands EtO, gas and gamma sterilization WARNING: Tygon® Medical/Surgical Tubing – Formulation ND-100-65 is not intended as an implant material.

Part Number	Inside Diameter (in.)	Outside Diameter (in.)	Wall Thickness (in.)	Min. Bend Radius (in.)	Max. Suggested Working Pressure at 73 deg. F (PSI)*	Vacuum Rating at 73 deg. F (in. Hg)	Length
ADF00001	1/32″	3/32″	1/32″	1/8″	100 PSI	29.9 in. Hg	50ft
ADF00002	1/16″	1/8″	1/32″	1/4″	55 PSI	29.9 in. Hg	50ft
ADF00003	1/16″	3/16″	1/16″	1/8″	100 PSI	29.9 in. Hg	50ft
ADF00004	3/32″	5/32″	1/32″	3/8″	40 PSI	29.9 in. Hg	50ft
ADF00005	3/32″	7/32″	1/16″	1/4″	70 PSI	29.9 in. Hg	50ft
ADF00006	1/8″	3/16″	1/32″	1/2″	30 PSI	25 in. Hg	50ft
ADF00007	1/8″	1/4″	1/16″	3/8″	55 PSI	29.9 in. Hg	50ft
ADF00009	5/32″	7/32″	1/32″	3/4″	25 PSI	15 in. Hg	50ft
ADF00010	5/32″	9/32″	1/16″	1/2″	45 PSI	29.9 in. Hg	50ft
ADF00011	3/16″	1/4″	1/32″	1″	20 PSI	10 in. Hg	50ft
ADF00012	3/16″	5/16″	1/16″	5/8″	40 PSI	29.9 in. Hg	50ft
ADF00013	3/16″	3/8″	3/32″	1/8″	55 PSI	29.9 in. Hg	50ft
ADF00016	1/4″	5/16″	1/32″	1-5/8″	18 PSI	5 in. Hg	50ft
ADF00017	1/4″	3/8″	1/16″	1″	30 PSI	25 in. Hg	50ft
ADF00018	1/4″	7/16″	3/32″	3/4″	45 PSI	29.9 in. Hg	50ft
ADF00019	1/4″	1/2″	1/8″	5/8″	55 PSI	29.9 in. Hg	50ft
ADF00022	5/16″	7/16″	1/16″	1-3/8″	25 PSI	15 in. Hg	50ft
ADF00023	5/16″	1/2″	3/32″	1″	35 PSI	29.9 in. Hg	50ft
ADF00024	5/16″	9/16″	1/8″	7/8″	45 PSI	29.9 in. Hg	50ft
ADF00027	3/8″	1/2″	1/16″	1-3/4″	20 PSI	10 in. Hg	50ft
ADF00028	3/8″	9/16″	3/32″	1-3/8″	30 PSI	25 in. Hg	50ft
ADF00029	3/8″	5/8″	1/8″	1-1/8″	40 PSI	29.9 in. Hg	50ft
ADF00033	7/16″	5/8″	3/32″	1-3/4″	25 PSI	18 in. Hg	50ft
ADF00036	1/2″	5/8″	1/16″	2-7/8″	18 PSI	6 in. Hg	50ft
ADF00037	1/2″	11/16″	3/32″	2-1/8″	25 PSI	15 in. Hg	50ft
ADF00038	1/2″	3/4″	1/8″	1-3/4″	30 PSI	25 in. Hg	50ft
ADF00041	9/16″	3/4″	3/32″	2-1/2″	20 PSI	10 in. Hg	50ft
ADF00045	5/8″	13/16″	3/32″	3″	20 PSI	9 in. Hg	50ft
ADF00046	5/8″	7/8″	1/8″	2-3/8″	25 PSI	15 in. Hg	50ft
ADF00053	3/4″	1″	1/8″	3-1/4″	20 PSI	10 in. Hg	50ft
ADF00059	7/8″	1-1/8″	1/8″	4-1/8″	20 PSI	8 in. Hg	50ft
ADF00062	1″	1-1/4″	1/8″	5-1/8″	18 PSI	4 in. Hg	50ft
ADF02002	1/16″	1/8″	1/32″	1/4″	55 PSI	29.9 in. Hg	100ft
ADF02003	1/16″	3/16″	1/16″	1/8″	100 PSI	29.9 in. Hg	100ft
ADF02004	3/32″	5/32″	1/32″	3/8″	40 PSI	29.9 in. Hg	100ft
ADF02006	1/8″	3/16″	1/32″	1/2″	30 PSI	25 in. Hg	100ft
ADF02007	1/8″	1/4″	1/16″	3/8″	55 PSI	29.9 in. Hg	100ft
ADF02010	5/32″	9/32″	1/16″	N/A	N/A	N/A	100ft
ADF02012	3/16″	5/16″	1/16″	5/8″	40 PSI	29.9 in. Hg	100ft
ADF02017	1/4″	3/8″	1/16″	1″	30 PSI	25 in. Hg	100ft
ADF02018	1/4″	7/16″	3/32″	3/4″	45 PSI	29.9 in. Hg	100ft
ADF02022	5/16″	7/16″	1/16″	1-3/8″	25 PSI	15 in. Hg	100ft
ADF02027	3/8″	1/2″	1/16″	1-3/4″	20 PSI	10 in. Hg	100ft
ADF02029	3/8″	5/8″	1/8″	1-1/8″	40 PSI	29.9 in. Hg	100ft
ADF02037	1/2″	11/16″	3/32″	2-1/8″	25 PSI	15 in. Hg	100ft
ADF02038	1/2″	3/4″	1/8″	1-3/4″	30 PSI	25 in. Hg	100ft

* Safety factor of 5:1 ratio of burst pressure to working pressure. Note: Every attempt has been taken to provide accurate detailed
usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and
up to date data and specifics. Important! It is the user’s responsibility to ensure the suitability and safety of Saint-Gobain
Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable
regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003
Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular
hose is not available “by the foot” through our site.
