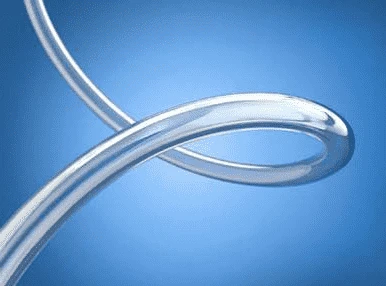

ADF00016 Tygon® By Saint Gobain | 1/4″ I.D. X 5/16″ O.D. X 1/32″ Wall | ND-100-65 | Medical/Surgical Tubing | 50′ Package Length
Original price was: $46.01.$32.21Current price is: $32.21.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
SPECIFICATIONS
| Application: | Minimally invasive devices, Blood and IV solutions, Dialysis equipment, Wound drainage, Inhalation equipment, Chemotherapy drug delivery, Kidney dialysis pumps, Peristaltic pumps, and Catheters | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | N/A |
| Reinforcement: | N/A | Cover: | N/A |
| Temperature Range: | -44 deg. F (-42 deg. C) – 165 deg. F (74 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | REACH compliant ISO 10993 – Cytotoxicity… Pass ISO 10993 – Genotoxicity… Pass ISO 10993 – In Vitro Platelet Aggregation… Pass ISO 10993 – Irritation/Sensitization… Pass ISO 10993 – Unactivated Partial Thromboplastin Time Assay… Pass USP Class VI… Pass USP Physicochemical Testing/Plastics… Pass USP Pyrogens… Pass USP – Chromogenic Testing… Pass USP – Chromogenic Validation… Pass USP Physicochemical Testing/Elastomeric Closures… Pass C3a Complement Activation Assay… Pass Hemocompatibility… Pass European Pharmacopoeia 3.1.1.2… Pass |
| Literature: | Tygon® Medical/Surgical Tubing – Formulation ND-100-65 (PDF) | ||
| Other Features: | |||
| |||
| Part Number | Inside Diameter (in.) | Outside Diameter (in.) | Wall Thickness (in.) | Min. Bend Radius (in.) | Max. Suggested Working Pressure at 73 deg. F (PSI)* | Vacuum Rating at 73 deg. F (in. Hg) | Length |
|---|---|---|---|---|---|---|---|
| ADF00001 | 1/32″ | 3/32″ | 1/32″ | 1/8″ | 100 PSI | 29.9 in. Hg | 50ft |
| ADF00002 | 1/16″ | 1/8″ | 1/32″ | 1/4″ | 55 PSI | 29.9 in. Hg | 50ft |
| ADF00003 | 1/16″ | 3/16″ | 1/16″ | 1/8″ | 100 PSI | 29.9 in. Hg | 50ft |
| ADF00004 | 3/32″ | 5/32″ | 1/32″ | 3/8″ | 40 PSI | 29.9 in. Hg | 50ft |
| ADF00005 | 3/32″ | 7/32″ | 1/16″ | 1/4″ | 70 PSI | 29.9 in. Hg | 50ft |
| ADF00006 | 1/8″ | 3/16″ | 1/32″ | 1/2″ | 30 PSI | 25 in. Hg | 50ft |
| ADF00007 | 1/8″ | 1/4″ | 1/16″ | 3/8″ | 55 PSI | 29.9 in. Hg | 50ft |
| ADF00009 | 5/32″ | 7/32″ | 1/32″ | 3/4″ | 25 PSI | 15 in. Hg | 50ft |
| ADF00010 | 5/32″ | 9/32″ | 1/16″ | 1/2″ | 45 PSI | 29.9 in. Hg | 50ft |
| ADF00011 | 3/16″ | 1/4″ | 1/32″ | 1″ | 20 PSI | 10 in. Hg | 50ft |
| ADF00012 | 3/16″ | 5/16″ | 1/16″ | 5/8″ | 40 PSI | 29.9 in. Hg | 50ft |
| ADF00013 | 3/16″ | 3/8″ | 3/32″ | 1/8″ | 55 PSI | 29.9 in. Hg | 50ft |
| ADF00016 | 1/4″ | 5/16″ | 1/32″ | 1-5/8″ | 18 PSI | 5 in. Hg | 50ft |
| ADF00017 | 1/4″ | 3/8″ | 1/16″ | 1″ | 30 PSI | 25 in. Hg | 50ft |
| ADF00018 | 1/4″ | 7/16″ | 3/32″ | 3/4″ | 45 PSI | 29.9 in. Hg | 50ft |
| ADF00019 | 1/4″ | 1/2″ | 1/8″ | 5/8″ | 55 PSI | 29.9 in. Hg | 50ft |
| ADF00022 | 5/16″ | 7/16″ | 1/16″ | 1-3/8″ | 25 PSI | 15 in. Hg | 50ft |
| ADF00023 | 5/16″ | 1/2″ | 3/32″ | 1″ | 35 PSI | 29.9 in. Hg | 50ft |
| ADF00024 | 5/16″ | 9/16″ | 1/8″ | 7/8″ | 45 PSI | 29.9 in. Hg | 50ft |
| ADF00027 | 3/8″ | 1/2″ | 1/16″ | 1-3/4″ | 20 PSI | 10 in. Hg | 50ft |
| ADF00028 | 3/8″ | 9/16″ | 3/32″ | 1-3/8″ | 30 PSI | 25 in. Hg | 50ft |
| ADF00029 | 3/8″ | 5/8″ | 1/8″ | 1-1/8″ | 40 PSI | 29.9 in. Hg | 50ft |
| ADF00033 | 7/16″ | 5/8″ | 3/32″ | 1-3/4″ | 25 PSI | 18 in. Hg | 50ft |
| ADF00036 | 1/2″ | 5/8″ | 1/16″ | 2-7/8″ | 18 PSI | 6 in. Hg | 50ft |
| ADF00037 | 1/2″ | 11/16″ | 3/32″ | 2-1/8″ | 25 PSI | 15 in. Hg | 50ft |
| ADF00038 | 1/2″ | 3/4″ | 1/8″ | 1-3/4″ | 30 PSI | 25 in. Hg | 50ft |
| ADF00041 | 9/16″ | 3/4″ | 3/32″ | 2-1/2″ | 20 PSI | 10 in. Hg | 50ft |
| ADF00045 | 5/8″ | 13/16″ | 3/32″ | 3″ | 20 PSI | 9 in. Hg | 50ft |
| ADF00046 | 5/8″ | 7/8″ | 1/8″ | 2-3/8″ | 25 PSI | 15 in. Hg | 50ft |
| ADF00053 | 3/4″ | 1″ | 1/8″ | 3-1/4″ | 20 PSI | 10 in. Hg | 50ft |
| ADF00059 | 7/8″ | 1-1/8″ | 1/8″ | 4-1/8″ | 20 PSI | 8 in. Hg | 50ft |
| ADF00062 | 1″ | 1-1/4″ | 1/8″ | 5-1/8″ | 18 PSI | 4 in. Hg | 50ft |
| ADF02002 | 1/16″ | 1/8″ | 1/32″ | 1/4″ | 55 PSI | 29.9 in. Hg | 100ft |
| ADF02003 | 1/16″ | 3/16″ | 1/16″ | 1/8″ | 100 PSI | 29.9 in. Hg | 100ft |
| ADF02004 | 3/32″ | 5/32″ | 1/32″ | 3/8″ | 40 PSI | 29.9 in. Hg | 100ft |
| ADF02006 | 1/8″ | 3/16″ | 1/32″ | 1/2″ | 30 PSI | 25 in. Hg | 100ft |
| ADF02007 | 1/8″ | 1/4″ | 1/16″ | 3/8″ | 55 PSI | 29.9 in. Hg | 100ft |
| ADF02010 | 5/32″ | 9/32″ | 1/16″ | N/A | N/A | N/A | 100ft |
| ADF02012 | 3/16″ | 5/16″ | 1/16″ | 5/8″ | 40 PSI | 29.9 in. Hg | 100ft |
| ADF02017 | 1/4″ | 3/8″ | 1/16″ | 1″ | 30 PSI | 25 in. Hg | 100ft |
| ADF02018 | 1/4″ | 7/16″ | 3/32″ | 3/4″ | 45 PSI | 29.9 in. Hg | 100ft |
| ADF02022 | 5/16″ | 7/16″ | 1/16″ | 1-3/8″ | 25 PSI | 15 in. Hg | 100ft |
| ADF02027 | 3/8″ | 1/2″ | 1/16″ | 1-3/4″ | 20 PSI | 10 in. Hg | 100ft |
| ADF02029 | 3/8″ | 5/8″ | 1/8″ | 1-1/8″ | 40 PSI | 29.9 in. Hg | 100ft |
| ADF02037 | 1/2″ | 11/16″ | 3/32″ | 2-1/8″ | 25 PSI | 15 in. Hg | 100ft |
| ADF02038 | 1/2″ | 3/4″ | 1/8″ | 1-3/4″ | 30 PSI | 25 in. Hg | 100ft |
* Safety factor of 5:1 ratio of burst pressure to working pressure. Note: Every attempt has been taken to provide accurate detailed
usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and
up to date data and specifics. Important! It is the user’s responsibility to ensure the suitability and safety of Saint-Gobain
Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable
regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003
Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular
hose is not available “by the foot” through our site.
