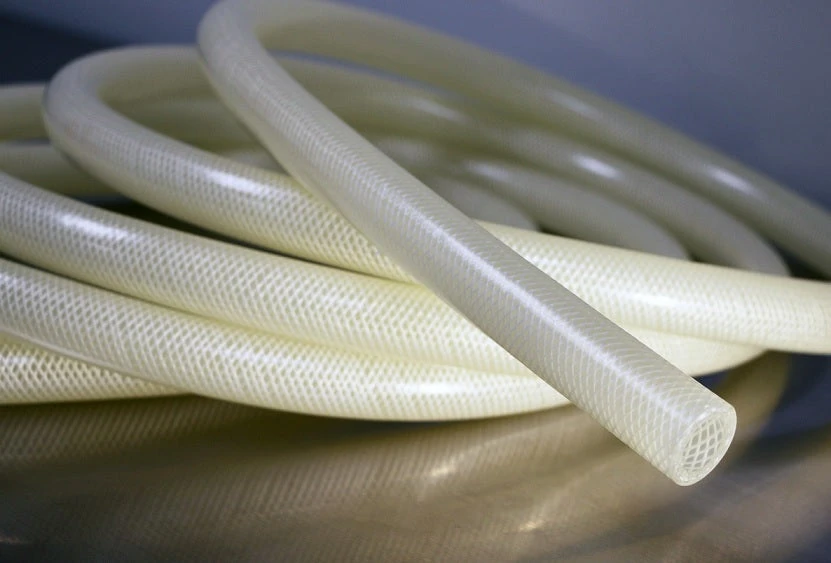

ACC40038 C-Flex® By Saint Gobain | 1/2″ ID X 3/4″ OD X 1/8″ Wall | TPE Braided Biopharm Tubing | 15′ Package Length

Original price was: $93.97.Current price is: $65.78.

SKU: AG9ZZ 7791377809573 Categories: Bulk Hose & Covers, Tubing Tags: C-Flex® TPE Braided Biopharm Tubing, Collection-lvl1_All Hose, Collection-lvl2_Tubing, Collection-lvl3_Medical and Biopharm Tubing, Filter-All-Series_C-Flex, Filter-All-Specifications and Approvals_European Pharmacopoeia 3.2.9, Filter-All-Specifications and Approvals_ISO 10993-11, Filter-All-Specifications and Approvals_ISO 10993-3, Filter-All-Specifications and Approvals_ISO 10993-4, Filter-All-Specifications and Approvals_ISO 10993-5, Filter-All-Specifications and Approvals_USP - Class VI, Filter-AllHose-Color_White/Off-White & Clear/Semi-Clear, Filter-AllHose-ID_0.50", Filter-AllHose-TubingConstruction_Thermoplastic Polymer, Filter-IndustrialHoseTubingJoints-OD_0.75", Id-1-2, Industrial Plastic Tubing, Matrixify2nd50kProducts, Od-3-4, PackageLength:15', PriceTiers_SG-ACC4-15FT, Saint Gobain Tubing, SG_Bio-Med, Tubing, Unit-ft-15, Wall:1/8"

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

SPECIFICATIONS

Other Features:
Application:	Vessel and tank transfers with elevated pressure requirements, High pressure tests such as Filter Integrity Testing, Fluid transfer applications needing crush or kink-resistance	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	C-Flex 082 thermoplastic materials
Reinforcement:	Polyester Fiber	Cover:	N/A
Temperature Range:	-85°F (-67°C) to 275°F (135°C)	Crimp Fittings:	N/A
Specifications	C-Flex® Braided tubing is manufactured from C-Flex 082 thermoplastic materials and tested to a variety of specifications including: USP Class VI – ISO 10993-5 (Cytotoxicity, In-Vitro) ISO 10993-3 (Ames Genotoxicity) – ISO 10993-11 (Systemic Toxicity, In-Vivo) ISO 10993-4 (Hemolysis, Indirect) – European Pharmacopeia 3.2.9
Literature:	C-Flex® TPE Braided Biopharmaceutical Tubing (PDF)
Up to five times higher burst pressures compared to non-braided materials. A product validation test summary is available. Compatible with overmolding technology for single-use systems. Ultra-flexible, improved bend radius over non-reinforced tubing. Compatible with autoclave and gamma irradiation. WARNING: C-Flex® TPE Braided Biopharmaceutical Tubing is not intended as an implant material.

Part Number	Inside Diameter		Outside Diameter		Wall Thickness		Min. Bend Radius		Max. Working Pressure* at 68°F / 20°C		Length
Part Number	in	mm	in	mm	in	mm	in	mm	PSI	bar	Length
ACC422253	0.125″	3.8mm	0.355″	9.02mm	0.115″	2.92mm	0.5″	12.7mm	105 PSI	7.2 bar	25ft
ACC42019	0.250″	6.35mm	0.500″	12.70mm	0.125″	3.18mm	1.5″	38.1mm	110 PSI	7.6 bar	25ft
ACC42029	0.375″	9.53mm	0.625″	15.88mm	0.125″	3.18mm	2.5″	63.5mm	80 PSI	5.5 bar	25ft
ACC40038	0.500″	12.70mm	0.750″	19.05mm	0.125″	3.18mm	3.5″	88.9mm	105 PSI	7.2 bar	15ft
ACC40048	0.625″	15.88mm	1.000″	25.40mm	0.187″	4.75mm	4″	101.6mm	110 PSI	7.6 bar	15ft
ACC40053	0.625″	–	1.000″	–	0.187″	–	4″	–	–	–	15ft
ACC40055	0.750″	19.05mm	1.125″	28.58mm	0.187″	4.75mm	5.5″	139.7mm	110 PSI	7.6 bar	15ft

* Working pressure is determined using a 4:1 safety factor of the maximum burst pressure per ASTM D1599.

Note: Every attempt has been taken to provide accurate detailed
usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics.
Important! It is the user’s responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses.
Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of
tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this
particular hose is not available “by the foot” through our site.
