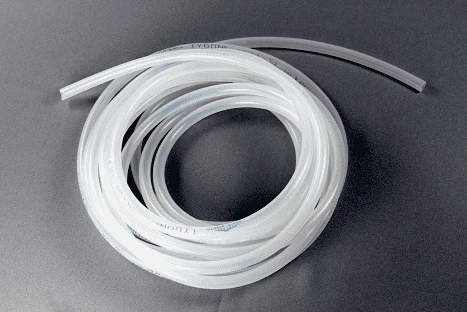

ABW17NSF Tygon® By Saint Gobain | 1/4″ ID X 3/8″ OD X 1/16″ Wall | SPT-3350 | Silicone Tubing For Food & Beverage Transfer | Old Part #: ABW00017 | 50′ Package Length
Original price was: $152.72.$97.99Current price is: $97.99.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
| Application: | Food and Beverage Dispensing | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Silicone |
| Reinforcement: | N/A | Cover: | N/A |
| Temperature Range: | -112 deg. F (-80 deg. C) – 400 deg. F (204 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | 3-A Sanitary Standard No. 18-01 FDA 21 CFR 175.300 NSF 51** |
| Literature: | Tygon® Silicone Tubing for Food & Beverage Transfer – Formulation SPT-3350 (PDF) | ||
| Other Features: | |||
| |||
| Part Number | Inside Diameter | Outside Diameter | Wall Thickness | Length | Min. Bend Radius | Max. Working Pressure | Vacuum Rating | ||
|---|---|---|---|---|---|---|---|---|---|
| (in.) | (in.) | (in.) | (in.) | 73 deg. F (PSI)* | 320 deg. F (PSI)* | inHg at 73 deg. F* | inHg at 320 deg. F* | ||
| ABW01NSF | 1/32″ | 3/32″ | 1/32″ | 50ft | 1/2″ | 22 PSI | 21 PSI | 29.9 in. Hg | 29.9 in. Hg |
| ABW02NSF | 1/16″ | 1/8″ | 1/32″ | 50ft | 1/4″ | 14 PSI | 13 PSI | 29.9 in. Hg | 29.9 in. Hg |
| ABW03NSF | 1/16″ | 3/16″ | 1/16″ | 50ft | 1/4″ | 22 PSI | 21 PSI | 29.9 in. Hg | 29.9 in. Hg |
| ABW04NSF | 3/32″ | 5/32″ | 1/32″ | 50ft | 1/4″ | 11 PSI | 10 PSI | 29.9 in. Hg | 29.9 in. Hg |
| ABW05NSF | 3/32″ | 7/32″ | 1/16″ | 50ft | 1/4″ | 18 PSI | 16 PSI | 29.9 in. Hg | 29.9 in. Hg |
| ABW06NSF | 1/8″ | 3/16″ | 1/32″ | 50ft | 3/8″ | 9 PSI | 8 PSI | 20.0 in. Hg | 15.0 in. Hg |
| ABW07NSF | 1/8″ | 1/4″ | 1/16″ | 50ft | 1/2″ | 14 PSI | 13 PSI | 29.9 in. Hg | 29.9 in. Hg |
| ABW09NSF | 5/32″ | 7/32″ | 1/32″ | 50ft | 3/4″ | 7 PSI | 6 PSI | 10.0 in. Hg | 10.0 in. Hg |
| ABW11NSF | 3/16″ | 1/4″ | 1/32″ | 50ft | 1″ | 7 PSI | 6 PSI | 5.0 in. Hg | 5.0 in. Hg |
| ABW12NSF | 3/16″ | 5/16″ | 1/16″ | 50ft | 1/2″ | 11 PSI | 10 PSI | 25.0 in. Hg | 25.0 in. Hg |
| ABW13NSF | 3/16″ | 3/8″ | 3/32″ | 50ft | 3/8″ | 14 PSI | 13 PSI | 29.9 in. Hg | 29.9 in. Hg |
| ABW14NSF | 3/16″ | 7/6″ | 1/8″ | 50ft | 3/8″ | 18 PSI | 16 PSI | 29.9 in. Hg | 29.9 in. Hg |
| ABW16NSF | 1/4″ | 5/16″ | 1/32″ | 50ft | 1-1/2″ | 5 PSI | 4 PSI | 1.0 in. Hg | 1.0 in. Hg |
| ABW17NSF | 1/4″ | 3/8″ | 1/16″ | 50ft | 3/4″ | 9 PSI | 8 PSI | 15.0 in. Hg | 15.0 in. Hg |
| ABW18NSF | 1/4″ | 7/16″ | 3/32″ | 50ft | 5/8″ | 12 PSI | 11 PSI | 29.9 in. Hg | 29.9 in. Hg |
| ABW19NSF | 1/4″ | 1/2″ | 1/8″ | 50ft | 5/8″ | 14 PSI | 13 PSI | 29.9 in. Hg | 29.9 in. Hg |
| ABW22NSF | 5/16″ | 7/16″ | 1/16″ | 50ft | 1-1/4″ | 7 PSI | 6 PSI | 5.0 in. Hg | 5.0 in. Hg |
| ABW23NSF | 5/16″ | 1/2″ | 3/32″ | 50ft | 5/8″ | 10 PSI | 9 PSI | 20.0 in. Hg | 20.0 in. Hg |
| ABW27NSF | 3/8″ | 1/2″ | 1/16″ | 50ft | 1-1/2″ | 9 PSI | 8 PSI | 5.0 in. Hg | 5.0 in. Hg |
| ABW28NSF | 3/8″ | 9/16″ | 3/32″ | 50ft | 1″ | 11 PSI | 10 PSI | 20.0 in. Hg | 15.0 in. Hg |
| ABW29NSF | 3/8″ | 5/8″ | 1/8″ | 50ft | 1″ | 12 PSI | 11 PSI | 29.9 in. Hg | 29.9 in. Hg |
| ABW32NSF | 7/16″ | 9/16″ | 1/16″ | 50ft | 1-1/2″ | 4 PSI | 3 PSI | 2.0 in. Hg | 2.0 in. Hg |
| ABW33NSF | 7/16″ | 5/8″ | 3/32″ | 50ft | 1-3/4″ | 8 PSI | 7 PSI | 10.0 in. Hg | 10.0 in. Hg |
| ABW36NSF | 1/2″ | 5/8″ | 1/16″ | 50ft | 3″ | 5 PSI | 4 PSI | 1.0 in. Hg | 1.0 in. Hg |
| ABW37NSF | 1/2″ | 11/16″ | 3/32″ | 50ft | 1-3/4″ | 7 PSI | 6 PSI | 5.0 in. Hg | 5.0 in. Hg |
| ABW38NSF | 1/2″ | 3/4″ | 1/8″ | 50ft | 1-1/2″ | 9 PSI | 8 PSI | 15.0 in. Hg | 15.0 in. Hg |
| ABW45NSF | 5/8″ | 13./16″ | 3/32″ | 50ft | 3″ | 6 PSI | 5 PSI | 5.0 in. Hg | 0.0 in. Hg |
| ABW46NSF | 5/8″ | 7/8″ | 1/8″ | 50ft | 2-1/2″ | 7 PSI | 6 PSI | 10.0 in. Hg | 10.0 in. Hg |
| ABW53NSF | 3/4″ | 1″ | 1/8″ | 50ft | 2-1/2″ | 7 PSI | 6 PSI | 1.0 in. Hg | 1.0 in. Hg |
| ABW62NSF | 1″ | 1-1/4″ | 1/8″ | 50ft | 5″ | 5 PSI | 4 PSI | 0.0 in. Hg | 0.0 in. Hg |
| ABW69NSF | 1-1/4″ | 1-1/2″ | 1/8″ | 50ft | 6″ | 5 PSI | 4 PSI | 0.0 in. Hg | 0.0 in. Hg |
| ABW74NSF | 1-1/2″ | 2″ | 1/4″ | 50ft | 7″ | 6 PSI | 5 PSI | 1.0 in. Hg | 1.0 in. Hg |
* Working pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599
**Only US Manufacturing sites are NSF compliant. For EU manufacturing sites, NSF compliance is in progress. Note: Every attempt has been
taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents
for the most accurate and up to date data and specifics. Important! It is the user’s responsibility to ensure the suitability and safety
of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable
regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain
Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available
“by the foot” through our site.
