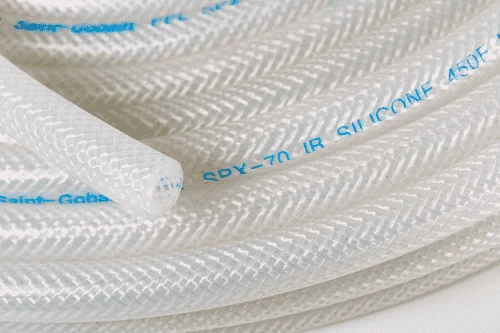

AB6421725 Versilon™ By Saint Gobain | 1-1/4″ ID X 1-7/11″ OD X 11/57″ Wall | SPX-70 IB | Reinforced High Tensile Strength Silicone Tubing | 25′ Package Length
Original price was: $322.00.$96.99Current price is: $96.99.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
| Application: | Beverage Dispensing, Cosmetic Production, Food & Dairy Processing, High Temp Chemical Processing, Sanitary Fitting Assembly, Sterile Filling & Processing, Water Purification Systems | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Silicone |
| Reinforcement: | Braided Reinforcement | Cover: | N/A |
| Temperature Range: | -112 deg. F (-80 deg. C) 320 deg. F (160 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | FDA 21 CFR Part 177.2600, NSF 51** |
| Literature: | Versilon™ SPX-70 IB Reinforced High Tensile Strength Silicone Tubing (PDF) | ||
| Other Features: | |||
| |||
| Part Number | Inside Diameter (in.) | Outside Diameter (in.) | Wall Thickness (in.) | Min. Bend Radius (in.) | Max. Working Pressure at 73 deg. F (PSI)* | Max. Working Pressure at 320 deg. F (PSI)* | Vacuum Rating at 73 deg. F (in. Hg) | Vacuum Rating at 320 deg. F (in. Hg) | Length |
|---|---|---|---|---|---|---|---|---|---|
| AB6001718 | 3/16″ | 35/79″ | 6/47″ | 1/4″ | 180 PSI | 175 PSI | 29.9 in. Hg | 29.9 in. Hg | 250ft |
| AB6001719 | 1/4″ | 17/33″ | 11/83″ | 1/2″ | 145 PSI | 140 PSI | 29.9 in. Hg | 29.9 in. Hg | 250ft |
| AB6001720 | 3/8″ | 11/16″ | 5/32″ | 3/4″ | 210 PSI | 190 PSI | 29.9 in. Hg | 29.9 in. Hg | 250ft |
| AB6001721 | 1/2″ | 72/85″ | 17/98″ | 1″ | 185 PSI | 165 PSI | 29.9 in. Hg | 29.9 in. Hg | 250ft |
| AB6001722 | 5/8″ | 49/50″ | 11/62″ | 1-1/2″ | 135 PSI | 125 PSI | 29.9 in. Hg | 29.9 in. Hg | 250ft |
| AB6001671 | 3/4″ | 1-3/20″ | 1/5″ | 2-1/4″ | 170 PSI | 105 PSI | 29.9 in. Hg | 29.9 in. Hg | 250ft |
| AB6001724 | 1″ | 1-23/59″ | 8/41″ | 2-1/2″ | 105 PSI | 75 PSI | 29.9 in. Hg | 29.9 in. Hg | 250ft |
| AB6421725 | 1-1/4″ | 1-7/11″ | 11/57″ | 4-1/4″ | 80 PSI | 65 PSI | 25.0 in. Hg | 20.0 in. Hg | 250ft |
| AB6421726 | 1-1/2″ | 1-9/10″ | 1/5″ | 5-1/4″ | 70 PSI | 45 PSI | 10.0 in. Hg | 10.0 in. Hg | 250ft |
* Working pressures are calculated at a 1:4 ratio relative to burst pressure using ASTM D1599 ** Only US Manufacturing sites are NSF compliant. For EU manufacturing sites, NSF compliance is in progress. Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user’s responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available “by the foot” through our site.
