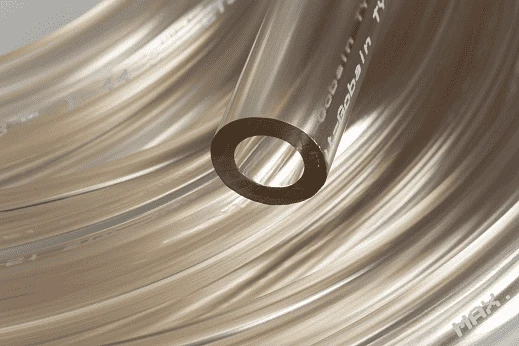

AAA00078 Tygon S3™ By Saint Gobain | 2″ ID X 2-1/2″ OD X 1/4″ Wall | B-44-4X | Food, Milk And Dairy Tubing | 50′ Package Length

Original price was: $316.00.Current price is: $95.99.

SKU: AG9ZZ 1482003578916 Categories: Bulk Hose & Covers, Tubing Tags: And Dairy Tubing, Collection-lvl1_All Hose, Collection-lvl2_Tubing, Collection-lvl3_Food and Beverage Tubing, Collection-lvl3_Milk and Dairy Tubing, Filter-All-Brand_Tygon S3, Filter-All-Series_B-44-4X, Filter-All-Specifications and Approvals_Applicable 3-A Sanitary Standards, Filter-All-Specifications and Approvals_Applicable FDA Requirements, Filter-All-Specifications and Approvals_FDA 21 CFR Part 175.300, Filter-All-Specifications and Approvals_NSF 51, Filter-AllHose-Color_Clear/Semi-Clear, Filter-AllHose-ID_2", Filter-AllHose-TubingConstruction_PVC, Filter-IndustrialHoseTubingJoints-OD_2.5", Food-milk-and-dairy-tubing, Id-2, Industrial Plastic Tubing, LegacyProductTypeReplacement_Food, Matrixify1st50kProducts, Milk, Od-2-1-2, PackageLength:50', Pl_tygon-s3-b-44-4x, PriceTiers_SG-Std-50FT, Saint Gobain Tubing, SG_Food-Beverage, SG_Milk-Dairy, Tubing, Tygon S3™ B-44-4X Food Milk and Dairy Tubing, Unit-ft-50, Wall:1/4"

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Other Features:
Application:	Aseptic Filling, Condiment Dispensing, Dairy Processing, Vitamin and Flavor Concentrate Systems, Soft-Serve Dispensing	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	N/A
Reinforcement:	N/A	Cover:	N/A
Temperature Range:	-32 deg. F (35 deg. C) – 165 deg. F (74 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	FDA 21 CFR, 175.300, 3-A, NSF Standard 51
Literature:	Tygon™ S3 Food, Milk and Dairy Tubing Formulation B-44-4X PDF
Smooth, non-porous bore will not trap particulates or promote bacteria growth. Compatible with foods containing a high oil content. Resistant to harsh alkaline cleaners and sanitizers. Excellent alternative to rigid piping systems. Contains no BPA or phthalates WARNING: Tygon™ S3 Food, Milk and Dairy Tubing Formulation B-44-4X is not intended as an implant material.

Part Number	Inside Diameter (in.)	Outside Diameter (in.)	Wall Thickness (in.)	Bend Radius (in.)	Max. Working Pressure at 73 deg. F (PSI)*	Vacuum Rating (in. Hg)	Length
AAA00001	1/32″	3/32″	1/32″	1/8″	100 PSI	29.9 in. Hg	50ft
AAA00002	1/16″	1/8″	1/32″	1/4″	60 PSI	29.9 in. Hg	50ft
AAA00003	1/16″	3/16″	1/16″	1/8″	100 PSI	29.9 in. Hg	50ft
AAA00004	3/32″	5/32″	1/32″	1/2″	43 PSI	29.9 in. Hg	50ft
AAA00006	1/8″	3/16″	1/32″	1/2″	34 PSI	25.0 in. Hg	50ft
AAA00007	1/8″	1/4″	1/16″	3/8″	60 PSI	29.9 in. Hg	50ft
AAA00009	5/32″	7/32″	1/32″	3/4″	28 PSI	16.0 in. Hg	50ft
AAA00010	5/32″	9/32″	1/16″	1/2″	50 PSI	29.9 in. Hg	50ft
AAA00011	3/16″	1/4″	1/32″	1″	25 PSI	11.0 in. Hg	50ft
AAA00012	3/16″	5/16″	1/16″	5/8″	43 PSI	29.9 in. Hg	50ft
AAA00017	1/4″	3/8″	1/16″	1″	34 PSI	25.0 in. Hg	50ft
AAA00018	1/4″	7/16″	3/32″	3/4″	47 PSI	29.9 in. Hg	50ft
AAA00019	1/4″	1/2″	1/8″	5/8″	60 PSI	29.9 in. Hg	50ft
AAA00022	5/16″	7/16″	1/16″	1-3/8″	28 PSI	16.0 in. Hg	50ft
AAA00023	5/16″	1/2″	3/32″	1″	40 PSI	29.9 in. Hg	50ft
AAA00024	5/16″	9/16″	1/8″	7/8″	50 PSI	29.9 in. Hg	50ft
AAA00027	3/8″	1/2″	1/16″	1-3/4″	25 PSI	11.0 in. Hg	50ft
AAA00028	3/8″	9/16″	3/32″	1-3/8″	34 PSI	25.0 in. Hg	50ft
AAA00029	3/8″	5/8″	1/8″	1-1/8″	44 PSI	29.9 in. Hg	50ft
AAA00036	1/2″	5/8″	1/16″	2-7/8″	19 PSI	6.0 in. Hg	50ft
AAA00037	1/2″	11/16″	3/32″	2-1/8″	27 PSI	14.0 in. Hg	50ft
AAA00038	1/2″	3/4″	1/8″	1-3/4″	34 PSI	25.0 in. Hg	50ft
AAA00039	1/2″	13/16″	5/32″	1-1/2″	40 PSI	29.9 in. Hg	50ft
AAA00045	5/8″	13/16″	3/32″	3″	23 PSI	9.0 in. Hg	50ft
AAA00046	5/8″	7/8″	1/8″	2-3/8″	29 PSI	16.0 in. Hg	50ft
AAA00047	5/8″	5/16″	5/32″	2″	35 PSI	26.0 in. Hg	50ft
AAA00053	3/4″	1″	1/8″	3-1/4″	25 PSI	11.0 in. Hg	50ft
AAA00054	3/4″	1-1/16″	5/32″	2-3/4″	30 PSI	18.0 in. Hg	50ft
AAA00055	3/4″	1-1/8″	3/16″	2-3/8″	34 PSI	26.0 in. Hg	50ft
AAA00057	3/4″	1-1/4″	1/4″	2″	43 PSI	29.9 in. Hg	50ft
AAA00059	7/8″	1-1/8″	1/8″	4-1/8″	22 PSI	8.0 in. Hg	50ft
AAA00062	1″	1-1/4″	1/8″	5-1/8″	20 PSI	6.0 in. Hg	50ft
AAA00063	1″	1-5/16″	5/32″	4-3/8″	24 PSI	10 in. Hg	50ft
AAA00064	1″	1-3/8″	3/16″	3-3/4″	27 PSI	14.0 in. Hg	50ft
AAA00065	1″	1-1/2″	1/4″	3″	34 PSI	25.0 in. Hg	50ft
AAA00067	1-1/8″	1-3/8″	1/8″	6-1/4″	18 PSI	5.0 in. Hg	50ft
AAA00070	1-1/4″	1-5/8″	3/16″	5-1/2″	23 PSI	9.0 in. Hg	50ft
AAA00074	1-1/2″	2″	1/4″	5-7/8″	25 PSI	11.0 in. Hg	50ft
AAA00078	2″	2-1/2″	1/4″	9-3/8″	19 PSI	6.0 in. Hg	50ft

* Working pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599 Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user’s responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available “by the foot” through our site.
