Sale!

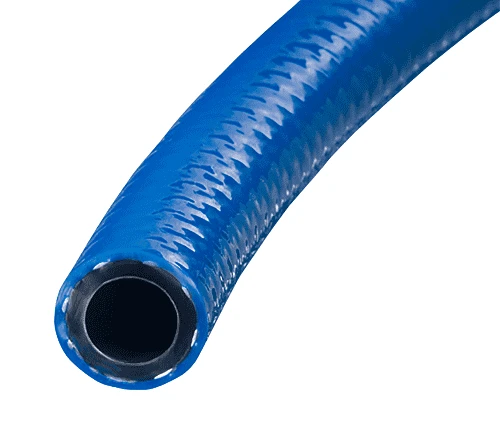

A4176-06X500 Kuri-Tec By Kuriyama | A4176 Series | Conductive Air Hose With Polyurethane Cover | Blue | 1/4″ ID | .500″ OD | PVC | 500ft Length

Original price was: $310.00.Current price is: $97.99.

SPECIFICATIONS

Other Features:
Application:	In-plant air service where static dissipation is required, Air lines for painting equipment, Applications requiring the use of grounded pneumatic tools.	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Co-extruded electrically-conductive PVC.
Reinforcement:	Spiral polyester yarn.	Cover:	Blue polyurethane for superior abrasion resistance.
Temperature Range:	+14 deg. F (-10 deg. C) to +150 deg. F (+65 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	N/A
Continuous flexible conductive liner assures contact with fittings, without special preparation or clamping techniques. No wires to break when the hose is flexed. Distinctive color and branding allows easy identification. Silicone-free. One-piece lengths. Branded as “Conductive Air”. Excellent chemical and abrasion resistance afforded by polyurethane cover. Non-marking non-perforated cover.
Electrical Data:
Resistance is less than 100,000 ohms per foot when tested with an ohmmeter, with normal open-circuit output voltage of 500 VDC. Note: Conductivity is through the inner liner only. To dissipate static electricity, the hose must be fitted with a grounded conductive coupling. When measured through the wall of the hose, the product demonstrates electrical insulation.

Part Number	Nominal ID		Nominal OD		Working Pressure		Standard Lengths	Approx Weight per Pkg
	(in.)	(mm)	(in.)	(mm)	@ 70 deg. F (20 deg. C) (PSI)	@ 122 deg. F (50 deg. C) (PSI)
A4176-04X100	1/4″	6.5mm	.500″	12.7mm	300 PSI	180 PSI	100 ft Coil	8 lbs.
A4176-04X500	1/4″	6.5mm	.500″	12.7mm	300 PSI	180 PSI	500 ft Reel	44 lbs.
A4176-06X100*	3/8″	9.5mm	.625″	15.9mm	300 PSI	180 PSI	100 ft Coil	11 lbs.
A4176-06X500*	3/8″	9.5mm	.625″	15.9mm	300 PSI	180 PSI	500 ft Reel	58 lbs.
A4176-08X100	1/2″	12.7mm	.813″	20.7mm	300 PSI	180 PSI	100 ft Coil	18 lbs.
A4176-08X500	1/2″	12.7mm	.813″	20.7mm	300 PSI	180 PSI	500 ft Reel	93 lbs.
