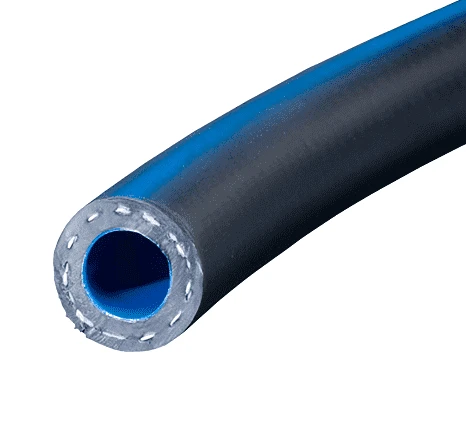

A4143-06X500 Kuri-Tec By Kuriyama | A4143 Series | Medium Pressure Paint Fluid Transfer Hose | Black | 3/8″ ID | .690″ OD | 500ft Length
Original price was: $397.00.$95.99Current price is: $95.99.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
SPECIFICATIONS
| Application: | Lower pressure transfer of enamels, lacquers and other finishes, Robotic paint spraying equipment, Low temperature transfer of chemicals, Manual paint spraying, Spraying of automobile “rustproofing” fluids. | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Co-extruded blue LLDPE/rubber blend |
| Reinforcement: | High tensile strength yarn. | Cover: | Black rubber blend compound; Branded “Paint Fluid” |
| Temperature Range: | -40 deg. F (-40 deg. C) to +125 deg. F (+52 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | RoHS(15) |
| Other Features: | |||
| |||
| Part Number | Nominal ID | Nominal OD | Working Pressure | Standard Lengths | Approx Weight per Pkg | |||
|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | @ 70 deg. F (20 deg. C) (PSI) | @ 122 deg. F (50 deg. C) (PSI) | |||
| A4143-04X100 | 1/4″ | 6.5mm | .500″ | 12.7mm | 175 PSI | 85 PSI | 100 ft Coil | 7 lbs. |
| A4143-04X500 | 1/4″ | 6.5mm | .500″ | 12.7mm | 175 PSI | 85 PSI | 500 ft Reel | 36 lbs. |
| A4143-06X100 | 3/8″ | 9.5mm | .690″ | 17.3mm | 175 PSI | 85 PSI | 100 ft Coil | 12 lbs. |
| A4143-06X500 | 3/8″ | 9.5mm | .690″ | 17.3mm | 175 PSI | 85 PSI | 500 ft Reel | 60 lbs. |
| A4143-08X100 | 1/2″ | 12.7mm | .875″ | 22.2mm | 175 PSI | 85 PSI | 100 ft Coil | 18 lbs. |
| A4143-08X500 | 1/2″ | 12.7mm | .875″ | 22.2mm | 175 PSI | 85 PSI | 500 ft Reel | 93 lbs. |
| A4143-12X100 | 3/4″ | 19.0mm | 1.188″ | 30.2mm | 150 PSI | 75 PSI | 100 ft Coil | 28 lbs. |
| A4143-12X300 | 3/4″ | 19.0mm | 1.188″ | 30.2mm | 150 PSI | 75 PSI | 300 ft Coil | 85 lbs. |
| A4143-16X100 | 1″ | 25.4mm | 1.500″ | 38.1mm | 125 PSI | 60 PSI | 100 ft Coil | 43 lbs. |
| A4143-16X200 | 1″ | 25.4mm | 1.500″ | 38.1mm | 125 PSI | 60 PSI | 200 ft Coil | 86 lbs. |
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
