Sale!

A37-4x10 By Couplamatic | A Series Coupling | 1/4" Hose ID X M16x1.5 Thread DIN Light Universal Seat Female Swivel | Straight

A37-4×10 By Couplamatic | A Series Coupling | 1/4″ Hose ID X M16x1.5 Thread DIN Light Universal Seat Female Swivel | Straight

Original price was: $12.00.Current price is: $8.40.

SKU: AG9ZZ 7356029534373 Categories: Fittings & Clamps, Hydraulic Hose Fittings Tags: A Series Couplings, A Series DIN Light Fittings, A Series DIN Light Universal Seat - Female Swivel, Collection-lvl1_All Hose Ends, Collection-lvl2_Ends for Hydraulic Hose, Collection-lvl3_1 and 2 Wire Hydraulic Hose Fittings, Couplamatic Hydraulic Couplings, Couplamatic Hydraulics, Ends-for-hydraulic-hose, Female-swivel, LegacyProductTypeReplacement_Female Swivel, Material_trivalent-zinc, Matrixify2nd50kProducts, Shape_straight, Thread-type_din-light

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Description:
A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI’s recommended crimp specification. Trivalent Zinc Plating.

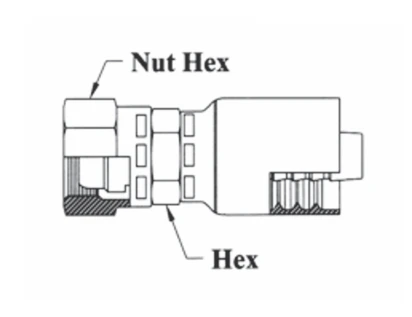

Part Number	Hose ID	Tube Size	Thread Size	Hex Size	Nut Hex	Cross Reference Part Numbers
Part Number	Hose ID	Tube Size	Thread Size	Hex Size	Nut Hex	Aeroquip TTC	Weatherhead Z
A37-4×8	1/4″	8mm	M14x1.5	5/8″	11/16″	1A6DL4	04Z-08C
A37-4×10	1/4″	10mm	M16x1.5	5/8″	3/4″	1A8DL4	04Z-10C
A37-6×10	3/8″	10mm	M16x1.5	11/16″	3/4″	1A8DL6	06Z-10C
A37-6×12	3/8″	12mm	M18x1.5	11/16″	7/8″	1A10DL6	06Z-12C
A37-8×15	1/2″	15mm	M22x1.5	7/8″	1-1/16″	1A12DL8	08Z-15C

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer.
Please check hose cut off factor, tube length, and tube drop carefully.
