Sale!
A15-8x8 By Couplamatic | A Series Coupling | 1/2" Hose ID X 3/4x16 Thread ORB Male Swivel | 90° Elbow

A15-8×8 By Couplamatic | A Series Coupling | 1/2″ Hose ID X 3/4×16 Thread ORB Male Swivel | 90° Elbow

Original price was: $14.87.Current price is: $10.41.

SKU: AG9ZZ 7356020949157 Categories: , Tags: , , , , , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers
Description:
  • A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp
    equipment can produce crimp dimensions within CSI’s recommended crimp specification. Trivalent Zinc Plating.

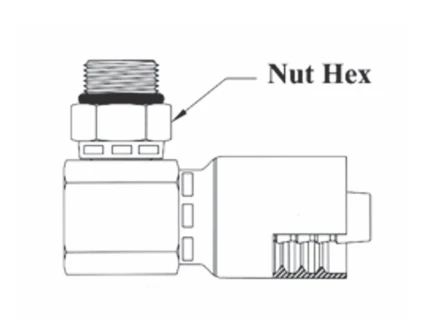

Part Number Hose ID Thread Size Tube OD Nut Hex Cross Reference Part Numbers
Aeroquip TTC Weatherhead Z
A15-6×6 3/8″ 9/16×18 3/8″ 3/4″ 1AA6SBB6 06Z-R66
A15-6×8 3/8″ 3/4×16 1/2″ 7/8″ 1AA8SBB6 06Z-R68
A15-8×8 1/2″ 3/4×16 1/2″ 7/8″ 1AA8SBB8 08Z-R68
A15-8×10 1/2″ 7/8×14 5/8″ 1″ 1AA10SBB8 08Z-R70

– Swivel for installation purposes only. Leakage may occur at low pressure.

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer.
Please check hose cut off factor, tube length, and tube drop carefully.
