A09-4x4 By Couplamatic | A Series Coupling | 1/4" Hose ID X 7/16x20 Thread JIC 37° Female Swivel | Straight | Pack Of 20

A09-4×4 By Couplamatic | A Series Coupling | 1/4″ Hose ID X 7/16×20 Thread JIC 37° Female Swivel | Straight | Pack Of 20

Original price was: $71.21.Current price is: $49.85.

SKU: AG9ZZ 7356019343525 Categories: Fittings & Clamps, Hydraulic Hose Fittings Tags: A Series Couplings, A Series JIC 37° - Female Swivel, A Series JIC Fittings, Collection-lvl1_All Hose Ends, Collection-lvl2_Ends for Hydraulic Hose, Collection-lvl3_1 and 2 Wire Hydraulic Hose Fittings, Couplamatic Hydraulic Couplings, Couplamatic Hydraulics, Ends-for-hydraulic-hose, Female-swivel, LegacyProductTypeReplacement_Female Swivel, Material_trivalent-zinc, Matrixify2nd50kProducts, Shape_straight, Thread-type_jic

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Description:
A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI’s recommended crimp specification. Trivalent Zinc Plating.

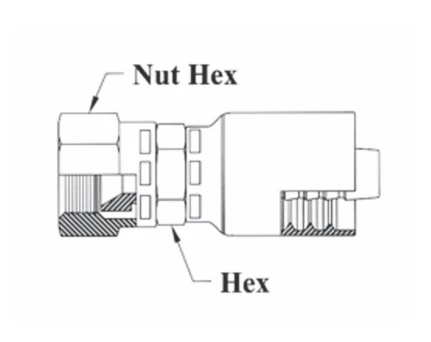

Part Number	Hose ID	Thread Size	Tube OD	Hex Size	Nut Hex	Cross Reference Part Numbers
Part Number	Hose ID	Thread Size	Tube OD	Hex Size	Nut Hex	Aeroquip TTC	Weatherhead Z
A09-4×4	1/4″	7/16×20	1/4″	9/16″	9/16″	1AA4FJ4	04Z-604
A09-4×5	1/4″	1/2×20	5/16″	9/16″	5/8″	1AA5FJ4	04Z-605
A09-4×6	1/4″	9/16×18	3/8″	9/16″	11/16″	1AA6FJ4	04Z-606
A09-6×4	3/8″	7/16×20	1/4″	11/16″	9/16″	1AA4FJ6	06Z-604
A09-6×6	3/8″	9/16×18	3/8″	11/16″	11/16″	1AA6FJ6	06Z-606
A09-6×8	3/8″	3/4×16	1/2″	11/16″	7/8″	1AA8FJ6	06Z-608
A09-6×10	3/8″	7/8×14	5/8″	7/8″	1″	1AA10FJ6	06Z-610
A09-8×6	1/2″	9/16×18	3/8″	7/8″	11/16″	1AA6FJ8	08Z-606
A09-8×8	1/2″	3/4×16	1/2″	7/8″	7/8″	1AA8FJ8	08Z-608
A09-8×10	1/2″	7/8×14	5/8″	7/8″	1″	1AA10FJ8	08Z-610
A09-8×12	1/2″	1-1/16×12	3/4″	1-1/8″	1-1/4″	1AA12FJ8	08Z-612
A09-10×10	5/8″	7/8×14	5/8″	15/16″	1″	1AA10FJ10	10Z-610
A09-10×12	5/8″	1-1/16×12	3/4″	1-1/8″	1-1/4″	1AA12FJ10	10Z-612
A09-12×10	3/4″	7/8×14	5/8″	1-1/16″	1″	1AA10FJ12	12Z-610
A09-12×12	3/4″	1-1/16×12	3/4″	1-1/8″	1-1/4″	1AA12FJ12	12Z-612
A09-12×16	3/4″	1-5/16×12	1″	1-3/8″	1-1/2″	1AA16FJ12	12Z-616
A09-16×12	1″	1-1/16×12	3/4″	1-3/8″	1-1/4″	1AA12FJ16	–
A09-16×16	1″	1-5/16×12	1″	1-3/8″	1-1/2″	1AA16FJ16	16Z-616
A09-16×20	1″	1-5/8×12	1-1/4″	1-11/16″	2″	1AA20FJ16	16Z-620
A09-20×20	1-1/4″	1-5/8×12	1-1/4″	1-11/16″	2″	1AV20FJ20	20Z-620

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer.
Please check hose cut off factor, tube length, and tube drop carefully.
