A04-8×8 By Couplamatic | A Series Coupling | 1/2″ Hose ID X 1/2-14 Thread Male Swivel NPTF | Straight | Pack Of 20

Original price was: $123.67.Current price is: $86.57.

SKU: AG9ZZ 7356013314213 Categories: Fittings & Clamps, Hydraulic Hose Fittings Tags: A Series Couplings, A Series NPTF - Male Swivel, A Series NPTF Fittings, Collection-lvl1_All Hose Ends, Collection-lvl2_Ends for Hydraulic Hose, Collection-lvl3_1 and 2 Wire Hydraulic Hose Fittings, Couplamatic Hydraulic Couplings, Couplamatic Hydraulics, Ends-for-hydraulic-hose, LegacyProductTypeReplacement_Male Swivel, Male-swivel, Material_trivalent-zinc, Matrixify2nd50kProducts, Shape_straight, Thread-type_nptf

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Description:
A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI’s recommended crimp specification. Trivalent Zinc Plating.

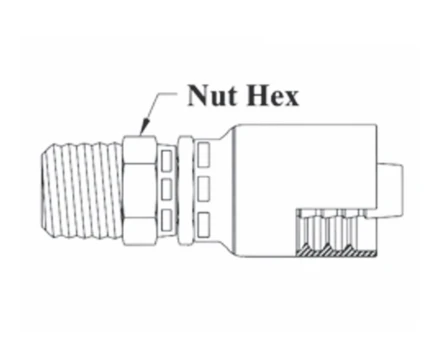

Part Number	Hose ID	Pipe Size	Thread Size	Nut Hex	Cross Reference Part Numbers
Part Number	Hose ID	Pipe Size	Thread Size	Nut Hex	Aeroquip TTC	Weatherhead Z
A04-4×2	1/4″	1/8″	1/8-27	5/8″	–	04Z-J02
A04-4×4	1/4″	1/4″	1/4-18	5/8″	1AA4PS4	04Z-J04
A04-4×6	1/4″	3/8″	3/8-18	3/4″	1AA4PS6	–
A04-6×4	3/8″	1/4″	1/4-18	3/4″	1AA4PS6	06Z-J04
A04-6×6	3/8″	3/8″	3/8-18	3/4″	1AA6PS6	06Z-J06
A04-6×8	3/8″	1/2″	1/2-14	7/8″	1AA8PS6	06Z-J08
A04-8×6	1/2″	3/8″	3/8-18	3/4″	–	08Z-J06
A04-8×8	1/2″	1/2″	1/2-14	7/8″	1AA8PS8	08Z-J08
A04-12×12	3/4″	3/4″	3/4-14	1-1/4″	1AA12PS12	12Z-J12
A04-16×16	1″	1″	1-11-1/2	1-3/8″	1AA16PS16	16Z-J16

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer.
Please check hose cut off factor, tube length, and tube drop carefully.

-Swivel for installation purposes only. Leakage may occur at low pressure.
