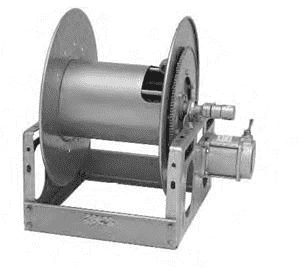

A-6018-30-31 By Hannay | 6000 Series | Air Powered Rewind Reel

Original price was: $386.00.Current price is: $98.99.

SKU: AG9ZZ 1476866670628 Categories: Hose Equipment, Tools & Equipment Tags: Air Powered, All-categories, Collection-lvl1_All Equipment, Collection-lvl2_Hose Equipment, Collection-lvl3_Hose Reels, Hannay Hose Reels, Hose-equipment, LegacyProductTypeReplacement_All Categories, Matrixify1st50kProducts, Reels for Hose, Series 6000 - Manual or Power Rewind Reels

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Applications:
Fuel Dispensing Spray Operations Fire Protection
Features:
Heavy-duty reel for longer lengths of hose. Chain and sprocket drive powered by a compressed air motor. Power rewind reels feature a comet brake. Standard inlet a 90 deg. ball bearing swivel joint 1″ female NPT threads. Standard outlet 1″ female NPT threads. Standard inlet, outlet riser and hub assembly are steel. Pressures to 2000 psi (138 bar). Temperatures from -60 deg. F to +250 deg. F (-51 deg. C to +121 deg. C). NOTICE: A Flexible Connector must be used between the inlet pipe and the inlet swivel joint.

Model Number	Hose Capacity of Reel (Ft.)				Approx. Weight (Lbs.)	Reel Dimensions (In.)
	I.D. (in)	1/2″	3/4″	1″
	O.D. (in)	7/8″	1-9/32″	1-9/16″		A	B	D	E	F Crank	F Power	G	H	X	Y
A-6024-19-21		235′ length	125′ length	60′ length	105 lbs.	21″	15.5″	20.5″	18.75″	25.38″	28.5″	21.5″	12.12″	13″	16.75″
A-6032-19-21		350′ length	200′ length	100′ length	122 lbs.	29.5″	24″	20.5″	18.75″	33.88″	37″	21.5″	12.12″	21.5″	16.75″
A-6024-23-24		450′ length	185′ length	100′ length	112 lbs.	21″	15.5″	20.5″	22.75″	25.38″	28.5″	23.5″	12.12″	13″	16.75″
A-6030-23-24		N/A	250′ length	150′ length	125 lbs.	27.5″	22″	20.5″	22.75″	31.88″	35″	23.5″	12.12″	19.5″	16.75″
A-6038-23-24		N/A	350′ length	200′ length	140 lbs.	35″	29.5″	20.5″	22.75″	39.38″	42.5″	23.5″	12.12″	27″	16.75″
A-6016-25-26		285′ length	100′ length	60′ length	108 lbs.	13″	7.5″	25.5″	24.75″	17.38″	20.5″	27.88″	15.5″	7.75″	21.75″
A-6022-25-26		500′ length	200′ length	100′ length	120 lbs.	19″	13.5″	25.5″	24.75″	23.38″	26.5″	27.88″	15.5″	11″	21.75″
A-6028-25-26		N/A	300′ length	200′ length	133 lbs.	25.5″	20″	25.5″	24.75″	29.88″	33″	27.88″	15.5″	17.5″	21.75″
A-6018-30-31		450′ length	235′ length	135′ length	121 lbs.	15″	9.5″	25.5″	28.75″	19.38″	22.5″	29.88″	15.5″	7″	21.75″
A-6024-30-31		N/A	400′ length	200′ length	133 lbs.	21″	15.5″	25.5″	28.75″	25.38″	28.5″	29.88″	15.5″	13″	21.75″
A-6028-30-31		N/A	500′ length	265′ length	141 lbs.	25.5″	20″	25.5″	28.75″	29.88″	33″	29.88″	15.5″	17.5″	21.75″
A-6030-30-31†		N/A	550′ length	300′ length	145 lbs.	27.5″	22″	25.5″	28.75″	31.88″	35″	29.88″	15.5″	19.5″	21.75″
A-6028-33-34†		N/A	600′ length	350′ length	149 lbs.	25″	20″	31.5″	31.75″	29.62″	32.75″	33.62″	17.75″	17.5″	27.75″
