Sale!

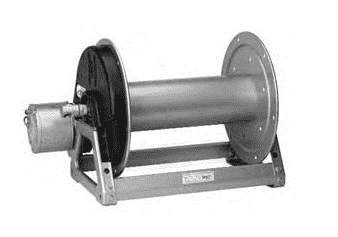

A-1526-17-18 By Hannay | 1500 Series | Air Powered Rewind Reel

A-1526-17-18 By Hannay | 1500 Series | Air Powered Rewind Reel

Original price was: $389.00.Current price is: $97.99.

SKU: AG9ZZ 1476859232292 Categories: , Tags: , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers
Applications:
  • Lawn Care
  • Pest Control
  • Pressure Washing
  • Agriculture
  • Steam Cleaning
Features:
  • Lightweight compact reels designed for long lengths of hose in power rewind.
  • Direct crank rewind is permanently attached.
  • Chain and sprocket drive powered by a compressed air motor.
  • Standard inlet 90 deg. ball bearing swivel joint 1/2″ female NPT threads.
  • Standard outlet 1/2″ female NPT threads.
  • Pressures to 3000 psi (207 bar)
  • Temperatures from +20 deg. F to +400 deg. F (-7 deg. C to +204 deg. C).
  • NOTICE: A Flexible Connector must be used between the inlet pipe and the inlet swivel joint.
Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.) Reel Dimensions (In.)
I.D. (in) 1/4″ 3/8″ 1/2″ 5/8″ A-1526-17-18 By Hannay | 1500 Series | Air Powered Rewind Reel -Hose Ware House 1500series add large
O.D. (in) 5/8″ 3/4″ 7/8″ 1″ A B E Crank E Power F Crank F Power X
A-1514-17-18 175′ length 125′ length 75′ length 50′ length 42 lbs. 11″ 6″ 16.5″ 19″ 18.5″ 16.5″ 9.5″
A-1520-17-18 350′ length 275′ length 175′ length 125′ length 44 lbs. 17″ 12″ 16.5″ 19″ 24.5″ 22.5″ 15.5″
A-1526-17-18 500′ length 400′ length 300′ length 200′ length 46 lbs. 23″ 18″ 16.5″ 19″ 30.5″ 28.5″ 21.5″
A-1530-17-18 N/A 500′ length 375′ length 275′ length 48 lbs. 27″ 22″ 16.5″ 19″ 34.5″ 32.5″ 25.5″
A-1536-17-18 N/A N/A 475′ length 350′ length 50 lbs. 33″ 28″ 16.5″ 19″ 40.5″ 38.5″ 31.5″
