9SS8MJ8XMP50-Ni-V By Super Swivel | 7423-Ni-V | 3/4-16 Male 37° JIC X 1/2-14 Male Pipe NPTF | 0.297" Through Hole | 90° Elbow | Electroless Nickel | Viton Seal
9SS8MJ8XMP50-Ni-V By Super Swivel | 7423-Ni-V | 3/4-16 Male 37° JIC X 1/2-14 Male Pipe NPTF | 0.297" Through Hole | 90° Elbow | Electroless Nickel | Viton Seal - Image 2
9SS8MJ8XMP50-Ni-V By Super Swivel | 7423-Ni-V | 3/4-16 Male 37° JIC X 1/2-14 Male Pipe NPTF | 0.297" Through Hole | 90° Elbow | Electroless Nickel | Viton Seal -Hose Ware House 9ss4mj4xmp25 z v 732bcd0e 497b 48d5 9c25 9ba40eb92df2

9SS8MJ8XMP50-Ni-V By Super Swivel | 7423-Ni-V | 3/4-16 Male 37° JIC X 1/2-14 Male Pipe NPTF | 0.297″ Through Hole | 90° Elbow | Electroless Nickel | Viton Seal

Original price was: $56.99.Current price is: $39.89.

SKU: AG9ZZ 1482731225124 Categories: , Tags: , , , , , , , , , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers
Features:
  • 90° Swivels rotating joints provide free rotation on one axis with a right-angle change of path.
  • They reduce the complexity of hose lines providing for minimal friction and allowing free movement of hoses and piping.
  • 90° Super Swivels allow for sharp corners with reduced risk of kinks and flow restriction and free rotation.
  • Super Swivels ball bearing race design withstands heavy side loads preventing premature seal wear and leaks.
  • Super Swivels connect directly to hose lines without adapters reducing overall costs of hydraulics.
  • No Kinks – No Hose Twisting.
Notes:
  • Super Swivels are not recommended for breathing air/oxygen or steam.
  • All swivels have 4 to 1 proof pressure, except 10,000 PSI = 3 to 1 proof pressure.
  • Any series stem will fit with the same series body.
Base Material and Plating:
  • Super Swivels are manufactured from Carbon Steel or 304 and 440C Stainless Steel
  • Carbon Steel Zinc (Z) Plating is recommended for non-corrosive applications, i.e. hydraulic, pneumatic, etc.
  • Carbon Steel Nickel (NI) Plating is recommended for mildly corrosive environments, i.e. water, mild chemicals, solvents, etc.
Seal Material:
  • (V) Viton® (Fluorocarbon) – For most petroleum based applications. (-15 deg. F to 250 deg. F)
  • (AL) Aflas® (Tetrafluoroethylene-propylene copolymer) – Better resistance to many individual chemicals. For service in high temperature environments. (Low temperature limitations.) (+32 deg. F to 400 deg. F)
  • (ETP) Extreme Viton® – High resistance to many individual chemicals. (-6ºF to 437ºF)
9SS8MJ8XMP50-Ni-V By Super Swivel | 7423-Ni-V | 3/4-16 Male 37° JIC X 1/2-14 Male Pipe NPTF | 0.297" Through Hole | 90° Elbow | Electroless Nickel | Viton Seal -Hose Ware House 9SS4MJ4XMP25 Z

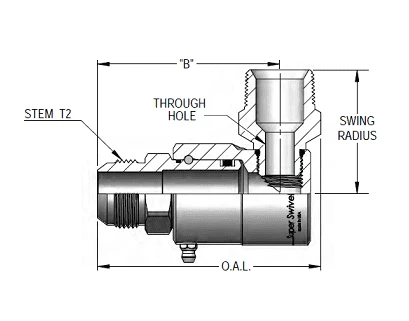

Part Number Material Seal Overall
Length		 Dim.
B		 Wrench/Hex Port T1 Stem T2 SWG.
Radius		 Max
PSIG		 Through
Hole
9SS4MJ4XMP25-Z-V Zinc Viton 2.837″ 2.325″ 0.625″ 1/4-18 NPTF 7/16-20 UN 1.440″ 3500 PSIG 0.172″
9SS4MJ4XMP25-Z-AL Zinc AFLAS 2.837″ 2.325″ 0.625″ 1/4-18 NPTF 7/16-20 UN 1.440″ 3500 PSIG 0.172″
9SS4MJ4XMP25-Ni-V Electroless Nickel Viton 2.837″ 2.325″ 0.625″ 1/4-18 NPTF 7/16-20 UN 1.440″ 3500 PSIG 0.172″
9SS4MJ4XMP25-Ni-AL Electroless Nickel AFLAS 2.837″ 2.325″ 0.625″ 1/4-18 NPTF 7/16-20 UN 1.440″ 3500 PSIG 0.172″

9SS4MJ6XMP25-Z-V Zinc Viton 2.857″ 2.345″ 0.625″ 1/4-18 NPTF 9/16-18 UN 1.440″ 3500 PSIG 0.250″
9SS4MJ6XMP25-Z-AL Zinc AFLAS 2.857″ 2.345″ 0.625″ 1/4-18 NPTF 9/16-18 UN 1.440″ 3500 PSIG 0.250″
9SS4MJ6XMP25-Z-ETP Zinc Extreme Viton® 2.857″ 2.345″ 0.625″ 1/4-18 NPTF 9/16-18 UN 1.440″ 3500 PSIG 0.250″
9SS4MJ6XMP25-Ni-V Electroless Nickel Viton 2.857″ 2.345″ 0.625″ 1/4-18 NPTF 9/16-18 UN 1.440″ 3500 PSIG 0.250″
9SS4MJ6XMP25-Ni-AL Electroless Nickel AFLAS 2.857″ 2.345″ 0.625″ 1/4-18 NPTF 9/16-18 UN 1.440″ 3500 PSIG 0.250″
9SS4MJ6XMP25-Ni-ETP Electroless Nickel Extreme Viton® 2.857″ 2.345″ 0.625″ 1/4-18 NPTF 9/16-18 UN 1.440″ 3500 PSIG 0.250″

9SS4MJ6XMP38-Z-V Zinc Viton 2.857″ 2.345″ 0.625″ 3/8-18 NPTF 9/16-18 UN 1.440″ 3500 PSIG 0.250″
9SS4MJ6XMP38-Z-AL Zinc AFLAS 2.857″ 2.345″ 0.625″ 3/8-18 NPTF 9/16-18 UN 1.440″ 3500 PSIG 0.250″
9SS4MJ6XMP38-Z-ETP Zinc Extreme Viton® 2.857″ 2.345″ 0.625″ 3/8-18 NPTF 9/16-18 UN 1.440″ 3500 PSIG 0.250″
9SS4MJ6XMP38-Ni-V Electroless Nickel Viton 2.857″ 2.345″ 0.625″ 3/8-18 NPTF 9/16-18 UN 1.440″ 3500 PSIG 0.250″
9SS4MJ6XMP38-Ni-AL Electroless Nickel AFLAS 2.857″ 2.345″ 0.625″ 3/8-18 NPTF 9/16-18 UN 1.440″ 3500 PSIG 0.250″
9SS4MJ6XMP38-Ni-ETP Electroless Nickel Extreme Viton® 2.857″ 2.345″ 0.625″ 3/8-18 NPTF 9/16-18 UN 1.440″ 3500 PSIG 0.250″

9SS8MJ8XMP38-Z-V Zinc Viton 3.060″ 2.513″ 1.000″ 3/8-18 NPTF 3/4-16 UN 1.556″ 3500 PSIG 0.297″
9SS8MJ8XMP38-Z-AL Zinc AFLAS 3.060″ 2.513″ 1.000″ 3/8-18 NPTF 3/4-16 UN 1.556″ 3500 PSIG 0.297″
9SS8MJ8XMP38-Z-ETP Zinc Extreme Viton® 3.060″ 2.513″ 1.000″ 3/8-18 NPTF 3/4-16 UN 1.556″ 3500 PSIG 0.297″
9SS8MJ8XMP38-Ni-V Electroless Nickel Viton 3.060″ 2.513″ 1.000″ 3/8-18 NPTF 3/4-16 UN 1.556″ 3500 PSIG 0.297″
9SS8MJ8XMP38-Ni-AL Electroless Nickel AFLAS 3.060″ 2.513″ 1.000″ 3/8-18 NPTF 3/4-16 UN 1.556″ 3500 PSIG 0.297″
9SS8MJ8XMP38-Ni-ETP Electroless Nickel Extreme Viton® 3.060″ 2.513″ 1.000″ 3/8-18 NPTF 3/4-16 UN 1.556″ 3500 PSIG 0.297″

9SS8MJ8XMP50-Z-V Zinc Viton 3.060″ 2.513″ 1.000″ 1/2-14 NPTF 3/4-16 UN 1.848″ 3500 PSIG 0.297″
9SS8MJ8XMP50-Z-AL Zinc AFLAS 3.060″ 2.513″ 1.000″ 1/2-14 NPTF 3/4-16 UN 1.848″ 3500 PSIG 0.297″
9SS8MJ8XMP50-Z-ETP Zinc Extreme Viton® 3.060″ 2.513″ 1.000″ 1/2-14 NPTF 3/4-16 UN 1.848″ 3500 PSIG 0.297″
9SS8MJ8XMP50-Ni-V Electroless Nickel Viton 3.060″ 2.513″ 1.000″ 1/2-14 NPTF 3/4-16 UN 1.848″ 3500 PSIG 0.297″
9SS8MJ8XMP50-Ni-AL Electroless Nickel AFLAS 3.060″ 2.513″ 1.000″ 1/2-14 NPTF 3/4-16 UN 1.848″ 3500 PSIG 0.297″
9SS8MJ8XMP50-Ni-ETP Electroless Nickel Extreme Viton® 3.060″ 2.513″ 1.000″ 1/2-14 NPTF 3/4-16 UN 1.848″ 3500 PSIG 0.297″

9SS8MJ10XMP38-Z-V Zinc Viton 3.160″ 2.613″ 1.000″ 3/8-18 NPTF 7/8-14 UN 1.556″ 3500 PSIG 0.250″
9SS8MJ10XMP38-Z-AL Zinc AFLAS 3.160″ 2.613″ 1.000″ 3/8-18 NPTF 7/8-14 UN 1.556″ 3500 PSIG 0.250″
9SS8MJ10XMP38-Z-ETP Zinc Extreme Viton® 3.160″ 2.613″ 1.000″ 3/8-18 NPTF 7/8-14 UN 1.556″ 3500 PSIG 0.250″
9SS8MJ10XMP38-Ni-V Electroless Nickel Viton 3.160″ 2.613″ 1.000″ 3/8-18 NPTF 7/8-14 UN 1.556″ 3500 PSIG 0.250″
9SS8MJ10XMP38-Ni-AL Electroless Nickel AFLAS 3.160″ 2.613″ 1.000″ 3/8-18 NPTF 7/8-14 UN 1.556″ 3500 PSIG 0.250″
9SS8MJ10XMP38-Ni-ETP Electroless Nickel Extreme Viton® 3.160″ 2.613″ 1.000″ 3/8-18 NPTF 7/8-14 UN 1.556″ 3500 PSIG 0.250″

9SS8MJ10XMP50-Z-V Zinc Viton 3.160″ 2.613″ 1.000″ 1/2-14 NPTF 7/8-14 UN 1.848″ 3500 PSIG 0.297″
9SS8MJ10XMP50-Z-AL Zinc AFLAS 3.160″ 2.613″ 1.000″ 1/2-14 NPTF 7/8-14 UN 1.848″ 3500 PSIG 0.297″
9SS8MJ10XMP50-Z-ETP Zinc Extreme Viton® 3.160″ 2.613″ 1.000″ 1/2-14 NPTF 7/8-14 UN 1.848″ 3500 PSIG 0.297″
9SS8MJ10XMP50-Ni-V Electroless Nickel Viton 3.160″ 2.613″ 1.000″ 1/2-14 NPTF 7/8-14 UN 1.848″ 3500 PSIG 0.297″
9SS8MJ10XMP50-Ni-AL Electroless Nickel AFLAS 3.160″ 2.613″ 1.000″ 1/2-14 NPTF 7/8-14 UN 1.848″ 3500 PSIG 0.297″
9SS8MJ10XMP50-Ni-ETP Electroless Nickel Extreme Viton® 3.160″ 2.613″ 1.000″ 1/2-14 NPTF 7/8-14 UN 1.848″ 3500 PSIG 0.297″

9SS12MJ12XMP75-Z-V Zinc Viton 3.525″ 2.885″ 1.125″ 3/4-14 NPTF 1-1/16-12 UN 1.998″ 3500 PSIG 0.484″
9SS12MJ12XMP75-Z-AL Zinc AFLAS 3.525″ 2.885″ 1.125″ 3/4-14 NPTF 1-1/16-12 UN 1.998″ 3500 PSIG 0.484″
9SS12MJ12XMP75-Z-ETP Zinc Extreme Viton® 3.525″ 2.885″ 1.125″ 3/4-14 NPTF 1-1/16-12 UN 1.998″ 3500 PSIG 0.484″
9SS12MJ12XMP75-Ni-V Electroless Nickel Viton 3.525″ 2.885″ 1.125″ 3/4-14 NPTF 1-1/16-12 UN 1.998″ 3500 PSIG 0.484″
9SS12MJ12XMP75-Ni-AL Electroless Nickel AFLAS 3.525″ 2.885″ 1.125″ 3/4-14 NPTF 1-1/16-12 UN 1.998″ 3500 PSIG 0.484″
9SS12MJ12XMP75-Ni-ETP Electroless Nickel Extreme Viton® 3.525″ 2.885″ 1.125″ 3/4-14 NPTF 1-1/16-12 UN 1.998″ 3500 PSIG 0.484″

9SS16MJ16XMP100-Z-V Zinc Viton 4.290″ 3.482″ 1.375″ 1-11-1/2 NPTF 1-5/16-12 UN 2.370″ 3500 PSIG 0.550″
9SS16MJ16XMP100-Z-AL Zinc AFLAS 4.290″ 3.482″ 1.375″ 1-11-1/2 NPTF 1-5/16-12 UN 2.370″ 3500 PSIG 0.550″
9SS16MJ16XMP100-Z-ETP Zinc Extreme Viton® 4.290″ 3.482″ 1.375″ 1-11-1/2 NPTF 1-5/16-12 UN 2.370″ 3500 PSIG 0.550″
9SS16MJ16XMP100-Ni-V Electroless Nickel Viton 4.290″ 3.482″ 1.375″ 1-11-1/2 NPTF 1-5/16-12 UN 2.370″ 3500 PSIG 0.550″
9SS16MJ16XMP100-Ni-AL Electroless Nickel AFLAS 4.290″ 3.482″ 1.375″ 1-11-1/2 NPTF 1-5/16-12 UN 2.370″ 3500 PSIG 0.550″
9SS16MJ16XMP100-Ni-ETP Electroless Nickel Extreme Viton® 4.290″ 3.482″ 1.375″ 1-11-1/2 NPTF 1-5/16-12 UN 2.370″ 3500 PSIG 0.550″

9SS20MJ20XMP125-Z-V Zinc Viton 4.850″ 3.835″ 1.750″ 1-1/4-11-1/2 NPTF 1-5/8-12 UN 2.987″ 3500 PSIG 0.827″
9SS20MJ20XMP125-Z-AL Zinc AFLAS 4.850″ 3.835″ 1.750″ 1-1/4-11-1/2 NPTF 1-5/8-12 UN 2.987″ 3500 PSIG 0.827″
9SS20MJ20XMP125-Z-ETP Zinc Extreme Viton® 4.850″ 3.835″ 1.750″ 1-1/4-11-1/2 NPTF 1-5/8-12 UN 2.987″ 3500 PSIG 0.827″
9SS20MJ20XMP125-Ni-V Electroless Nickel Viton 4.850″ 3.835″ 1.750″ 1-1/4-11-1/2 NPTF 1-5/8-12 UN 2.987″ 3500 PSIG 0.827″
9SS20MJ20XMP125-Ni-AL Electroless Nickel AFLAS 4.850″ 3.835″ 1.750″ 1-1/4-11-1/2 NPTF 1-5/8-12 UN 2.987″ 3500 PSIG 0.827″
9SS20MJ20XMP125-Ni-ETP Electroless Nickel Extreme Viton® 4.850″ 3.835″ 1.750″ 1-1/4-11-1/2 NPTF 1-5/8-12 UN 2.987″ 3500 PSIG 0.827″

9SS24MJ24XMP150-Ni-V Electroless Nickel Viton 5.862″ 4.710″ 2.000″ 1-1/2-11-1/2 NPTF 1-7/8-12 UN 3.050″ 3500 PSIG 0.944″
9SS24MJ24XMP150-Ni-AL Electroless Nickel AFLAS 5.862″ 4.710″ 2.000″ 1-1/2-11-1/2 NPTF 1-7/8-12 UN 3.050″ 3500 PSIG 0.944″
9SS24MJ24XMP150-Ni-ETP Electroless Nickel Extreme Viton® 5.862″ 4.710″ 2.000″ 1-1/2-11-1/2 NPTF 1-7/8-12 UN 3.050″ 3500 PSIG 0.944″
