9SS4MP25XMFS6-NI-AL By Super Swivel | 8504-NI-AL | 1/4-18 Male Pipe NPTF X 11/16-16 Male Face Seal MFS | 0.265" Through Hole | 90° Elbow | Electroless Nickel | AFLAS Seal
9SS4MP25XMFS6-NI-AL By Super Swivel | 8504-NI-AL | 1/4-18 Male Pipe NPTF X 11/16-16 Male Face Seal MFS | 0.265" Through Hole | 90° Elbow | Electroless Nickel | AFLAS Seal - Image 2
9SS4MP25XMFS6-NI-AL By Super Swivel | 8504-NI-AL | 1/4-18 Male Pipe NPTF X 11/16-16 Male Face Seal MFS | 0.265" Through Hole | 90° Elbow | Electroless Nickel | AFLAS Seal -Hose Ware House 9ss4mp25xmfs6 z v 7afa5d1d 60e1 4739 8cd8 d31d00163199

9SS4MP25XMFS6-NI-AL By Super Swivel | 8504-NI-AL | 1/4-18 Male Pipe NPTF X 11/16-16 Male Face Seal MFS | 0.265″ Through Hole | 90° Elbow | Electroless Nickel | AFLAS Seal

Original price was: $56.21.Current price is: $39.35.

SKU: AG9ZZ 1482740203556 Categories: , Tags: , , , , , , , , , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers
Features:
  • 90° Swivels rotating joints provide free rotation on one axis with a right-angle change of path.
  • They reduce the complexity of hose lines providing for minimal friction and allowing free movement of hoses and piping.
  • 90° Super Swivels allow for sharp corners with reduced risk of kinks and flow restriction and free rotation.
  • Super Swivels ball bearing race design withstands heavy side loads preventing premature seal wear and leaks.
  • Super Swivels connect directly to hose lines without adapters reducing overall costs of hydraulics.
  • No Kinks – No Hose Twisting.
Notes:
  • Super Swivels are not recommended for breathing air/oxygen or steam.
  • All swivels have 4 to 1 proof pressure, except 10,000 PSI = 3 to 1 proof pressure.
  • Any series stem will fit with the same series body.
Base Material and Plating:
  • Super Swivels are manufactured from Carbon Steel or 304 and 440C Stainless Steel
  • Carbon Steel Zinc (Z) Plating is recommended for non-corrosive applications, i.e. hydraulic, pneumatic, etc.
  • Carbon Steel Nickel (NI) Plating is recommended for mildly corrosive environments, i.e. water, mild chemicals, solvents, etc.
Seal Material:
  • (V) Viton® (Fluorocarbon) – For most petroleum based applications. (-15 deg. F to 250 deg. F)
  • (AL) Aflas® (Tetrafluoroethylene-propylene copolymer) – Better resistance to many individual chemicals. For service in high temperature environments. (Low temperature limitations.) (+32 deg. F to 400 deg. F)
  • (ETP) Extreme Viton® – High resistance to many individual chemicals. (-6ºF to 437ºF)
9SS4MP25XMFS6-NI-AL By Super Swivel | 8504-NI-AL | 1/4-18 Male Pipe NPTF X 11/16-16 Male Face Seal MFS | 0.265" Through Hole | 90° Elbow | Electroless Nickel | AFLAS Seal -Hose Ware House 9SS4MP25XMFS6 Z

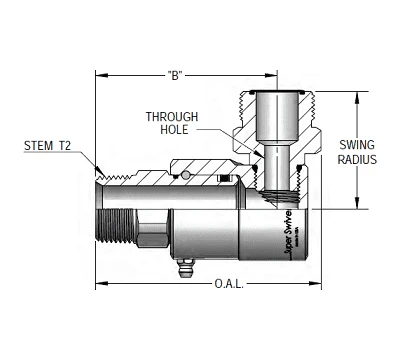

Part Number Material Seal Overall
Length		 Dim.
B		 Wrench/Hex Port T1 Stem T2 SWG.
Radius		 Max
PSIG		 Through
Hole
9SS4MP25XMFS6-Z-V Zinc Viton 2.640″ 2.130″ 0.625″ 11/16-16 UN 1/4-18 NPTF 1.314″ 5000 PSIG 0.265″
9SS4MP25XMFS6-Z-AL Zinc AFLAS 2.640″ 2.130″ 0.625″ 11/16-16 UN 1/4-18 NPTF 1.314″ 5000 PSIG 0.265″
9SS4MP25XMFS6-Z-ETP Zinc Extreme Viton® 2.640″ 2.130″ 0.625″ 11/16-16 UN 1/4-18 NPTF 1.314″ 5000 PSIG 0.265″
9SS4MP25XMFS6-NI-V Electroless Nickel Viton 2.640″ 2.130″ 0.625″ 11/16-16 UN 1/4-18 NPTF 1.314″ 5000 PSIG 0.265″
9SS4MP25XMFS6-NI-AL Electroless Nickel AFLAS 2.640″ 2.130″ 0.625″ 11/16-16 UN 1/4-18 NPTF 1.314″ 5000 PSIG 0.265″
9SS4MP25XMFS6-NI-ETP Electroless Nickel Extreme Viton® 2.640″ 2.130″ 0.625″ 11/16-16 UN 1/4-18 NPTF 1.314″ 5000 PSIG 0.265″

9SS4MP38XMFS6-Z-V Zinc Viton 2.720″ 2.210″ 0.750″ 11/16-16 UN 3/8-18 NPTF 1.314″ 5000 PSIG 0.265″
9SS4MP38XMFS6-Z-AL Zinc AFLAS 2.720″ 2.210″ 0.750″ 11/16-16 UN 3/8-18 NPTF 1.314″ 5000 PSIG 0.265″
9SS4MP38XMFS6-Z-ETP Zinc Extreme Viton® 2.720″ 2.210″ 0.750″ 11/16-16 UN 3/8-18 NPTF 1.314″ 5000 PSIG 0.265″
9SS4MP38XMFS6-NI-V Electroless Nickel Viton 2.720″ 2.210″ 0.750″ 11/16-16 UN 3/8-18 NPTF 1.314″ 5000 PSIG 0.265″
9SS4MP38XMFS6-NI-AL Electroless Nickel AFLAS 2.720″ 2.210″ 0.750″ 11/16-16 UN 3/8-18 NPTF 1.314″ 5000 PSIG 0.265″
9SS4MP38XMFS6-NI-ETP Electroless Nickel Extreme Viton® 2.720″ 2.210″ 0.750″ 11/16-16 UN 3/8-18 NPTF 1.314″ 5000 PSIG 0.265″

9SS8MP38XMFS6-Z-V Zinc Viton 2.670″ 2.125″ 1.000″ 11/16-16 UN 3/8-18 NPTF 1.432″ 5000 PSIG 0.265″
9SS8MP38XMFS6-Z-AL Zinc AFLAS 2.670″ 2.125″ 1.000″ 11/16-16 UN 3/8-18 NPTF 1.432″ 5000 PSIG 0.265″
9SS8MP38XMFS6-Z-ETP Zinc Extreme Viton® 2.670″ 2.125″ 1.000″ 11/16-16 UN 3/8-18 NPTF 1.432″ 5000 PSIG 0.265″
9SS8MP38XMFS6-NI-V Electroless Nickel Viton 2.670″ 2.125″ 1.000″ 11/16-16 UN 3/8-18 NPTF 1.432″ 5000 PSIG 0.265″
9SS8MP38XMFS6-NI-AL Electroless Nickel AFLAS 2.670″ 2.125″ 1.000″ 11/16-16 UN 3/8-18 NPTF 1.432″ 5000 PSIG 0.265″
9SS8MP38XMFS6-NI-ETP Electroless Nickel Extreme Viton® 2.670″ 2.125″ 1.000″ 11/16-16 UN 3/8-18 NPTF 1.432″ 5000 PSIG 0.265″

9SS8MP38XMFS8-Z-V Zinc Viton 2.670″ 2.125″ 1.000″ 13/16-16 UN 3/8-18 NPTF 1.669″ 5000 PSIG 0.265″
9SS8MP38XMFS8-Z-AL Zinc AFLAS 2.670″ 2.125″ 1.000″ 13/16-16 UN 3/8-18 NPTF 1.669″ 5000 PSIG 0.265″
9SS8MP38XMFS8-Z-ETP Zinc Extreme Viton® 2.670″ 2.125″ 1.000″ 13/16-16 UN 3/8-18 NPTF 1.669″ 5000 PSIG 0.265″
9SS8MP38XMFS8-NI-V Electroless Nickel Viton 2.670″ 2.125″ 1.000″ 13/16-16 UN 3/8-18 NPTF 1.669″ 5000 PSIG 0.265″
9SS8MP38XMFS8-NI-AL Electroless Nickel AFLAS 2.670″ 2.125″ 1.000″ 13/16-16 UN 3/8-18 NPTF 1.669″ 5000 PSIG 0.265″
9SS8MP38XMFS8-NI-ETP Electroless Nickel Extreme Viton® 2.670″ 2.125″ 1.000″ 13/16-16 UN 3/8-18 NPTF 1.669″ 5000 PSIG 0.265″

9SS8MP50XMFS8-Z-V Zinc Viton 3.170″ 2.620″ 1.000″ 13/16-16 UN 1/2-14 NPTF 1.669″ 5000 PSIG 0.265″
9SS8MP50XMFS8-Z-AL Zinc AFLAS 3.170″ 2.620″ 1.000″ 13/16-16 UN 1/2-14 NPTF 1.669″ 5000 PSIG 0.265″
9SS8MP50XMFS8-Z-ETP Zinc Extreme Viton® 3.170″ 2.620″ 1.000″ 13/16-16 UN 1/2-14 NPTF 1.669″ 5000 PSIG 0.265″
9SS8MP50XMFS8-NI-V Electroless Nickel Viton 3.170″ 2.620″ 1.000″ 13/16-16 UN 1/2-14 NPTF 1.669″ 5000 PSIG 0.265″
9SS8MP50XMFS8-NI-AL Electroless Nickel AFLAS 3.170″ 2.620″ 1.000″ 13/16-16 UN 1/2-14 NPTF 1.669″ 5000 PSIG 0.265″
9SS8MP50XMFS8-NI-ETP Electroless Nickel Extreme Viton® 3.170″ 2.620″ 1.000″ 13/16-16 UN 1/2-14 NPTF 1.669″ 5000 PSIG 0.265″

9SS8MP50XMFS10-Z-V Zinc Viton 3.170″ 2.620″ 1.000″ 1-14 UN 1/2-14 NPTF 1.826″ 5000 PSIG 0.265″
9SS8MP50XMFS10-Z-AL Zinc AFLAS 3.170″ 2.620″ 1.000″ 1-14 UN 1/2-14 NPTF 1.826″ 5000 PSIG 0.265″
9SS8MP50XMFS10-Z-ETP Zinc Extreme Viton® 3.170″ 2.620″ 1.000″ 1-14 UN 1/2-14 NPTF 1.826″ 5000 PSIG 0.265″
9SS8MP50XMFS10-NI-V Electroless Nickel Viton 3.170″ 2.620″ 1.000″ 1-14 UN 1/2-14 NPTF 1.826″ 5000 PSIG 0.265″
9SS8MP50XMFS10-NI-AL Electroless Nickel AFLAS 3.170″ 2.620″ 1.000″ 1-14 UN 1/2-14 NPTF 1.826″ 5000 PSIG 0.265″
9SS8MP50XMFS10-NI-ETP Electroless Nickel Extreme Viton® 3.170″ 2.620″ 1.000″ 1-14 UN 1/2-14 NPTF 1.826″ 5000 PSIG 0.265″

9SS12MP75XMFS12-Z-V Zinc Viton 3.400″ 2.760″ 1.125″ 1-3/16-12 UN 3/4-14 NPTF 2.089″ 4500 PSIG 0.389″
9SS12MP75XMFS12-Z-AL Zinc AFLAS 3.400″ 2.760″ 1.125″ 1-3/16-12 UN 3/4-14 NPTF 2.089″ 4500 PSIG 0.389″
9SS12MP75XMFS12-Z-ETP Zinc Extreme Viton® 3.400″ 2.760″ 1.125″ 1-3/16-12 UN 3/4-14 NPTF 2.089″ 4500 PSIG 0.389″
9SS12MP75XMFS12-NI-V Electroless Nickel Viton 3.400″ 2.760″ 1.125″ 1-3/16-12 UN 3/4-14 NPTF 2.089″ 4500 PSIG 0.389″
9SS12MP75XMFS12-NI-AL Electroless Nickel AFLAS 3.400″ 2.760″ 1.125″ 1-3/16-12 UN 3/4-14 NPTF 2.089″ 4500 PSIG 0.389″
9SS12MP75XMFS12-NI-ETP Electroless Nickel Extreme Viton® 3.400″ 2.760″ 1.125″ 1-3/16-12 UN 3/4-14 NPTF 2.089″ 4500 PSIG 0.389″

9SS16MP100XMFS16-Z-V Zinc Viton 4.320″ 3.462″ 1.375″ 1-7/16-12 UN 1-11-1/2 NPTF 2.255″ 4000 PSIG 0.484″
9SS16MP100XMFS16-Z-AL Zinc AFLAS 4.320″ 3.462″ 1.375″ 1-7/16-12 UN 1-11-1/2 NPTF 2.255″ 4000 PSIG 0.484″
9SS16MP100XMFS16-Z-ETP Zinc Extreme Viton® 4.320″ 3.462″ 1.375″ 1-7/16-12 UN 1-11-1/2 NPTF 2.255″ 4000 PSIG 0.484″
9SS16MP100XMFS16-NI-V Electroless Nickel Viton 4.320″ 3.462″ 1.375″ 1-7/16-12 UN 1-11-1/2 NPTF 2.255″ 4000 PSIG 0.484″
9SS16MP100XMFS16-NI-AL Electroless Nickel AFLAS 4.320″ 3.462″ 1.375″ 1-7/16-12 UN 1-11-1/2 NPTF 2.255″ 4000 PSIG 0.484″
9SS16MP100XMFS16-NI-ETP Electroless Nickel Extreme Viton® 4.320″ 3.462″ 1.375″ 1-7/16-12 UN 1-11-1/2 NPTF 2.255″ 4000 PSIG 0.484″

9SS20MP125XMFS20-Z-V Zinc Viton 4.800″ 3.795″ 1.750″ 1-11/16-12 UN 1-1/4-11-1/2 NPTF 2.658″ 4000 PSIG 0.718″
9SS20MP125XMFS20-Z-AL Zinc AFLAS 4.800″ 3.795″ 1.750″ 1-11/16-12 UN 1-1/4-11-1/2 NPTF 2.658″ 4000 PSIG 0.718″
9SS20MP125XMFS20-Z-ETP Zinc Extreme Viton® 4.800″ 3.795″ 1.750″ 1-11/16-12 UN 1-1/4-11-1/2 NPTF 2.658″ 4000 PSIG 0.718″
9SS20MP125XMFS20-NI-V Electroless Nickel Viton 4.800″ 3.795″ 1.750″ 1-11/16-12 UN 1-1/4-11-1/2 NPTF 2.658″ 4000 PSIG 0.718″
9SS20MP125XMFS20-NI-AL Electroless Nickel AFLAS 4.800″ 3.795″ 1.750″ 1-11/16-12 UN 1-1/4-11-1/2 NPTF 2.658″ 4000 PSIG 0.718″
9SS20MP125XMFS20-NI-ETP Electroless Nickel Extreme Viton® 4.800″ 3.795″ 1.750″ 1-11/16-12 UN 1-1/4-11-1/2 NPTF 2.658″ 4000 PSIG 0.718″

9SS24MP150XMFS24-NI-V Electroless Nickel Viton 5.846″ 4.620″ 1.995″ 2-12 UN 1-1/4-11-1/2 NPTF 2.904″ 4000 PSIG 0.844″
9SS24MP150XMFS24-NI-AL Electroless Nickel AFLAS 5.846″ 4.620″ 1.995″ 2-12 UN 1-1/4-11-1/2 NPTF 2.904″ 4000 PSIG 0.844″
9SS24MP150XMFS24-NI-ETP Electroless Nickel Extreme Viton® 5.846″ 4.620″ 1.995″ 2-12 UN 1-1/4-11-1/2 NPTF 2.904″ 4000 PSIG 0.844″
