9SS24MO24XPS150-Ni-ETP By Super Swivel | 6485-Ni-ETP | 1-7/8-12 Male O-Ring ORB X 1-1/2-11-1/2 Female Pipe Swivel NPSM | 1.040" Through Hole | 90° Elbow | Electroless Nickel | Extreme Viton® Seal
9SS24MO24XPS150-Ni-ETP By Super Swivel | 6485-Ni-ETP | 1-7/8-12 Male O-Ring ORB X 1-1/2-11-1/2 Female Pipe Swivel NPSM | 1.040" Through Hole | 90° Elbow | Electroless Nickel | Extreme Viton® Seal - Image 2
9SS24MO24XPS150-Ni-ETP By Super Swivel | 6485-Ni-ETP | 1-7/8-12 Male O-Ring ORB X 1-1/2-11-1/2 Female Pipe Swivel NPSM | 1.040" Through Hole | 90° Elbow | Electroless Nickel | Extreme Viton® Seal -Hose Ware House 9ss4mo4xps25 z v 540x 57c87a2e c66b 4ab1 83a9 e1a4d0495357

9SS24MO24XPS150-Ni-ETP By Super Swivel | 6485-Ni-ETP | 1-7/8-12 Male O-Ring ORB X 1-1/2-11-1/2 Female Pipe Swivel NPSM | 1.040″ Through Hole | 90° Elbow | Electroless Nickel | Extreme Viton® Seal

Original price was: $351.37.Current price is: $95.99.

SKU: AG9ZZ 5849673072805 Categories: , Tags: , , , , , , , , , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers
Features:
  • 90° Swivels rotating joints provide free rotation on one axis with a right-angle change of path.
  • They reduce the complexity of hose lines providing for minimal friction and allowing free movement of hoses and piping.
  • 90° Super Swivels allow for sharp corners with reduced risk of kinks and flow restriction and free rotation.
  • Super Swivels ball bearing race design withstands heavy side loads preventing premature seal wear and leaks.
  • Super Swivels connect directly to hose lines without adapters reducing overall costs of hydraulics.
  • No Kinks – No Hose Twisting.
Notes:
  • Super Swivels are not recommended for breathing air/oxygen or steam.
  • All swivels have 4 to 1 proof pressure, except 10,000 PSI = 3 to 1 proof pressure.
  • Any series stem will fit with the same series body.
Base Material and Plating:
  • Super Swivels are manufactured from Carbon Steel or 304 and 440C Stainless Steel
  • Carbon Steel Zinc (Z) Plating is recommended for non-corrosive applications, i.e. hydraulic, pneumatic, etc.
  • Carbon Steel Nickel (NI) Plating is recommended for mildly corrosive environments, i.e. water, mild chemicals, solvents, etc.
Seal Material:
  • (V) Viton® (Fluorocarbon) – For most petroleum based applications. (-15 deg. F to 250 deg. F)
  • (AL) Aflas® (Tetrafluoroethylene-propylene copolymer) – Better resistance to many individual chemicals. For service in high temperature environments. (Low temperature limitations.) (+32 deg. F to 400 deg. F)
  • (ETP) Extreme Viton® – High resistance to many individual chemicals. (-6ºF to 437ºF)
9SS24MO24XPS150-Ni-ETP By Super Swivel | 6485-Ni-ETP | 1-7/8-12 Male O-Ring ORB X 1-1/2-11-1/2 Female Pipe Swivel NPSM | 1.040" Through Hole | 90° Elbow | Electroless Nickel | Extreme Viton® Seal -Hose Ware House 9SS4MO4XPS25 Z

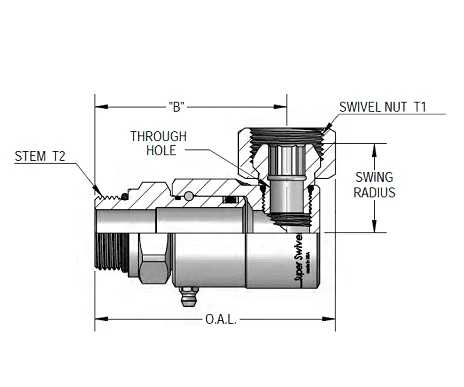

Part Number Material Seal Overall
Length		 Dim.
B		 Swivel
Hex		 Wrench/Hex Swivel
Nut T1		 Stem T2 SWG.
Radius		 Max
PSIG		 Through
Hole
9SS4MO4XPS25-Z-V Zinc Viton 2.727″ 2.215″ 0.687″ 0.687″ 1/4-18 NPSM 7/16-20 UN 1.326″ 3500 PSIG 0.172″
9SS4MO4XPS25-Z-AL Zinc AFLAS 2.727″ 2.215″ 0.687″ 0.687″ 1/4-18 NPSM 7/16-20 UN 1.326″ 3500 PSIG 0.172″
9SS4MO4XPS25-Ni-V Electroless Nickel Viton 2.727″ 2.215″ 0.687″ 0.687″ 1/4-18 NPSM 7/16-20 UN 1.326″ 3500 PSIG 0.172″
9SS4MO4XPS25-Ni-AL Electroless Nickel AFLAS 2.727″ 2.215″ 0.687″ 0.687″ 1/4-18 NPSM 7/16-20 UN 1.326″ 3500 PSIG 0.172″

9SS4MO6XPS25-Z-V Zinc Viton 2.727″ 2.215″ 0.687″ 0.750″ 1/4-18 NPSM 9/16-18 UN 1.326″ 3500 PSIG 0.218″
9SS4MO6XPS25-Z-AL Zinc AFLAS 2.727″ 2.215″ 0.687″ 0.750″ 1/4-18 NPSM 9/16-18 UN 1.326″ 3500 PSIG 0.218″
9SS4MO6XPS25-Z-ETP Zinc Extreme Viton® 2.727″ 2.215″ 0.687″ 0.750″ 1/4-18 NPSM 9/16-18 UN 1.326″ 3500 PSIG 0.218″
9SS4MO6XPS25-Ni-V Electroless Nickel Viton 2.727″ 2.215″ 0.687″ 0.750″ 1/4-18 NPSM 9/16-18 UN 1.326″ 3500 PSIG 0.218″
9SS4MO6XPS25-Ni-AL Electroless Nickel AFLAS 2.727″ 2.215″ 0.687″ 0.750″ 1/4-18 NPSM 9/16-18 UN 1.326″ 3500 PSIG 0.218″
9SS4MO6XPS25-Ni-ETP Electroless Nickel Extreme Viton® 2.727″ 2.215″ 0.687″ 0.750″ 1/4-18 NPSM 9/16-18 UN 1.326″ 3500 PSIG 0.218″

9SS4MO6XPS38-Z-V Zinc Viton 2.727″ 2.215″ 0.875″ 0.750″ 3/8-18 NPSM 9/16-18 UN 1.555″ 3500 PSIG 0.250″
9SS4MO6XPS38-Z-AL Zinc AFLAS 2.727″ 2.215″ 0.875″ 0.750″ 3/8-18 NPSM 9/16-18 UN 1.555″ 3500 PSIG 0.250″
9SS4MO6XPS38-Z-ETP Zinc Extreme Viton® 2.727″ 2.215″ 0.875″ 0.750″ 3/8-18 NPSM 9/16-18 UN 1.555″ 3500 PSIG 0.250″
9SS4MO6XPS38-Ni-V Electroless Nickel Viton 2.727″ 2.215″ 0.875″ 0.750″ 3/8-18 NPSM 9/16-18 UN 1.555″ 3500 PSIG 0.250″
9SS4MO6XPS38-Ni-AL Electroless Nickel AFLAS 2.727″ 2.215″ 0.875″ 0.750″ 3/8-18 NPSM 9/16-18 UN 1.555″ 3500 PSIG 0.250″
9SS4MO6XPS38-Ni-ETP Electroless Nickel Extreme Viton® 2.727″ 2.215″ 0.875″ 0.750″ 3/8-18 NPSM 9/16-18 UN 1.555″ 3500 PSIG 0.250″

9SS8MO8XPS38-Z-V Zinc Viton 2.923″ 2.376″ 0.875″ 1.000″ 3/8-18 NPSM 3/4-16 UN 1.437″ 3500 PSIG 0.327″
9SS8MO8XPS38-Z-AL Zinc AFLAS 2.923″ 2.376″ 0.875″ 1.000″ 3/8-18 NPSM 3/4-16 UN 1.437″ 3500 PSIG 0.327″
9SS8MO8XPS38-Z-ETP Zinc Extreme Viton® 2.923″ 2.376″ 0.875″ 1.000″ 3/8-18 NPSM 3/4-16 UN 1.437″ 3500 PSIG 0.327″
9SS8MO8XPS38-Ni-V Electroless Nickel Viton 2.923″ 2.376″ 0.875″ 1.000″ 3/8-18 NPSM 3/4-16 UN 1.437″ 3500 PSIG 0.327″
9SS8MO8XPS38-Ni-AL Electroless Nickel AFLAS 2.923″ 2.376″ 0.875″ 1.000″ 3/8-18 NPSM 3/4-16 UN 1.437″ 3500 PSIG 0.327″
9SS8MO8XPS38-Ni-ETP Electroless Nickel Extreme Viton® 2.923″ 2.376″ 0.875″ 1.000″ 3/8-18 NPSM 3/4-16 UN 1.437″ 3500 PSIG 0.327″

9SS8MO8XPS50-Z-V Zinc Viton 2.953″ 2.376″ 1.000″ 1.000″ 1/2-14 NPSM 3/4-16 UN 1.521″ 3500 PSIG 0.327″
9SS8MO8XPS50-Z-AL Zinc AFLAS 2.953″ 2.376″ 1.000″ 1.000″ 1/2-14 NPSM 3/4-16 UN 1.521″ 3500 PSIG 0.327″
9SS8MO8XPS50-Z-ETP Zinc Extreme Viton® 2.953″ 2.376″ 1.000″ 1.000″ 1/2-14 NPSM 3/4-16 UN 1.521″ 3500 PSIG 0.327″
9SS8MO8XPS50-Ni-V Electroless Nickel Viton 2.953″ 2.376″ 1.000″ 1.000″ 1/2-14 NPSM 3/4-16 UN 1.521″ 3500 PSIG 0.327″
9SS8MO8XPS50-Ni-AL Electroless Nickel AFLAS 2.953″ 2.376″ 1.000″ 1.000″ 1/2-14 NPSM 3/4-16 UN 1.521″ 3500 PSIG 0.327″
9SS8MO8XPS50-Ni-ETP Electroless Nickel Extreme Viton® 2.953″ 2.376″ 1.000″ 1.000″ 1/2-14 NPSM 3/4-16 UN 1.521″ 3500 PSIG 0.327″

9SS8MO10XPS50-Z-V Zinc Viton 3.075″ 2.498″ 1.000″ 1.000″ 1/2-14 NPSM 7/8-14 UN 1.521″ 3500 PSIG 0.390″
9SS8MO10XPS50-Z-AL Zinc AFLAS 3.075″ 2.498″ 1.000″ 1.000″ 1/2-14 NPSM 7/8-14 UN 1.521″ 3500 PSIG 0.390″
9SS8MO10XPS50-Z-ETP Zinc Extreme Viton® 3.075″ 2.498″ 1.000″ 1.000″ 1/2-14 NPSM 7/8-14 UN 1.521″ 3500 PSIG 0.390″
9SS8MO10XPS50-Ni-V Electroless Nickel Viton 3.075″ 2.498″ 1.000″ 1.000″ 1/2-14 NPSM 7/8-14 UN 1.521″ 3500 PSIG 0.390″
9SS8MO10XPS50-Ni-AL Electroless Nickel AFLAS 3.075″ 2.498″ 1.000″ 1.000″ 1/2-14 NPSM 7/8-14 UN 1.521″ 3500 PSIG 0.390″
9SS8MO10XPS50-Ni-ETP Electroless Nickel Extreme Viton® 3.075″ 2.498″ 1.000″ 1.000″ 1/2-14 NPSM 7/8-14 UN 1.521″ 3500 PSIG 0.390″

9SS12MO12XPS75-Z-V Zinc Viton 3.470″ 2.749″ 1.250″ 1.375″ 3/4-14 NPSM 1-1/16-12 UN 1.664″ 3500 PSIG 0.521″
9SS12MO12XPS75-Z-AL Zinc AFLAS 3.470″ 2.749″ 1.250″ 1.375″ 3/4-14 NPSM 1-1/16-12 UN 1.664″ 3500 PSIG 0.521″
9SS12MO12XPS75-Z-ETP Zinc Extreme Viton® 3.470″ 2.749″ 1.250″ 1.375″ 3/4-14 NPSM 1-1/16-12 UN 1.664″ 3500 PSIG 0.521″
9SS12MO12XPS75-Ni-V Electroless Nickel Viton 3.470″ 2.749″ 1.250″ 1.375″ 3/4-14 NPSM 1-1/16-12 UN 1.664″ 3500 PSIG 0.521″
9SS12MO12XPS75-Ni-AL Electroless Nickel AFLAS 3.470″ 2.749″ 1.250″ 1.375″ 3/4-14 NPSM 1-1/16-12 UN 1.664″ 3500 PSIG 0.521″
9SS12MO12XPS75-Ni-ETP Electroless Nickel Extreme Viton® 3.470″ 2.749″ 1.250″ 1.375″ 3/4-14 NPSM 1-1/16-12 UN 1.664″ 3500 PSIG 0.521″

9SS16MO16XPS100-Z-V Zinc Viton 4.276″ 3.411″ 1.500″ 1.625″ 1-11-1/2 NPSM 1-5/16-12 UN 1.956″ 3500 PSIG 0.590″
9SS16MO16XPS100-Z-AL Zinc AFLAS 4.276″ 3.411″ 1.500″ 1.625″ 1-11-1/2 NPSM 1-5/16-12 UN 1.956″ 3500 PSIG 0.590″
9SS16MO16XPS100-Z-ETP Zinc Extreme Viton® 4.276″ 3.411″ 1.500″ 1.625″ 1-11-1/2 NPSM 1-5/16-12 UN 1.956″ 3500 PSIG 0.590″
9SS16MO16XPS100-Ni-V Electroless Nickel Viton 4.276″ 3.411″ 1.500″ 1.625″ 1-11-1/2 NPSM 1-5/16-12 UN 1.956″ 3500 PSIG 0.590″
9SS16MO16XPS100-Ni-AL Electroless Nickel AFLAS 4.276″ 3.411″ 1.500″ 1.625″ 1-11-1/2 NPSM 1-5/16-12 UN 1.956″ 3500 PSIG 0.590″
9SS16MO16XPS100-Ni-ETP Electroless Nickel Extreme Viton® 4.276″ 3.411″ 1.500″ 1.625″ 1-11-1/2 NPSM 1-5/16-12 UN 1.956″ 3500 PSIG 0.590″

9SS20MO20XPS125-Z-V Zinc Viton 4.837″ 3.755″ 1.875″ 1.875″ 1-1/4-11-1/2 NPSM 1-5/8-12 UN 2.570″ 3500 PSIG 0.906″
9SS20MO20XPS125-Z-AL Zinc AFLAS 4.837″ 3.755″ 1.875″ 1.875″ 1-1/4-11-1/2 NPSM 1-5/8-12 UN 2.570″ 3500 PSIG 0.906″
9SS20MO20XPS125-Z-ETP Zinc Extreme Viton® 4.837″ 3.755″ 1.875″ 1.875″ 1-1/4-11-1/2 NPSM 1-5/8-12 UN 2.570″ 3500 PSIG 0.906″
9SS20MO20XPS125-Ni-V Electroless Nickel Viton 4.837″ 3.755″ 1.875″ 1.875″ 1-1/4-11-1/2 NPSM 1-5/8-12 UN 2.570″ 3500 PSIG 0.906″
9SS20MO20XPS125-Ni-AL Electroless Nickel AFLAS 4.837″ 3.755″ 1.875″ 1.875″ 1-1/4-11-1/2 NPSM 1-5/8-12 UN 2.570″ 3500 PSIG 0.906″
9SS20MO20XPS125-Ni-ETP Electroless Nickel Extreme Viton® 4.837″ 3.755″ 1.875″ 1.875″ 1-1/4-11-1/2 NPSM 1-5/8-12 UN 2.570″ 3500 PSIG 0.906″

9SS24MO24XPS150-Ni-V Electroless Nickel Viton 5.750″ 4.540″ 2.125″ 2.125″ 1-1/2-11-1/2 NPSM 1-7/8-12 UN 2.630″ 3500 PSIG 1.040″
9SS24MO24XPS150-Ni-AL Electroless Nickel AFLAS 5.750″ 4.540″ 2.125″ 2.125″ 1-1/2-11-1/2 NPSM 1-7/8-12 UN 2.630″ 3500 PSIG 1.040″
9SS24MO24XPS150-Ni-ETP Electroless Nickel Extreme Viton® 5.750″ 4.540″ 2.125″ 2.125″ 1-1/2-11-1/2 NPSM 1-7/8-12 UN 2.630″ 3500 PSIG 1.040″
