9SS16MJB16XFP100-Z-V By Super Swivel | 6150-Z-V | 1-5/16-12 Male 37° JIC Bulkhead X 1-11-1/2 Female Pipe NPTF | 0.827" Through Hole | 90° Elbow | Zinc | Viton Seal
9SS16MJB16XFP100-Z-V By Super Swivel | 6150-Z-V | 1-5/16-12 Male 37° JIC Bulkhead X 1-11-1/2 Female Pipe NPTF | 0.827" Through Hole | 90° Elbow | Zinc | Viton Seal - Image 2
9SS16MJB16XFP100-Z-V By Super Swivel | 6150-Z-V | 1-5/16-12 Male 37° JIC Bulkhead X 1-11-1/2 Female Pipe NPTF | 0.827" Through Hole | 90° Elbow | Zinc | Viton Seal -Hose Ware House 9ss4mjb6xfp25 z v d6014b25 86b6 4625 89c3 0243bb73eeeb

9SS16MJB16XFP100-Z-V By Super Swivel | 6150-Z-V | 1-5/16-12 Male 37° JIC Bulkhead X 1-11-1/2 Female Pipe NPTF | 0.827″ Through Hole | 90° Elbow | Zinc | Viton Seal

Original price was: $79.54.Current price is: $55.68.

SKU: AG9ZZ 1482664050724 Category: Tags: , , , , , , , , , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers
Features:
  • 90° Swivels rotating joints provide free rotation on one axis with a right-angle change of path.
  • They reduce the complexity of hose lines providing for minimal friction and allowing free movement of hoses and piping.
  • 90° Super Swivels allow for sharp corners with reduced risk of kinks and flow restriction and free rotation.
  • Super Swivels ball bearing race design withstands heavy side loads preventing premature seal wear and leaks.
  • Super Swivels connect directly to hose lines without adapters reducing overall costs of hydraulics.
  • No Kinks – No Hose Twisting.
Notes:
  • Super Swivels are not recommended for breathing air/oxygen or steam.
  • All swivels have 4 to 1 proof pressure, except 10,000 PSI = 3 to 1 proof pressure.
  • Any series stem will fit with the same series body.
Base Material and Plating:
  • Super Swivels are manufactured from Carbon Steel or 304 and 440C Stainless Steel
  • Carbon Steel Zinc (Z) Plating is recommended for non-corrosive applications, i.e. hydraulic, pneumatic, etc.
  • Carbon Steel Nickel (NI) Plating is recommended for mildly corrosive environments, i.e. water, mild chemicals, solvents, etc.
Seal Material:
  • (V) Viton® (Fluorocarbon) – For most petroleum based applications. (-15 deg. F to 250 deg. F)
  • (AL) Aflas® (Tetrafluoroethylene-propylene copolymer) – Better resistance to many individual chemicals. For service in high temperature environments. (Low temperature limitations.) (+32 deg. F to 400 deg. F)
  • (ETP) Extreme Viton® – High resistance to many individual chemicals. (-6ºF to 437ºF)
9SS16MJB16XFP100-Z-V By Super Swivel | 6150-Z-V | 1-5/16-12 Male 37° JIC Bulkhead X 1-11-1/2 Female Pipe NPTF | 0.827" Through Hole | 90° Elbow | Zinc | Viton Seal -Hose Ware House 9SS4MJ4XFP25 Z V add 9359f6ec 436d 48d4 9161

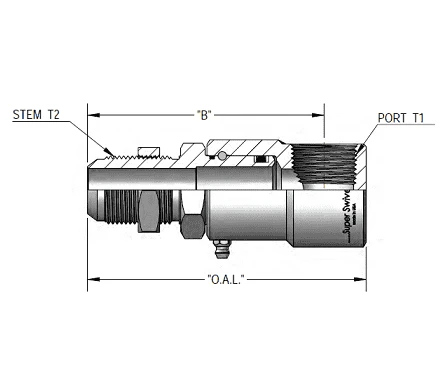

Part Number Material Seal Overall
Length		 Dim.
B		 Dim.
D Ø		 Wrench/Hex Port T1 Stem T2 SWG.
Radius		 Max
PSIG		 Through
Hole
9SS4MJB6XFP25-Z-V Zinc Viton 3.230″ 2.860″ 1.190″ .812″ 1/4-18 NPTF 9/16-18 UN 0.530″ 5000 PSIG 0.250″
9SS4MJB6XFP25-Z-AL Zinc AFLAS 3.230″ 2.860″ 1.190″ .812″ 1/4-18 NPTF 9/16-18 UN 0.530″ 5000 PSIG 0.250″
9SS4MJB6XFP25-Ni-V Electroless Nickel Viton 3.230″ 2.860″ 1.190″ .812″ 1/4-18 NPTF 9/16-18 UN 0.530″ 5000 PSIG 0.250″
9SS4MJB6XFP25-Ni-AL Electroless Nickel AFLAS 3.230″ 2.860″ 1.190″ .812″ 1/4-18 NPTF 9/16-18 UN 0.530″ 5000 PSIG 0.250″

9SS8MJB8XFP38-Z-V Zinc Viton 3.810″ 3.260″ 1.495″ 1.000″ 3/8-18 NPTF 3/4-16 UN 0.651″ 5000 PSIG 0.406″
9SS8MJB8XFP38-Z-AL Zinc AFLAS 3.810″ 3.260″ 1.495″ 1.000″ 3/8-18 NPTF 3/4-16 UN 0.651″ 5000 PSIG 0.406″
9SS8MJB8XFP38-Z-ETP Zinc Extreme Viton® 3.810″ 3.260″ 1.495″ 1.000″ 3/8-18 NPTF 3/4-16 UN 0.651″ 5000 PSIG 0.406″
9SS8MJB8XFP38-Ni-V Electroless Nickel Viton 3.810″ 3.260″ 1.495″ 1.000″ 3/8-18 NPTF 3/4-16 UN 0.651″ 5000 PSIG 0.406″
9SS8MJB8XFP38-Ni-AL Electroless Nickel AFLAS 3.810″ 3.260″ 1.495″ 1.000″ 3/8-18 NPTF 3/4-16 UN 0.651″ 5000 PSIG 0.406″
9SS8MJB8XFP38-Ni-ETP Electroless Nickel Extreme Viton® 3.810″ 3.260″ 1.495″ 1.000″ 3/8-18 NPTF 3/4-16 UN 0.651″ 5000 PSIG 0.406″

9SS8MJB8XFP50-Z-V Zinc Viton 3.805″ 3.258″ 1.495″ 1.000″ 1/2-14 NPTF 3/4-16 UN 0.581″ 5000 PSIG 0.406″
9SS8MJB8XFP50-Z-AL Zinc AFLAS 3.805″ 3.258″ 1.495″ 1.000″ 1/2-14 NPTF 3/4-16 UN 0.581″ 5000 PSIG 0.406″
9SS8MJB8XFP50-Z-ETP Zinc Extreme Viton® 3.805″ 3.258″ 1.495″ 1.000″ 1/2-14 NPTF 3/4-16 UN 0.581″ 5000 PSIG 0.406″
9SS8MJB8XFP50-Ni-V Electroless Nickel Viton 3.805″ 3.258″ 1.495″ 1.000″ 1/2-14 NPTF 3/4-16 UN 0.581″ 5000 PSIG 0.406″
9SS8MJB8XFP50-Ni-AL Electroless Nickel AFLAS 3.805″ 3.258″ 1.495″ 1.000″ 1/2-14 NPTF 3/4-16 UN 0.581″ 5000 PSIG 0.406″
9SS8MJB8XFP50-Ni-ETP Electroless Nickel Extreme Viton® 3.805″ 3.258″ 1.495″ 1.000″ 1/2-14 NPTF 3/4-16 UN 0.581″ 5000 PSIG 0.406″

9SS8MJB10XFP38-Z-V Zinc Viton 4.025″ 3.478″ 1.495″ 1.125″ 3/8-18 NPTF 7/8-14 UN 0.650″ 5000 PSIG 0.484″
9SS8MJB10XFP38-Z-AL Zinc AFLAS 4.025″ 3.478″ 1.495″ 1.125″ 3/8-18 NPTF 7/8-14 UN 0.650″ 5000 PSIG 0.484″
9SS8MJB10XFP38-Z-ETP Zinc Extreme Viton® 4.025″ 3.478″ 1.495″ 1.125″ 3/8-18 NPTF 7/8-14 UN 0.650″ 5000 PSIG 0.484″
9SS8MJB10XFP38-Ni-V Electroless Nickel Viton 4.025″ 3.478″ 1.495″ 1.125″ 3/8-18 NPTF 7/8-14 UN 0.650″ 5000 PSIG 0.484″
9SS8MJB10XFP38-Ni-AL Electroless Nickel AFLAS 4.025″ 3.478″ 1.495″ 1.125″ 3/8-18 NPTF 7/8-14 UN 0.650″ 5000 PSIG 0.484″
9SS8MJB10XFP38-Ni-ETP Electroless Nickel Extreme Viton® 4.025″ 3.478″ 1.495″ 1.125″ 3/8-18 NPTF 7/8-14 UN 0.650″ 5000 PSIG 0.484″

9SS8MJB10XFP50-Z-V Zinc Viton 4.025″ 3.478″ 1.495″ 1.125″ 1/2-14 NPTF 7/8-14 UN 0.581″ 5000 PSIG 0.484″
9SS8MJB10XFP50-Z-AL Zinc AFLAS 4.025″ 3.478″ 1.495″ 1.125″ 1/2-14 NPTF 7/8-14 UN 0.581″ 5000 PSIG 0.484″
9SS8MJB10XFP50-Z-ETP Zinc Extreme Viton® 4.025″ 3.478″ 1.495″ 1.125″ 1/2-14 NPTF 7/8-14 UN 0.581″ 5000 PSIG 0.484″
9SS8MJB10XFP50-Ni-V Electroless Nickel Viton 4.025″ 3.478″ 1.495″ 1.125″ 1/2-14 NPTF 7/8-14 UN 0.581″ 5000 PSIG 0.484″
9SS8MJB10XFP50-Ni-AL Electroless Nickel AFLAS 4.025″ 3.478″ 1.495″ 1.125″ 1/2-14 NPTF 7/8-14 UN 0.581″ 5000 PSIG 0.484″
9SS8MJB10XFP50-Ni-ETP Electroless Nickel Extreme Viton® 4.025″ 3.478″ 1.495″ 1.125″ 1/2-14 NPTF 7/8-14 UN 0.581″ 5000 PSIG 0.484″

9SS12MJB12XFP75-Z-V Zinc Viton 4.475″ 3.810″ 1.710″ 1.375″ 3/4-14 NPTF 1-1/16-12 UN 0.643″ 4500 PSIG 0.609″
9SS12MJB12XFP75-Z-AL Zinc AFLAS 4.475″ 3.810″ 1.710″ 1.375″ 3/4-14 NPTF 1-1/16-12 UN 0.643″ 4500 PSIG 0.609″
9SS12MJB12XFP75-Z-ETP Zinc Extreme Viton® 4.475″ 3.810″ 1.710″ 1.375″ 3/4-14 NPTF 1-1/16-12 UN 0.643″ 4500 PSIG 0.609″
9SS12MJB12XFP75-Ni-V Electroless Nickel Viton 4.475″ 3.810″ 1.710″ 1.375″ 3/4-14 NPTF 1-1/16-12 UN 0.643″ 4500 PSIG 0.609″
9SS12MJB12XFP75-Ni-AL Electroless Nickel AFLAS 4.475″ 3.810″ 1.710″ 1.375″ 3/4-14 NPTF 1-1/16-12 UN 0.643″ 4500 PSIG 0.609″
9SS12MJB12XFP75-Ni-ETP Electroless Nickel Extreme Viton® 4.475″ 3.810″ 1.710″ 1.375″ 3/4-14 NPTF 1-1/16-12 UN 0.643″ 4500 PSIG 0.609″

9SS16MJB16XFP100-Z-V Zinc Viton 5.330″ 4.522″ 2.162″ 1.625″ 1-11-1/2 NPTF 1-5/16-12 UN 0.741″ 4000 PSIG 0.827″
9SS16MJB16XFP100-Z-AL Zinc AFLAS 5.330″ 4.522″ 2.162″ 1.625″ 1-11-1/2 NPTF 1-5/16-12 UN 0.741″ 4000 PSIG 0.827″
9SS16MJB16XFP100-Z-ETP Zinc Extreme Viton® 5.330″ 4.522″ 2.162″ 1.625″ 1-11-1/2 NPTF 1-5/16-12 UN 0.741″ 4000 PSIG 0.827″
9SS16MJB16XFP100-Ni-V Electroless Nickel Viton 5.330″ 4.522″ 2.162″ 1.625″ 1-11-1/2 NPTF 1-5/16-12 UN 0.741″ 4000 PSIG 0.827″
9SS16MJB16XFP100-Ni-AL Electroless Nickel AFLAS 5.330″ 4.522″ 2.162″ 1.625″ 1-11-1/2 NPTF 1-5/16-12 UN 0.741″ 4000 PSIG 0.827″
9SS16MJB16XFP100-Ni-ETP Electroless Nickel Extreme Viton® 5.330″ 4.522″ 2.162″ 1.625″ 1-11-1/2 NPTF 1-5/16-12 UN 0.741″ 4000 PSIG 0.827″

9SS20MJB20XFP125-Z-V Zinc Viton 5.808″ 4.840″ 2.702″ 1.875″ 1-1/4-11-1/2 NPTF 1-5/8-12 UN 1.049″ 4000 PSIG 1.073″
9SS20MJB20XFP125-Z-AL Zinc AFLAS 5.808″ 4.840″ 2.702″ 1.875″ 1-1/4-11-1/2 NPTF 1-5/8-12 UN 1.049″ 4000 PSIG 1.073″
9SS20MJB20XFP125-Z-ETP Zinc Extreme Viton® 5.808″ 4.840″ 2.702″ 1.875″ 1-1/4-11-1/2 NPTF 1-5/8-12 UN 1.049″ 4000 PSIG 1.073″
9SS20MJB20XFP125-Ni-V Electroless Nickel Viton 5.808″ 4.840″ 2.702″ 1.875″ 1-1/4-11-1/2 NPTF 1-5/8-12 UN 1.049″ 4000 PSIG 1.073″
9SS20MJB20XFP125-Ni-AL Electroless Nickel AFLAS 5.808″ 4.840″ 2.702″ 1.875″ 1-1/4-11-1/2 NPTF 1-5/8-12 UN 1.049″ 4000 PSIG 1.073″
9SS20MJB20XFP125-Ni-ETP Electroless Nickel Extreme Viton® 5.808″ 4.840″ 2.702″ 1.875″ 1-1/4-11-1/2 NPTF 1-5/8-12 UN 1.049″ 4000 PSIG 1.073″
