Sale!
9SS16FP100XMP100-Z-ETP By Super Swivel | 7162-Z-ETP | 1-11-1/2 Female Pipe NPTF X 1-11-1/2 Male Pipe NPTF | 0.550" Through Hole | 90° Elbow | Zinc | Extreme Viton® Seal
9SS16FP100XMP100-Z-ETP By Super Swivel | 7162-Z-ETP | 1-11-1/2 Female Pipe NPTF X 1-11-1/2 Male Pipe NPTF | 0.550" Through Hole | 90° Elbow | Zinc | Extreme Viton® Seal - Image 2
9SS16FP100XMP100-Z-ETP By Super Swivel | 7162-Z-ETP | 1-11-1/2 Female Pipe NPTF X 1-11-1/2 Male Pipe NPTF | 0.550" Through Hole | 90° Elbow | Zinc | Extreme Viton® Seal -Hose Ware House 9ss4fp25xmp25 z v 540x f73c2f7e a441 45f4 87f7 c56c48b515b2

9SS16FP100XMP100-Z-ETP By Super Swivel | 7162-Z-ETP | 1-11-1/2 Female Pipe NPTF X 1-11-1/2 Male Pipe NPTF | 0.550″ Through Hole | 90° Elbow | Zinc | Extreme Viton® Seal

Original price was: $95.92.Current price is: $67.14.

SKU: AG9ZZ 5849678512293 Categories: , Tags: , , , , , , , , , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers
Features:
  • 90° Swivels rotating joints provide free rotation on one axis with a right-angle change of path.
  • They reduce the complexity of hose lines providing for minimal friction and allowing free movement of hoses and piping.
  • 90° Super Swivels allow for sharp corners with reduced risk of kinks and flow restriction and free rotation.
  • Super Swivels ball bearing race design withstands heavy side loads preventing premature seal wear and leaks.
  • Super Swivels connect directly to hose lines without adapters reducing overall costs of hydraulics.
  • No Kinks – No Hose Twisting.
Notes:
  • Super Swivels are not recommended for breathing air/oxygen or steam.
  • All swivels have 4 to 1 proof pressure, except 10,000 PSI = 3 to 1 proof pressure.
  • Any series stem will fit with the same series body.
Base Material and Plating:
  • Super Swivels are manufactured from Carbon Steel or 304 and 440C Stainless Steel
  • Carbon Steel Zinc (Z) Plating is recommended for non-corrosive applications, i.e. hydraulic, pneumatic, etc.
  • Carbon Steel Nickel (NI) Plating is recommended for mildly corrosive environments, i.e. water, mild chemicals, solvents, etc.
Seal Material:
  • (V) Viton® (Fluorocarbon) – For most petroleum based applications. (-15 deg. F to 250 deg. F)
  • (AL) Aflas® (Tetrafluoroethylene-propylene copolymer) – Better resistance to many individual chemicals. For service in high temperature environments. (Low temperature limitations.) (+32 deg. F to 400 deg. F)
  • (ETP) Extreme Viton® – High resistance to many individual chemicals. (-6ºF to 437ºF)
9SS16FP100XMP100-Z-ETP By Super Swivel | 7162-Z-ETP | 1-11-1/2 Female Pipe NPTF X 1-11-1/2 Male Pipe NPTF | 0.550" Through Hole | 90° Elbow | Zinc | Extreme Viton® Seal -Hose Ware House 9SS4FP25XMP25 Z

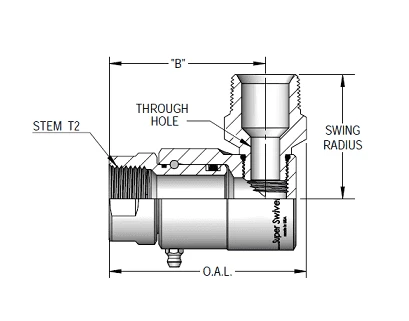

Part Number Material Seal Overall
Length		 Dim.
B		 Wrench/Hex Port T1 Stem T2 SWG.
Radius		 Max
PSIG		 Through
Hole
9SS4FP25XMP25-Z-V Zinc Viton 2.510″ 2.000″ 0.750″ 1/4-18 NPTF 1/4-18 NPTF 1.440″ 3500 PSIG 0.250″
9SS4FP25XMP25-Z-AL Zinc AFLAS 2.510″ 2.000″ 0.750″ 1/4-18 NPTF 1/4-18 NPTF 1.440″ 3500 PSIG 0.250″
9SS4FP25XMP25-Z-ETP Zinc Extreme Viton® 2.510″ 2.000″ 0.750″ 1/4-18 NPTF 1/4-18 NPTF 1.440″ 3500 PSIG 0.250″
9SS4FP25XMP25-Ni-V Electroless Nickel Viton 2.510″ 2.000″ 0.750″ 1/4-18 NPTF 1/4-18 NPTF 1.440″ 3500 PSIG 0.250″
9SS4FP25XMP25-Ni-AL Electroless Nickel AFLAS 2.510″ 2.000″ 0.750″ 1/4-18 NPTF 1/4-18 NPTF 1.440″ 3500 PSIG 0.250″
9SS4FP25XMP25-Ni-ETP Electroless Nickel Extreme Viton® 2.510″ 2.000″ 0.750″ 1/4-18 NPTF 1/4-18 NPTF 1.440″ 3500 PSIG 0.250″

9SS8FP38XMP38-Z-V Zinc Viton 2.670″ 2.120″ 0.875″ 3/8-18 NPTF 3/8-18 NPTF 1.440″ 3500 PSIG 0.297″
9SS8FP38XMP38-Z-AL Zinc AFLAS 2.670″ 2.120″ 0.875″ 3/8-18 NPTF 3/8-18 NPTF 1.440″ 3500 PSIG 0.297″
9SS8FP38XMP38-Z-ETP Zinc Extreme Viton® 2.670″ 2.120″ 0.875″ 3/8-18 NPTF 3/8-18 NPTF 1.440″ 3500 PSIG 0.297″
9SS8FP38XMP38-Ni-V Electroless Nickel Viton 2.670″ 2.120″ 0.875″ 3/8-18 NPTF 3/8-18 NPTF 1.440″ 3500 PSIG 0.297″
9SS8FP38XMP38-Ni-AL Electroless Nickel AFLAS 2.670″ 2.120″ 0.875″ 3/8-18 NPTF 3/8-18 NPTF 1.440″ 3500 PSIG 0.297″
9SS8FP38XMP38-Ni-ETP Electroless Nickel Extreme Viton® 2.670″ 2.120″ 0.875″ 3/8-18 NPTF 3/8-18 NPTF 1.440″ 3500 PSIG 0.297″

9SS8FP38XMP50-Z-V Zinc Viton 2.670″ 2.120″ 0.875″ 1/2-14 NPTF 3/8-18 NPTF 1.440″ 3500 PSIG 0.297″
9SS8FP38XMP50-Z-AL Zinc AFLAS 2.670″ 2.120″ 0.875″ 1/2-14 NPTF 3/8-18 NPTF 1.440″ 3500 PSIG 0.297″
9SS8FP38XMP50-Z-ETP Zinc Extreme Viton® 2.670″ 2.120″ 0.875″ 1/2-14 NPTF 3/8-18 NPTF 1.440″ 3500 PSIG 0.297″
9SS8FP38XMP50-Ni-V Electroless Nickel Viton 2.670″ 2.120″ 0.875″ 1/2-14 NPTF 3/8-18 NPTF 1.440″ 3500 PSIG 0.297″
9SS8FP38XMP50-Ni-AL Electroless Nickel AFLAS 2.670″ 2.120″ 0.875″ 1/2-14 NPTF 3/8-18 NPTF 1.440″ 3500 PSIG 0.297″
9SS8FP38XMP50-Ni-ETP Electroless Nickel Extreme Viton® 2.670″ 2.120″ 0.875″ 1/2-14 NPTF 3/8-18 NPTF 1.440″ 3500 PSIG 0.297″

9SS8FP50XMP38-Z-V Zinc Viton 2.850″ 2.270″ 1.125″ 3/8-18 NPTF 1/2-14 NPTF 1.556″ 3500 PSIG 0.297″
9SS8FP50XMP38-Z-AL Zinc AFLAS 2.850″ 2.270″ 1.125″ 3/8-18 NPTF 1/2-14 NPTF 1.556″ 3500 PSIG 0.297″
9SS8FP50XMP38-Z-ETP Zinc Extreme Viton® 2.850″ 2.270″ 1.125″ 3/8-18 NPTF 1/2-14 NPTF 1.556″ 3500 PSIG 0.297″
9SS8FP50XMP38-Ni-V Electroless Nickel Viton 2.850″ 2.270″ 1.125″ 3/8-18 NPTF 1/2-14 NPTF 1.556″ 3500 PSIG 0.297″
9SS8FP50XMP38-Ni-AL Electroless Nickel AFLAS 2.850″ 2.270″ 1.125″ 3/8-18 NPTF 1/2-14 NPTF 1.556″ 3500 PSIG 0.297″
9SS8FP50XMP38-Ni-ETP Electroless Nickel Extreme Viton® 2.850″ 2.270″ 1.125″ 3/8-18 NPTF 1/2-14 NPTF 1.556″ 3500 PSIG 0.297″

9SS8FP50XMP50-Z-V Zinc Viton 2.850″ 2.270″ 1.125″ 1/2-14 NPTF 1/2-14 NPTF 1.848″ 3500 PSIG 0.297″
9SS8FP50XMP50-Z-AL Zinc AFLAS 2.850″ 2.270″ 1.125″ 1/2-14 NPTF 1/2-14 NPTF 1.848″ 3500 PSIG 0.297″
9SS8FP50XMP50-Z-ETP Zinc Extreme Viton® 2.850″ 2.270″ 1.125″ 1/2-14 NPTF 1/2-14 NPTF 1.848″ 3500 PSIG 0.297″
9SS8FP50XMP50-Ni-V Electroless Nickel Viton 2.850″ 2.270″ 1.125″ 1/2-14 NPTF 1/2-14 NPTF 1.848″ 3500 PSIG 0.297″
9SS8FP50XMP50-Ni-AL Electroless Nickel AFLAS 2.850″ 2.270″ 1.125″ 1/2-14 NPTF 1/2-14 NPTF 1.848″ 3500 PSIG 0.297″
9SS8FP50XMP50-Ni-ETP Electroless Nickel Extreme Viton® 2.850″ 2.270″ 1.125″ 1/2-14 NPTF 1/2-14 NPTF 1.848″ 3500 PSIG 0.297″

9SS12FP75XMP75-Z-V Zinc Viton 3.000″ 2.360″ 1.375″ 3/4-14 NPTF 3/4-14 NPTF 1.998″ 3500 PSIG 0.484″
9SS12FP75XMP75-Z-AL Zinc AFLAS 3.000″ 2.360″ 1.375″ 3/4-14 NPTF 3/4-14 NPTF 1.998″ 3500 PSIG 0.484″
9SS12FP75XMP75-Z-ETP Zinc Extreme Viton® 3.000″ 2.360″ 1.375″ 3/4-14 NPTF 3/4-14 NPTF 1.998″ 3500 PSIG 0.484″
9SS12FP75XMP75-Ni-V Electroless Nickel Viton 3.000″ 2.360″ 1.375″ 3/4-14 NPTF 3/4-14 NPTF 1.998″ 3500 PSIG 0.484″
9SS12FP75XMP75-Ni-AL Electroless Nickel AFLAS 3.000″ 2.360″ 1.375″ 3/4-14 NPTF 3/4-14 NPTF 1.998″ 3500 PSIG 0.484″
9SS12FP75XMP75-Ni-ETP Electroless Nickel Extreme Viton® 3.000″ 2.360″ 1.375″ 3/4-14 NPTF 3/4-14 NPTF 1.998″ 3500 PSIG 0.484″

9SS16FP100XMP100-Z-V Zinc Viton 3.780″ 3.020″ 1.625″ 1-11-1/2 NPTF 1-11-1/2 NPTF 2.370″ 3500 PSIG 0.550″
9SS16FP100XMP100-Z-AL Zinc AFLAS 3.780″ 3.020″ 1.625″ 1-11-1/2 NPTF 1-11-1/2 NPTF 2.370″ 3500 PSIG 0.550″
9SS16FP100XMP100-Z-ETP Zinc Extreme Viton® 3.780″ 3.020″ 1.625″ 1-11-1/2 NPTF 1-11-1/2 NPTF 2.370″ 3500 PSIG 0.550″
9SS16FP100XMP100-Ni-V Electroless Nickel Viton 3.780″ 3.020″ 1.625″ 1-11-1/2 NPTF 1-11-1/2 NPTF 2.370″ 3500 PSIG 0.550″
9SS16FP100XMP100-Ni-AL Electroless Nickel AFLAS 3.780″ 3.020″ 1.625″ 1-11-1/2 NPTF 1-11-1/2 NPTF 2.370″ 3500 PSIG 0.550″
9SS16FP100XMP100-Ni-ETP Electroless Nickel Extreme Viton® 3.780″ 3.020″ 1.625″ 1-11-1/2 NPTF 1-11-1/2 NPTF 2.370″ 3500 PSIG 0.550″

9SS20FP125XMP125-Z-V Zinc Viton 4.300″ 3.285″ 2.000″ 1-1/4-11-1/2 NPTF 1-1/4-11-1/2 NPTF 2.987″ 3500 PSIG 0.827″
9SS20FP125XMP125-Z-AL Zinc AFLAS 4.300″ 3.285″ 2.000″ 1-1/4-11-1/2 NPTF 1-1/4-11-1/2 NPTF 2.987″ 3500 PSIG 0.827″
9SS20FP125XMP125-Z-ETP Zinc Extreme Viton® 4.300″ 3.285″ 2.000″ 1-1/4-11-1/2 NPTF 1-1/4-11-1/2 NPTF 2.987″ 3500 PSIG 0.827″
9SS20FP125XMP125-Ni-V Electroless Nickel Viton 4.300″ 3.285″ 2.000″ 1-1/4-11-1/2 NPTF 1-1/4-11-1/2 NPTF 2.987″ 3500 PSIG 0.827″
9SS20FP125XMP125-Ni-AL Electroless Nickel AFLAS 4.300″ 3.285″ 2.000″ 1-1/4-11-1/2 NPTF 1-1/4-11-1/2 NPTF 2.987″ 3500 PSIG 0.827″
9SS20FP125XMP125-Ni-ETP Electroless Nickel Extreme Viton® 4.300″ 3.285″ 2.000″ 1-1/4-11-1/2 NPTF 1-1/4-11-1/2 NPTF 2.987″ 3500 PSIG 0.827″

9SS24FP150XMP150-Ni-V Electroless Nickel Viton 5.190″ 4.040″ 2.375″ 1-1/2-11-1/2 NPTF 1-1/2-11-1/2 NPTF 3.050″ 3500 PSIG 0.944″
9SS24FP150XMP150-Ni-AL Electroless Nickel AFLAS 5.190″ 4.040″ 2.375″ 1-1/2-11-1/2 NPTF 1-1/2-11-1/2 NPTF 3.050″ 3500 PSIG 0.944″
9SS24FP150XMP150-Ni-ETP Electroless Nickel Extreme Viton® 5.190″ 4.040″ 2.375″ 1-1/2-11-1/2 NPTF 1-1/2-11-1/2 NPTF 3.050″ 3500 PSIG 0.944″
