9SS16FP100XFO16-Ni-V By Super Swivel | 5443-Ni-V | 1-11-1/2 Female Pipe NPTF X 1-5/16-12 Female O-Ring ORB | 0.827" Through Hole | 90° Elbow | Electroless Nickel | Viton Seal
9SS16FP100XFO16-Ni-V By Super Swivel | 5443-Ni-V | 1-11-1/2 Female Pipe NPTF X 1-5/16-12 Female O-Ring ORB | 0.827" Through Hole | 90° Elbow | Electroless Nickel | Viton Seal - Image 2
9SS16FP100XFO16-Ni-V By Super Swivel | 5443-Ni-V | 1-11-1/2 Female Pipe NPTF X 1-5/16-12 Female O-Ring ORB | 0.827" Through Hole | 90° Elbow | Electroless Nickel | Viton Seal -Hose Ware House 9ss4fp25xfo6 z v 652751e2 eee8 46fa ab46 77d67c64a0d8

9SS16FP100XFO16-Ni-V By Super Swivel | 5443-Ni-V | 1-11-1/2 Female Pipe NPTF X 1-5/16-12 Female O-Ring ORB | 0.827″ Through Hole | 90° Elbow | Electroless Nickel | Viton Seal

Original price was: $96.83.Current price is: $67.78.

SKU: AG9ZZ 1482669588516 Categories: , Tags: , , , , , , , , , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers
Features:
  • 90° Swivels rotating joints provide free rotation on one axis with a right-angle change of path.
  • They reduce the complexity of hose lines providing for minimal friction and allowing free movement of hoses and piping.
  • 90° Super Swivels allow for sharp corners with reduced risk of kinks and flow restriction and free rotation.
  • Super Swivels ball bearing race design withstands heavy side loads preventing premature seal wear and leaks.
  • Super Swivels connect directly to hose lines without adapters reducing overall costs of hydraulics.
  • No Kinks – No Hose Twisting.
Notes:
  • Super Swivels are not recommended for breathing air/oxygen or steam.
  • All swivels have 4 to 1 proof pressure, except 10,000 PSI = 3 to 1 proof pressure.
  • Any series stem will fit with the same series body.
Base Material and Plating:
  • Super Swivels are manufactured from Carbon Steel or 304 and 440C Stainless Steel
  • Carbon Steel Zinc (Z) Plating is recommended for non-corrosive applications, i.e. hydraulic, pneumatic, etc.
  • Carbon Steel Nickel (NI) Plating is recommended for mildly corrosive environments, i.e. water, mild chemicals, solvents, etc.
Seal Material:
  • (V) Viton® (Fluorocarbon) – For most petroleum based applications. (-15 deg. F to 250 deg. F)
  • (AL) Aflas® (Tetrafluoroethylene-propylene copolymer) – Better resistance to many individual chemicals. For service in high temperature environments. (Low temperature limitations.) (+32 deg. F to 400 deg. F)
  • (ETP) Extreme Viton® – High resistance to many individual chemicals. (-6ºF to 437ºF)
9SS16FP100XFO16-Ni-V By Super Swivel | 5443-Ni-V | 1-11-1/2 Female Pipe NPTF X 1-5/16-12 Female O-Ring ORB | 0.827" Through Hole | 90° Elbow | Electroless Nickel | Viton Seal -Hose Ware House 9SS4FP25XFO6 Z

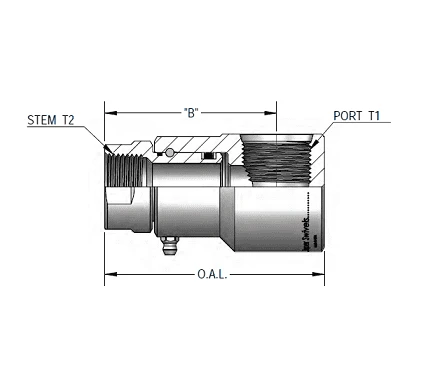

Part Number Material Seal Overall
Length		 Dim.
B		 Dim.
D Ø		 Wrench/Hex Port T1 Stem T2 SWG.
Radius		 Max
PSIG		 Through
Hole
9SS4FP25XFO6-Z-V Zinc Viton 2.510″ 2.000″ 1.292″ 0.750″ 9/16-18 UN 1/4-18 NPTF 0.541″ 5000 PSIG 0.250″
9SS4FP25XFO6-Z-AL Zinc AFLAS 2.510″ 2.000″ 1.292″ 0.750″ 9/16-18 UN 1/4-18 NPTF 0.541″ 5000 PSIG 0.250″
9SS4FP25XFO6-Z-ETP Zinc Extreme Viton® 2.510″ 2.000″ 1.292″ 0.750″ 9/16-18 UN 1/4-18 NPTF 0.541″ 5000 PSIG 0.250″
9SS4FP25XFO6-Ni-V Electroless Nickel Viton 2.510″ 2.000″ 1.292″ 0.750″ 9/16-18 UN 1/4-18 NPTF 0.541″ 5000 PSIG 0.250″
9SS4FP25XFO6-Ni-AL Electroless Nickel AFLAS 2.510″ 2.000″ 1.292″ 0.750″ 9/16-18 UN 1/4-18 NPTF 0.541″ 5000 PSIG 0.250″
9SS4FP25XFO6-Ni-ETP Electroless Nickel Extreme Viton® 2.510″ 2.000″ 1.292″ 0.750″ 9/16-18 UN 1/4-18 NPTF 0.541″ 5000 PSIG 0.250″

9SS8FP38XFO8-Z-V Zinc Viton 2.670″ 2.125″ 1.662″ 0.875″ 3/4-16 UN 3/8-18 NPTF 0.703″ 5000 PSIG 0.530″
9SS8FP38XFO8-Z-AL Zinc AFLAS 2.670″ 2.125″ 1.662″ 0.875″ 3/4-16 UN 3/8-18 NPTF 0.703″ 5000 PSIG 0.530″
9SS8FP38XFO8-Z-ETP Zinc Extreme Viton® 2.670″ 2.125″ 1.662″ 0.875″ 3/4-16 UN 3/8-18 NPTF 0.703″ 5000 PSIG 0.530″
9SS8FP38XFO8-Ni-V Electroless Nickel Viton 2.670″ 2.125″ 1.662″ 0.875″ 3/4-16 UN 3/8-18 NPTF 0.703″ 5000 PSIG 0.530″
9SS8FP38XFO8-Ni-AL Electroless Nickel AFLAS 2.670″ 2.125″ 1.662″ 0.875″ 3/4-16 UN 3/8-18 NPTF 0.703″ 5000 PSIG 0.530″
9SS8FP38XFO8-Ni-ETP Electroless Nickel Extreme Viton® 2.670″ 2.125″ 1.662″ 0.875″ 3/4-16 UN 3/8-18 NPTF 0.703″ 5000 PSIG 0.530″

9SS8FP50XFO8-Z-V Zinc Viton 2.820″ 2.270″ 1.662″ 1.125″ 3/4-16 UN 1/2-14 NPTF 0.703″ 5000 PSIG 0.530″
9SS8FP50XFO8-Z-AL Zinc AFLAS 2.820″ 2.270″ 1.662″ 1.125″ 3/4-16 UN 1/2-14 NPTF 0.703″ 5000 PSIG 0.530″
9SS8FP50XFO8-Z-ETP Zinc Extreme Viton® 2.820″ 2.270″ 1.662″ 1.125″ 3/4-16 UN 1/2-14 NPTF 0.703″ 5000 PSIG 0.530″
9SS8FP50XFO8-Ni-V Electroless Nickel Viton 2.820″ 2.270″ 1.662″ 1.125″ 3/4-16 UN 1/2-14 NPTF 0.703″ 5000 PSIG 0.530″
9SS8FP50XFO8-Ni-AL Electroless Nickel AFLAS 2.820″ 2.270″ 1.662″ 1.125″ 3/4-16 UN 1/2-14 NPTF 0.703″ 5000 PSIG 0.530″
9SS8FP50XFO8-Ni-ETP Electroless Nickel Extreme Viton® 2.820″ 2.270″ 1.662″ 1.125″ 3/4-16 UN 1/2-14 NPTF 0.703″ 5000 PSIG 0.530″

9SS12FP75XFO12-Z-V Zinc Viton 3.320″ 2.500″ 2.172″ 1.375″ 1-1/16-12 UN 3/4-14 NPTF 0.900″ 4500 PSIG 0.609″
9SS12FP75XFO12-Z-AL Zinc AFLAS 3.320″ 2.500″ 2.172″ 1.375″ 1-1/16-12 UN 3/4-14 NPTF 0.900″ 4500 PSIG 0.609″
9SS12FP75XFO12-Z-ETP Zinc Extreme Viton® 3.320″ 2.500″ 2.172″ 1.375″ 1-1/16-12 UN 3/4-14 NPTF 0.900″ 4500 PSIG 0.609″
9SS12FP75XFO12-Ni-V Electroless Nickel Viton 3.320″ 2.500″ 2.172″ 1.375″ 1-1/16-12 UN 3/4-14 NPTF 0.900″ 4500 PSIG 0.609″
9SS12FP75XFO12-Ni-AL Electroless Nickel AFLAS 3.320″ 2.500″ 2.172″ 1.375″ 1-1/16-12 UN 3/4-14 NPTF 0.900″ 4500 PSIG 0.609″
9SS12FP75XFO12-Ni-ETP Electroless Nickel Extreme Viton® 3.320″ 2.500″ 2.172″ 1.375″ 1-1/16-12 UN 3/4-14 NPTF 0.900″ 4500 PSIG 0.609″

9SS16FP100XFO16-Z-V Zinc Viton 4.200″ 3.280″ 2.482″ 1.625″ 1-5/16-12 UN 1-11-1/2 NPTF 1.009″ 4000 PSIG 0.827″
9SS16FP100XFO16-Z-AL Zinc AFLAS 4.200″ 3.280″ 2.482″ 1.625″ 1-5/16-12 UN 1-11-1/2 NPTF 1.009″ 4000 PSIG 0.827″
9SS16FP100XFO16-Z-ETP Zinc Extreme Viton® 4.200″ 3.280″ 2.482″ 1.625″ 1-5/16-12 UN 1-11-1/2 NPTF 1.009″ 4000 PSIG 0.827″
9SS16FP100XFO16-Ni-V Electroless Nickel Viton 4.200″ 3.280″ 2.482″ 1.625″ 1-5/16-12 UN 1-11-1/2 NPTF 1.009″ 4000 PSIG 0.827″
9SS16FP100XFO16-Ni-AL Electroless Nickel AFLAS 4.200″ 3.280″ 2.482″ 1.625″ 1-5/16-12 UN 1-11-1/2 NPTF 1.009″ 4000 PSIG 0.827″
9SS16FP100XFO16-Ni-ETP Electroless Nickel Extreme Viton® 4.200″ 3.280″ 2.482″ 1.625″ 1-5/16-12 UN 1-11-1/2 NPTF 1.009″ 4000 PSIG 0.827″

9SS20FP125XFO20-Z-V Zinc Viton 4.660″ 3.574″ 2.977″ 2.000″ 1-5/8-12 UN 1-1/4-11-1/2 NPTF 1.185″ 4000 PSIG 1.181″
9SS20FP125XFO20-Z-AL Zinc AFLAS 4.660″ 3.574″ 2.977″ 2.000″ 1-5/8-12 UN 1-1/4-11-1/2 NPTF 1.185″ 4000 PSIG 1.181″
9SS20FP125XFO20-Z-ETP Zinc Extreme Viton® 4.660″ 3.574″ 2.977″ 2.000″ 1-5/8-12 UN 1-1/4-11-1/2 NPTF 1.185″ 4000 PSIG 1.181″
9SS20FP125XFO20-Ni-V Electroless Nickel Viton 4.660″ 3.574″ 2.977″ 2.000″ 1-5/8-12 UN 1-1/4-11-1/2 NPTF 1.185″ 4000 PSIG 1.181″
9SS20FP125XFO20-Ni-AL Electroless Nickel AFLAS 4.660″ 3.574″ 2.977″ 2.000″ 1-5/8-12 UN 1-1/4-11-1/2 NPTF 1.185″ 4000 PSIG 1.181″
9SS20FP125XFO20-Ni-ETP Electroless Nickel Extreme Viton® 4.660″ 3.574″ 2.977″ 2.000″ 1-5/8-12 UN 1-1/4-11-1/2 NPTF 1.185″ 4000 PSIG 1.181″
