9SS16FFS16XMFS16-Z-ETP By Super Swivel | 7742-Z-ETP | 1-7/16-12 Female Face Seal FFS X 1-7/16-12 Male Face Seal MFS | 0.484" Through Hole | 90° Elbow | Zinc | Extreme Viton® Seal
9SS16FFS16XMFS16-Z-ETP By Super Swivel | 7742-Z-ETP | 1-7/16-12 Female Face Seal FFS X 1-7/16-12 Male Face Seal MFS | 0.484" Through Hole | 90° Elbow | Zinc | Extreme Viton® Seal - Image 2
9SS16FFS16XMFS16-Z-ETP By Super Swivel | 7742-Z-ETP | 1-7/16-12 Female Face Seal FFS X 1-7/16-12 Male Face Seal MFS | 0.484" Through Hole | 90° Elbow | Zinc | Extreme Viton® Seal -Hose Ware House 9ss4ffs6xmfs6 z v 540x fbedbbed 26d2 423c b488 3dcdc8ecee72

9SS16FFS16XMFS16-Z-ETP By Super Swivel | 7742-Z-ETP | 1-7/16-12 Female Face Seal FFS X 1-7/16-12 Male Face Seal MFS | 0.484″ Through Hole | 90° Elbow | Zinc | Extreme Viton® Seal

Original price was: $95.92.Current price is: $67.14.

SKU: AG9ZZ 5849683394725 Categories: , Tags: , , , , , , , , , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers
Features:
  • 90° Swivels rotating joints provide free rotation on one axis with a right-angle change of path.
  • They reduce the complexity of hose lines providing for minimal friction and allowing free movement of hoses and piping.
  • 90° Super Swivels allow for sharp corners with reduced risk of kinks and flow restriction and free rotation.
  • Super Swivels ball bearing race design withstands heavy side loads preventing premature seal wear and leaks.
  • Super Swivels connect directly to hose lines without adapters reducing overall costs of hydraulics.
  • No Kinks – No Hose Twisting.
Notes:
  • Super Swivels are not recommended for breathing air/oxygen or steam.
  • All swivels have 4 to 1 proof pressure, except 10,000 PSI = 3 to 1 proof pressure.
  • Any series stem will fit with the same series body.
Base Material and Plating:
  • Super Swivels are manufactured from Carbon Steel or 304 and 440C Stainless Steel
  • Carbon Steel Zinc (Z) Plating is recommended for non-corrosive applications, i.e. hydraulic, pneumatic, etc.
  • Carbon Steel Nickel (NI) Plating is recommended for mildly corrosive environments, i.e. water, mild chemicals, solvents, etc.
Seal Material:
  • (V) Viton® (Fluorocarbon) – For most petroleum based applications. (-15 deg. F to 250 deg. F)
  • (AL) Aflas® (Tetrafluoroethylene-propylene copolymer) – Better resistance to many individual chemicals. For service in high temperature environments. (Low temperature limitations.) (+32 deg. F to 400 deg. F)
  • (ETP) Extreme Viton® – High resistance to many individual chemicals. (-6ºF to 437ºF)

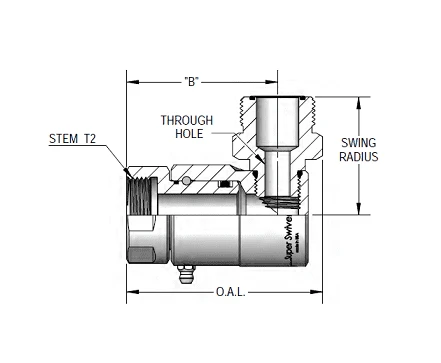

9SS16FFS16XMFS16-Z-ETP By Super Swivel | 7742-Z-ETP | 1-7/16-12 Female Face Seal FFS X 1-7/16-12 Male Face Seal MFS | 0.484" Through Hole | 90° Elbow | Zinc | Extreme Viton® Seal -Hose Ware House 9SS4FFS6XMFS6 Z
Part Number Material Seal Overall
Length		 Dim.
B		 Dim.
C		 Port T1 Stem T2 Wrench/Hex SWG.
Radius		 Max
PSIG		 Through
Hole
9SS4FFS6XMFS6-Z-V Zinc Viton 2.465″ 1.950″ 0.375″ 11/16-16 UN 11/16-16 UN 0.875″ 1.450″ 5000 PSIG 0.250″
9SS4FFS6XMFS6-Z-AL Zinc AFLAS 2.465″ 1.950″ 0.375″ 11/16-16 UN 11/16-16 UN 0.875″ 1.450″ 5000 PSIG 0.250″
9SS4FFS6XMFS6-Z-ETP Zinc Extreme Viton® 2.465″ 1.950″ 0.375″ 11/16-16 UN 11/16-16 UN 0.875″ 1.450″ 5000 PSIG 0.250″
9SS4FFS6XMFS6-NI-V Electroless Nickel Viton 2.465″ 1.950″ 0.375″ 11/16-16 UN 11/16-16 UN 0.875″ 1.450″ 5000 PSIG 0.250″
9SS4FFS6XMFS6-NI-AL Electroless Nickel AFLAS 2.465″ 1.950″ 0.375″ 11/16-16 UN 11/16-16 UN 0.875″ 1.450″ 5000 PSIG 0.250″
9SS4FFS6XMFS6-NI-ETP Electroless Nickel Extreme Viton® 2.465″ 1.950″ 0.375″ 11/16-16 UN 11/16-16 UN 0.875″ 1.450″ 5000 PSIG 0.250″

9SS8FFS8XMFS8-Z-V Zinc Viton 2.670″ 2.120″ 0.433″ 13/16-16 UN 13/16-16 UN 1.120″ 1.706″ 5000 PSIG 0.264″
9SS8FFS8XMFS8-Z-AL Zinc AFLAS 2.670″ 2.120″ 0.433″ 13/16-16 UN 13/16-16 UN 1.120″ 1.706″ 5000 PSIG 0.264″
9SS8FFS8XMFS8-Z-ETP Zinc Extreme Viton® 2.670″ 2.120″ 0.433″ 13/16-16 UN 13/16-16 UN 1.120″ 1.706″ 5000 PSIG 0.264″
9SS8FFS8XMFS8-NI-V Electroless Nickel Viton 2.670″ 2.120″ 0.433″ 13/16-16 UN 13/16-16 UN 1.120″ 1.706″ 5000 PSIG 0.264″
9SS8FFS8XMFS8-NI-AL Electroless Nickel AFLAS 2.670″ 2.120″ 0.433″ 13/16-16 UN 13/16-16 UN 1.120″ 1.706″ 5000 PSIG 0.264″
9SS8FFS8XMFS8-NI-ETP Electroless Nickel Extreme Viton® 2.670″ 2.120″ 0.433″ 13/16-16 UN 13/16-16 UN 1.120″ 1.706″ 5000 PSIG 0.264″

9SS8FFS10XMFS10-Z-V Zinc Viton 2.720″ 2.170″ 0.504″ 1-14 UN 1-14 UN 1.250″ 1.826″ 5000 PSIG 0.297″
9SS8FFS10XMFS10-Z-AL Zinc AFLAS 2.720″ 2.170″ 0.504″ 1-14 UN 1-14 UN 1.250″ 1.826″ 5000 PSIG 0.297″
9SS8FFS10XMFS10-Z-ETP Zinc Extreme Viton® 2.720″ 2.170″ 0.504″ 1-14 UN 1-14 UN 1.250″ 1.826″ 5000 PSIG 0.297″
9SS8FFS10XMFS10-NI-V Electroless Nickel Viton 2.720″ 2.170″ 0.504″ 1-14 UN 1-14 UN 1.250″ 1.826″ 5000 PSIG 0.297″
9SS8FFS10XMFS10-NI-AL Electroless Nickel AFLAS 2.720″ 2.170″ 0.504″ 1-14 UN 1-14 UN 1.250″ 1.826″ 5000 PSIG 0.297″
9SS8FFS10XMFS10-NI-ETP Electroless Nickel Extreme Viton® 2.720″ 2.170″ 0.504″ 1-14 UN 1-14 UN 1.250″ 1.826″ 5000 PSIG 0.297″

9SS12FFS12XMFS12-Z-V Zinc Viton 2.950″ 2.310″ 0.571″ 1-3/16-12 UN 1-3/16-12 UN 1.500″ 2.135″ 4500 PSIG 0.378″
9SS12FFS12XMFS12-Z-AL Zinc AFLAS 2.950″ 2.310″ 0.571″ 1-3/16-12 UN 1-3/16-12 UN 1.500″ 2.135″ 4500 PSIG 0.378″
9SS12FFS12XMFS12-Z-ETP Zinc Extreme Viton® 2.950″ 2.310″ 0.571″ 1-3/16-12 UN 1-3/16-12 UN 1.500″ 2.135″ 4500 PSIG 0.378″
9SS12FFS12XMFS12-NI-V Electroless Nickel Viton 2.950″ 2.310″ 0.571″ 1-3/16-12 UN 1-3/16-12 UN 1.500″ 2.135″ 4500 PSIG 0.378″
9SS12FFS12XMFS12-NI-AL Electroless Nickel AFLAS 2.950″ 2.310″ 0.571″ 1-3/16-12 UN 1-3/16-12 UN 1.500″ 2.135″ 4500 PSIG 0.378″
9SS12FFS12XMFS12-NI-ETP Electroless Nickel Extreme Viton® 2.950″ 2.310″ 0.571″ 1-3/16-12 UN 1-3/16-12 UN 1.500″ 2.135″ 4500 PSIG 0.378″

9SS16FFS16XMFS16-Z-V Zinc Viton 3.370″ 2.890″ 0.583″ 1-7/16-12 UN 1-7/16-12 UN 1.750″ 2.255″ 4000 PSIG 0.484″
9SS16FFS16XMFS16-Z-AL Zinc AFLAS 3.370″ 2.890″ 0.583″ 1-7/16-12 UN 1-7/16-12 UN 1.750″ 2.255″ 4000 PSIG 0.484″
9SS16FFS16XMFS16-Z-ETP Zinc Extreme Viton® 3.370″ 2.890″ 0.583″ 1-7/16-12 UN 1-7/16-12 UN 1.750″ 2.255″ 4000 PSIG 0.484″
9SS16FFS16XMFS16-NI-V Electroless Nickel Viton 3.370″ 2.890″ 0.583″ 1-7/16-12 UN 1-7/16-12 UN 1.750″ 2.255″ 4000 PSIG 0.484″
9SS16FFS16XMFS16-NI-AL Electroless Nickel AFLAS 3.370″ 2.890″ 0.583″ 1-7/16-12 UN 1-7/16-12 UN 1.750″ 2.255″ 4000 PSIG 0.484″
9SS16FFS16XMFS16-NI-ETP Electroless Nickel Extreme Viton® 3.370″ 2.890″ 0.583″ 1-7/16-12 UN 1-7/16-12 UN 1.750″ 2.255″ 4000 PSIG 0.484″

9SS20FFS20XMFS20-Z-V Zinc Viton 4.190″ 3.180″ 0.583″ 1-11/16-16 UN 1-11/16-16 UN 2.125″ 2.658″ 4000 PSIG 0.718″
9SS20FFS20XMFS20-Z-AL Zinc AFLAS 4.190″ 3.180″ 0.583″ 1-11/16-16 UN 1-11/16-16 UN 2.125″ 2.658″ 4000 PSIG 0.718″
9SS20FFS20XMFS20-Z-ETP Zinc Extreme Viton® 4.190″ 3.180″ 0.583″ 1-11/16-16 UN 1-11/16-16 UN 2.125″ 2.658″ 4000 PSIG 0.718″
9SS20FFS20XMFS20-NI-V Electroless Nickel Viton 4.190″ 3.180″ 0.583″ 1-11/16-16 UN 1-11/16-16 UN 2.125″ 2.658″ 4000 PSIG 0.718″
9SS20FFS20XMFS20-NI-AL Electroless Nickel AFLAS 4.190″ 3.180″ 0.583″ 1-11/16-16 UN 1-11/16-16 UN 2.125″ 2.658″ 4000 PSIG 0.718″
9SS20FFS20XMFS20-NI-ETP Electroless Nickel Extreme Viton® 4.190″ 3.180″ 0.583″ 1-11/16-16 UN 1-11/16-16 UN 2.125″ 2.658″ 4000 PSIG 0.718″

9SS24FFS24XMFS24-NI-V Electroless Nickel Viton 5.060″ 3.840″ 0.583″ 2-12 UN 2-12 UN 2.375″ 2.845″ 4000 PSIG 0.811″
9SS24FFS24XMFS24-NI-AL Electroless Nickel AFLAS 5.060″ 3.840″ 0.583″ 2-12 UN 2-12 UN 2.375″ 2.845″ 4000 PSIG 0.811″
9SS24FFS24XMFS24-NI-ETP Electroless Nickel Extreme Viton® 5.060″ 3.840″ 0.583″ 2-12 UN 2-12 UN 2.375″ 2.845″ 4000 PSIG 0.811″
