9SS12MJB12XPS75-Ni-AL By Super Swivel | 6644-Ni-AL | 1-1/16-12 Male 37° JIC Bulkhead X 3/4-14 Female Pipe Swivel NPSM | 0.521" Through Hole | 90° Elbow | Electroless Nickel | AFLAS Seal
9SS12MJB12XPS75-Ni-AL By Super Swivel | 6644-Ni-AL | 1-1/16-12 Male 37° JIC Bulkhead X 3/4-14 Female Pipe Swivel NPSM | 0.521" Through Hole | 90° Elbow | Electroless Nickel | AFLAS Seal - Image 2
9SS12MJB12XPS75-Ni-AL By Super Swivel | 6644-Ni-AL | 1-1/16-12 Male 37° JIC Bulkhead X 3/4-14 Female Pipe Swivel NPSM | 0.521" Through Hole | 90° Elbow | Electroless Nickel | AFLAS Seal -Hose Ware House 9ss4mjb6xps25 z v 3cd1a3ef bc2e 4a00 9aa4 006d651e97a4

9SS12MJB12XPS75-Ni-AL By Super Swivel | 6644-Ni-AL | 1-1/16-12 Male 37° JIC Bulkhead X 3/4-14 Female Pipe Swivel NPSM | 0.521″ Through Hole | 90° Elbow | Electroless Nickel | AFLAS Seal

Original price was: $84.74.Current price is: $59.32.

SKU: AG9ZZ 1482695409700 Categories: , Tags: , , , , , , , , , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers
Features:
  • 90° Swivels rotating joints provide free rotation on one axis with a right-angle change of path.
  • They reduce the complexity of hose lines providing for minimal friction and allowing free movement of hoses and piping.
  • 90° Super Swivels allow for sharp corners with reduced risk of kinks and flow restriction and free rotation.
  • Super Swivels ball bearing race design withstands heavy side loads preventing premature seal wear and leaks.
  • Super Swivels connect directly to hose lines without adapters reducing overall costs of hydraulics.
  • No Kinks – No Hose Twisting.
Notes:
  • Super Swivels are not recommended for breathing air/oxygen or steam.
  • All swivels have 4 to 1 proof pressure, except 10,000 PSI = 3 to 1 proof pressure.
  • Any series stem will fit with the same series body.
Base Material and Plating:
  • Super Swivels are manufactured from Carbon Steel or 304 and 440C Stainless Steel
  • Carbon Steel Zinc (Z) Plating is recommended for non-corrosive applications, i.e. hydraulic, pneumatic, etc.
  • Carbon Steel Nickel (NI) Plating is recommended for mildly corrosive environments, i.e. water, mild chemicals, solvents, etc.
Seal Material:
  • (V) Viton® (Fluorocarbon) – For most petroleum based applications. (-15 deg. F to 250 deg. F)
  • (AL) Aflas® (Tetrafluoroethylene-propylene copolymer) – Better resistance to many individual chemicals. For service in high temperature environments. (Low temperature limitations.) (+32 deg. F to 400 deg. F)
  • (ETP) Extreme Viton® – High resistance to many individual chemicals. (-6ºF to 437ºF)

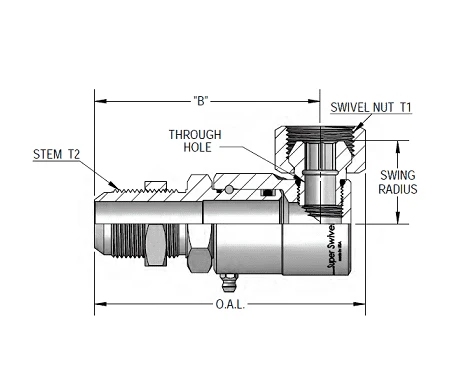

9SS12MJB12XPS75-Ni-AL By Super Swivel | 6644-Ni-AL | 1-1/16-12 Male 37° JIC Bulkhead X 3/4-14 Female Pipe Swivel NPSM | 0.521" Through Hole | 90° Elbow | Electroless Nickel | AFLAS Seal -Hose Ware House 9SS4MJB6XMP25 Z
Part Number Material Seal Overall
Length		 Dim.
B		 Wrench/Hex Port T1 Stem T2 SWG.
Radius		 Max
PSIG		 Through
Hole
9SS4MJB6XMP25-Z-V Zinc Viton 2.837″ 2.370″ 0.812″ 1/4-18 NPTF 9/16-18 UN 1.454″ 3500 PSIG 0.250″
9SS4MJB6XMP25-Z-AL Zinc AFLAS 2.837″ 2.370″ 0.812″ 1/4-18 NPTF 9/16-18 UN 1.454″ 3500 PSIG 0.250″
9SS4MJB6XMP25-Ni-V Electroless Nickel Viton 2.837″ 2.370″ 0.812″ 1/4-18 NPTF 9/16-18 UN 1.454″ 3500 PSIG 0.250″
9SS4MJB6XMP25-Ni-AL Electroless Nickel AFLAS 2.837″ 2.370″ 0.812″ 1/4-18 NPTF 9/16-18 UN 1.454″ 3500 PSIG 0.250″

9SS8MJB8XMP38-Z-V Zinc Viton 3.805″ 3.258″ 1.000″ 3/8-18 NPTF 3/4-16 UN 1.556″ 3500 PSIG 0.297″
9SS8MJB8XMP38-Z-AL Zinc AFLAS 3.805″ 3.258″ 1.000″ 3/8-18 NPTF 3/4-16 UN 1.556″ 3500 PSIG 0.297″
9SS8MJB8XMP38-Z-ETP Zinc Extreme Viton® 3.805″ 3.258″ 1.000″ 3/8-18 NPTF 3/4-16 UN 1.556″ 3500 PSIG 0.297″
9SS8MJB8XMP38-Ni-V Electroless Nickel Viton 3.805″ 3.258″ 1.000″ 3/8-18 NPTF 3/4-16 UN 1.556″ 3500 PSIG 0.297″
9SS8MJB8XMP38-Ni-AL Electroless Nickel AFLAS 3.805″ 3.258″ 1.000″ 3/8-18 NPTF 3/4-16 UN 1.556″ 3500 PSIG 0.297″
9SS8MJB8XMP38-Ni-ETP Electroless Nickel Extreme Viton® 3.805″ 3.258″ 1.000″ 3/8-18 NPTF 3/4-16 UN 1.556″ 3500 PSIG 0.297″

9SS8MJB8XMP50-Z-V Zinc Viton 3.805″ 3.258″ 1.000″ 1/2-14 NPTF 3/4-16 UN 1.848″ 3500 PSIG 0.297″
9SS8MJB8XMP50-Z-AL Zinc AFLAS 3.805″ 3.258″ 1.000″ 1/2-14 NPTF 3/4-16 UN 1.848″ 3500 PSIG 0.297″
9SS8MJB8XMP50-Z-ETP Zinc Extreme Viton® 3.805″ 3.258″ 1.000″ 1/2-14 NPTF 3/4-16 UN 1.848″ 3500 PSIG 0.297″
9SS8MJB8XMP50-Ni-V Electroless Nickel Viton 3.805″ 3.258″ 1.000″ 1/2-14 NPTF 3/4-16 UN 1.848″ 3500 PSIG 0.297″
9SS8MJB8XMP50-Ni-AL Electroless Nickel AFLAS 3.805″ 3.258″ 1.000″ 1/2-14 NPTF 3/4-16 UN 1.848″ 3500 PSIG 0.297″
9SS8MJB8XMP50-Ni-ETP Electroless Nickel Extreme Viton® 3.805″ 3.258″ 1.000″ 1/2-14 NPTF 3/4-16 UN 1.848″ 3500 PSIG 0.297″

9SS8MJB10XMP50-Z-V Zinc Viton 4.025″ 3.478″ 1.125″ 1/2-14 NPTF 7/8-14 UN 1.848″ 3500 PSIG 0.297″
9SS8MJB10XMP50-Z-AL Zinc AFLAS 4.025″ 3.478″ 1.125″ 1/2-14 NPTF 7/8-14 UN 1.848″ 3500 PSIG 0.297″
9SS8MJB10XMP50-Z-ETP Zinc Extreme Viton® 4.025″ 3.478″ 1.125″ 1/2-14 NPTF 7/8-14 UN 1.848″ 3500 PSIG 0.297″
9SS8MJB10XMP50-Ni-V Electroless Nickel Viton 4.025″ 3.478″ 1.125″ 1/2-14 NPTF 7/8-14 UN 1.848″ 3500 PSIG 0.297″
9SS8MJB10XMP50-Ni-AL Electroless Nickel AFLAS 4.025″ 3.478″ 1.125″ 1/2-14 NPTF 7/8-14 UN 1.848″ 3500 PSIG 0.297″
9SS8MJB10XMP50-Ni-ETP Electroless Nickel Extreme Viton® 4.025″ 3.478″ 1.125″ 1/2-14 NPTF 7/8-14 UN 1.848″ 3500 PSIG 0.297″

9SS12MJB12XMP75-Z-V Zinc Viton 4.445″ 3.805″ 1.375″ 3/4-14 NPTF 1-1/16-12 UN 1.998″ 3500 PSIG 0.484″
9SS12MJB12XMP75-Z-AL Zinc AFLAS 4.445″ 3.805″ 1.375″ 3/4-14 NPTF 1-1/16-12 UN 1.998″ 3500 PSIG 0.484″
9SS12MJB12XMP75-Z-ETP Zinc Extreme Viton® 4.445″ 3.805″ 1.375″ 3/4-14 NPTF 1-1/16-12 UN 1.998″ 3500 PSIG 0.484″
9SS12MJB12XMP75-Ni-V Electroless Nickel Viton 4.445″ 3.805″ 1.375″ 3/4-14 NPTF 1-1/16-12 UN 1.998″ 3500 PSIG 0.484″
9SS12MJB12XMP75-Ni-AL Electroless Nickel AFLAS 4.445″ 3.805″ 1.375″ 3/4-14 NPTF 1-1/16-12 UN 1.998″ 3500 PSIG 0.484″
9SS12MJB12XMP75-Ni-ETP Electroless Nickel Extreme Viton® 4.445″ 3.805″ 1.375″ 3/4-14 NPTF 1-1/16-12 UN 1.998″ 3500 PSIG 0.484″

9SS16MJB16XMP100-Z-V Zinc Viton 4.905″ 4.317″ 1.625″ 1-11-1/2 NPTF 1-5/16-12 UN 2.370″ 3500 PSIG 0.550″
9SS16MJB16XMP100-Z-AL Zinc AFLAS 4.905″ 4.317″ 1.625″ 1-11-1/2 NPTF 1-5/16-12 UN 2.370″ 3500 PSIG 0.550″
9SS16MJB16XMP100-Z-ETP Zinc Extreme Viton® 4.905″ 4.317″ 1.625″ 1-11-1/2 NPTF 1-5/16-12 UN 2.370″ 3500 PSIG 0.550″
9SS16MJB16XMP100-Ni-V Electroless Nickel Viton 4.905″ 4.317″ 1.625″ 1-11-1/2 NPTF 1-5/16-12 UN 2.370″ 3500 PSIG 0.550″
9SS16MJB16XMP100-Ni-AL Electroless Nickel AFLAS 4.905″ 4.317″ 1.625″ 1-11-1/2 NPTF 1-5/16-12 UN 2.370″ 3500 PSIG 0.550″
9SS16MJB16XMP100-Ni-ETP Electroless Nickel Extreme Viton® 4.905″ 4.317″ 1.625″ 1-11-1/2 NPTF 1-5/16-12 UN 2.370″ 3500 PSIG 0.550″

9SS20MJB20XMP125-Z-V Zinc Viton 5.575″ 4.730″ 1.875″ 1-1/4-11-1/2 NPTF 1-5/8-12 UN 2.987″ 3500 PSIG 0.827″
9SS20MJB20XMP125-Z-AL Zinc AFLAS 5.575″ 4.730″ 1.875″ 1-1/4-11-1/2 NPTF 1-5/8-12 UN 2.987″ 3500 PSIG 0.827″
9SS20MJB20XMP125-Z-ETP Zinc Extreme Viton® 5.575″ 4.730″ 1.875″ 1-1/4-11-1/2 NPTF 1-5/8-12 UN 2.987″ 3500 PSIG 0.827″
9SS20MJB20XMP125-Ni-V Electroless Nickel Viton 5.575″ 4.730″ 1.875″ 1-1/4-11-1/2 NPTF 1-5/8-12 UN 2.987″ 3500 PSIG 0.827″
9SS20MJB20XMP125-Ni-AL Electroless Nickel AFLAS 5.575″ 4.730″ 1.875″ 1-1/4-11-1/2 NPTF 1-5/8-12 UN 2.987″ 3500 PSIG 0.827″
9SS20MJB20XMP125-Ni-ETP Electroless Nickel Extreme Viton® 5.575″ 4.730″ 1.875″ 1-1/4-11-1/2 NPTF 1-5/8-12 UN 2.987″ 3500 PSIG 0.827″
