9SS12FP75XPS75-Z-ETP By Super Swivel | 6232-Z-ETP | 3/4-14 Female Pipe NPTF X 3/4-14 Female Pipe Swivel NPSM | 0.521" Through Hole | 90° Elbow | Zinc | Extreme Viton® Seal
9SS12FP75XPS75-Z-ETP By Super Swivel | 6232-Z-ETP | 3/4-14 Female Pipe NPTF X 3/4-14 Female Pipe Swivel NPSM | 0.521" Through Hole | 90° Elbow | Zinc | Extreme Viton® Seal - Image 2
9SS12FP75XPS75-Z-ETP By Super Swivel | 6232-Z-ETP | 3/4-14 Female Pipe NPTF X 3/4-14 Female Pipe Swivel NPSM | 0.521" Through Hole | 90° Elbow | Zinc | Extreme Viton® Seal -Hose Ware House 9ss4fp25xps25 z v 540x 73d8b49d 19b7 4d3b 89a3 d50ee60dab19

9SS12FP75XPS75-Z-ETP By Super Swivel | 6232-Z-ETP | 3/4-14 Female Pipe NPTF X 3/4-14 Female Pipe Swivel NPSM | 0.521″ Through Hole | 90° Elbow | Zinc | Extreme Viton® Seal

Original price was: $79.60.Current price is: $55.72.

SKU: AG9ZZ 5849671073957 Category: Tags: , , , , , , , , , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers
Features:
  • 90° Swivels rotating joints provide free rotation on one axis with a right-angle change of path.
  • They reduce the complexity of hose lines providing for minimal friction and allowing free movement of hoses and piping.
  • 90° Super Swivels allow for sharp corners with reduced risk of kinks and flow restriction and free rotation.
  • Super Swivels ball bearing race design withstands heavy side loads preventing premature seal wear and leaks.
  • Super Swivels connect directly to hose lines without adapters reducing overall costs of hydraulics.
  • No Kinks – No Hose Twisting.
Notes:
  • Super Swivels are not recommended for breathing air/oxygen or steam.
  • All swivels have 4 to 1 proof pressure, except 10,000 PSI = 3 to 1 proof pressure.
  • Any series stem will fit with the same series body.
Base Material and Plating:
  • Super Swivels are manufactured from Carbon Steel or 304 and 440C Stainless Steel
  • Carbon Steel Zinc (Z) Plating is recommended for non-corrosive applications, i.e. hydraulic, pneumatic, etc.
  • Carbon Steel Nickel (NI) Plating is recommended for mildly corrosive environments, i.e. water, mild chemicals, solvents, etc.
Seal Material:
  • (V) Viton® (Fluorocarbon) – For most petroleum based applications. (-15 deg. F to 250 deg. F)
  • (AL) Aflas® (Tetrafluoroethylene-propylene copolymer) – Better resistance to many individual chemicals. For service in high temperature environments. (Low temperature limitations.) (+32 deg. F to 400 deg. F)
  • (ETP) Extreme Viton® – High resistance to many individual chemicals. (-6ºF to 437ºF)
9SS12FP75XPS75-Z-ETP By Super Swivel | 6232-Z-ETP | 3/4-14 Female Pipe NPTF X 3/4-14 Female Pipe Swivel NPSM | 0.521" Through Hole | 90° Elbow | Zinc | Extreme Viton® Seal -Hose Ware House 9SS4FP25XPS25 Z

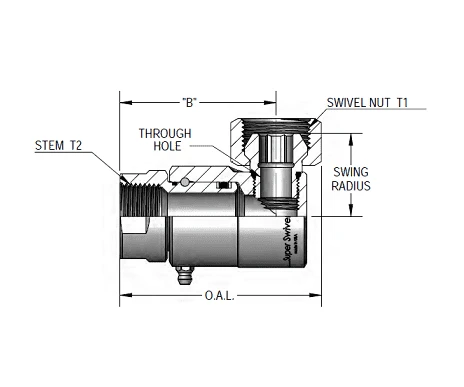

Part Number Material Seal Overall
Length		 Dim.
B		 Swivel
Hex		 Wrench/Hex Swivel
Nut T1		 Stem T2 SWG.
Radius		 Max
PSIG		 Through
Hole
9SS4FP25XPS25-Z-V Zinc Viton 2.510″ 2.000″ 0.687″ 0.750″ 1/4-18 NPSM 1/4-18 NPTF 1.326″ 3500 PSIG 0.218″
9SS4FP25XPS25-Z-AL Zinc AFLAS 2.510″ 2.000″ 0.687″ 0.750″ 1/4-18 NPSM 1/4-18 NPTF 1.326″ 3500 PSIG 0.218″
9SS4FP25XPS25-Z-ETP Zinc Extreme Viton® 2.510″ 2.000″ 0.687″ 0.750″ 1/4-18 NPSM 1/4-18 NPTF 1.326″ 3500 PSIG 0.218″
9SS4FP25XPS25-Ni-V Electroless Nickel Viton 2.510″ 2.000″ 0.687″ 0.750″ 1/4-18 NPSM 1/4-18 NPTF 1.326″ 3500 PSIG 0.218″
9SS4FP25XPS25-Ni-AL Electroless Nickel AFLAS 2.510″ 2.000″ 0.687″ 0.750″ 1/4-18 NPSM 1/4-18 NPTF 1.326″ 3500 PSIG 0.218″
9SS4FP25XPS25-Ni-ETP Electroless Nickel Extreme Viton® 2.510″ 2.000″ 0.687″ 0.750″ 1/4-18 NPSM 1/4-18 NPTF 1.326″ 3500 PSIG 0.218″

9SS4FP25XPS38-Z-V Zinc Viton 2.510″ 2.000″ 0.875″ 0.750″ 3/8-18 NPSM 1/4-18 NPTF 1.555″ 3500 PSIG 0.250″
9SS4FP25XPS38-Z-AL Zinc AFLAS 2.510″ 2.000″ 0.875″ 0.750″ 3/8-18 NPSM 1/4-18 NPTF 1.555″ 3500 PSIG 0.250″
9SS4FP25XPS38-Z-ETP Zinc Extreme Viton® 2.510″ 2.000″ 0.875″ 0.750″ 3/8-18 NPSM 1/4-18 NPTF 1.555″ 3500 PSIG 0.250″
9SS4FP25XPS38-Ni-V Electroless Nickel Viton 2.510″ 2.000″ 0.875″ 0.750″ 3/8-18 NPSM 1/4-18 NPTF 1.555″ 3500 PSIG 0.250″
9SS4FP25XPS38-Ni-AL Electroless Nickel AFLAS 2.510″ 2.000″ 0.875″ 0.750″ 3/8-18 NPSM 1/4-18 NPTF 1.555″ 3500 PSIG 0.250″
9SS4FP25XPS38-Ni-ETP Electroless Nickel Extreme Viton® 2.510″ 2.000″ 0.875″ 0.750″ 3/8-18 NPSM 1/4-18 NPTF 1.555″ 3500 PSIG 0.250″

9SS8FP38XPS38-Z-V Zinc Viton 2.670″ 2.120″ 0.875″ 0.875″ 3/8-18 NPSM 3/8-18 NPTF 1.437″ 3500 PSIG 0.327″
9SS8FP38XPS38-Z-AL Zinc AFLAS 2.670″ 2.120″ 0.875″ 0.875″ 3/8-18 NPSM 3/8-18 NPTF 1.437″ 3500 PSIG 0.327″
9SS8FP38XPS38-Z-ETP Zinc Extreme Viton® 2.670″ 2.120″ 0.875″ 0.875″ 3/8-18 NPSM 3/8-18 NPTF 1.437″ 3500 PSIG 0.327″
9SS8FP38XPS38-Ni-V Electroless Nickel Viton 2.670″ 2.120″ 0.875″ 0.875″ 3/8-18 NPSM 3/8-18 NPTF 1.437″ 3500 PSIG 0.327″
9SS8FP38XPS38-Ni-AL Electroless Nickel AFLAS 2.670″ 2.120″ 0.875″ 0.875″ 3/8-18 NPSM 3/8-18 NPTF 1.437″ 3500 PSIG 0.327″
9SS8FP38XPS38-Ni-ETP Electroless Nickel Extreme Viton® 2.670″ 2.120″ 0.875″ 0.875″ 3/8-18 NPSM 3/8-18 NPTF 1.437″ 3500 PSIG 0.327″

9SS8FP50XPS50-Z-V Zinc Viton 2.850″ 2.270″ 1.000″ 1.125″ 1/2-14 NPSM 1/2-14 NPTF 1.521″ 3500 PSIG 0.390″
9SS8FP50XPS50-Z-AL Zinc AFLAS 2.850″ 2.270″ 1.000″ 1.125″ 1/2-14 NPSM 1/2-14 NPTF 1.521″ 3500 PSIG 0.390″
9SS8FP50XPS50-Z-ETP Zinc Extreme Viton® 2.850″ 2.270″ 1.000″ 1.125″ 1/2-14 NPSM 1/2-14 NPTF 1.521″ 3500 PSIG 0.390″
9SS8FP50XPS50-Ni-V Electroless Nickel Viton 2.850″ 2.270″ 1.000″ 1.125″ 1/2-14 NPSM 1/2-14 NPTF 1.521″ 3500 PSIG 0.390″
9SS8FP50XPS50-Ni-AL Electroless Nickel AFLAS 2.850″ 2.270″ 1.000″ 1.125″ 1/2-14 NPSM 1/2-14 NPTF 1.521″ 3500 PSIG 0.390″
9SS8FP50XPS50-Ni-ETP Electroless Nickel Extreme Viton® 2.850″ 2.270″ 1.000″ 1.125″ 1/2-14 NPSM 1/2-14 NPTF 1.521″ 3500 PSIG 0.390″

9SS12FP75XPS75-Z-V Zinc Viton 3.080″ 2.360″ 1.250″ 1.375″ 3/4-14 NPSM 3/4-14 NPTF 1.664″ 3500 PSIG 0.521″
9SS12FP75XPS75-Z-AL Zinc AFLAS 3.080″ 2.360″ 1.250″ 1.375″ 3/4-14 NPSM 3/4-14 NPTF 1.664″ 3500 PSIG 0.521″
9SS12FP75XPS75-Z-ETP Zinc Extreme Viton® 3.080″ 2.360″ 1.250″ 1.375″ 3/4-14 NPSM 3/4-14 NPTF 1.664″ 3500 PSIG 0.521″
9SS12FP75XPS75-Ni-V Electroless Nickel Viton 3.080″ 2.360″ 1.250″ 1.375″ 3/4-14 NPSM 3/4-14 NPTF 1.664″ 3500 PSIG 0.521″
9SS12FP75XPS75-Ni-AL Electroless Nickel AFLAS 3.080″ 2.360″ 1.250″ 1.375″ 3/4-14 NPSM 3/4-14 NPTF 1.664″ 3500 PSIG 0.521″
9SS12FP75XPS75-Ni-ETP Electroless Nickel Extreme Viton® 3.080″ 2.360″ 1.250″ 1.375″ 3/4-14 NPSM 3/4-14 NPTF 1.664″ 3500 PSIG 0.521″

9SS16FP100XPS100-Z-V Zinc Viton 3.850″ 2.980″ 1.500″ 1.625″ 1-11-1/2 NPSM 1-11-1/2 NPTF 1.956″ 3500 PSIG 0.590″
9SS16FP100XPS100-Z-AL Zinc AFLAS 3.850″ 2.980″ 1.500″ 1.625″ 1-11-1/2 NPSM 1-11-1/2 NPTF 1.956″ 3500 PSIG 0.590″
9SS16FP100XPS100-Z-ETP Zinc Extreme Viton® 3.850″ 2.980″ 1.500″ 1.625″ 1-11-1/2 NPSM 1-11-1/2 NPTF 1.956″ 3500 PSIG 0.590″
9SS16FP100XPS100-Ni-V Electroless Nickel Viton 3.850″ 2.980″ 1.500″ 1.625″ 1-11-1/2 NPSM 1-11-1/2 NPTF 1.956″ 3500 PSIG 0.590″
9SS16FP100XPS100-Ni-AL Electroless Nickel AFLAS 3.850″ 2.980″ 1.500″ 1.625″ 1-11-1/2 NPSM 1-11-1/2 NPTF 1.956″ 3500 PSIG 0.590″
9SS16FP100XPS100-Ni-ETP Electroless Nickel Extreme Viton® 3.850″ 2.980″ 1.500″ 1.625″ 1-11-1/2 NPSM 1-11-1/2 NPTF 1.956″ 3500 PSIG 0.590″

9SS20FP125XPS125-Z-V Zinc Viton 4.365″ 3.285″ 1.875″ 2.000″ 1-1/4-11-1/2 NPSM 1-1/4-11-1/2 NPTF 2.570″ 3500 PSIG 0.906″
9SS20FP125XPS125-Z-AL Zinc AFLAS 4.365″ 3.285″ 1.875″ 2.000″ 1-1/4-11-1/2 NPSM 1-1/4-11-1/2 NPTF 2.570″ 3500 PSIG 0.906″
9SS20FP125XPS125-Z-ETP Zinc Extreme Viton® 4.365″ 3.285″ 1.875″ 2.000″ 1-1/4-11-1/2 NPSM 1-1/4-11-1/2 NPTF 2.570″ 3500 PSIG 0.906″
9SS20FP125XPS125-Ni-V Electroless Nickel Viton 4.365″ 3.285″ 1.875″ 2.000″ 1-1/4-11-1/2 NPSM 1-1/4-11-1/2 NPTF 2.570″ 3500 PSIG 0.906″
9SS20FP125XPS125-Ni-AL Electroless Nickel AFLAS 4.365″ 3.285″ 1.875″ 2.000″ 1-1/4-11-1/2 NPSM 1-1/4-11-1/2 NPTF 2.570″ 3500 PSIG 0.906″
9SS20FP125XPS125-Ni-ETP Electroless Nickel Extreme Viton® 4.365″ 3.285″ 1.875″ 2.000″ 1-1/4-11-1/2 NPSM 1-1/4-11-1/2 NPTF 2.570″ 3500 PSIG 0.906″

9SS24FP150XPS150-Ni-V Electroless Nickel Viton 5.260″ 4.040″ 2.125″ 2.375″ 1-1/2-11-1/2 NPSM 1-1/2-11-1/2 NPTF 2.630″ 3500 PSIG 1.040″
9SS24FP150XPS150-Ni-AL Electroless Nickel AFLAS 5.260″ 4.040″ 2.125″ 2.375″ 1-1/2-11-1/2 NPSM 1-1/2-11-1/2 NPTF 2.630″ 3500 PSIG 1.040″
9SS24FP150XPS150-Ni-ETP Electroless Nickel Extreme Viton® 5.260″ 4.040″ 2.125″ 2.375″ 1-1/2-11-1/2 NPSM 1-1/2-11-1/2 NPTF 2.630″ 3500 PSIG 1.040″
