9DP4MFS6XMFS6-NI-ETP By Super Swivel | DP7605-NI-ETP | Dual Plane Swivel | 11/16-16 Male Face Seal MFS X 11/16-16 Male Face Seal MFS | 0.250" Through Hole | 90° Elbow | Electroless Nickel | Extreme Viton® Seal
9DP4MFS6XMFS6-NI-ETP By Super Swivel | DP7605-NI-ETP | Dual Plane Swivel | 11/16-16 Male Face Seal MFS X 11/16-16 Male Face Seal MFS | 0.250" Through Hole | 90° Elbow | Electroless Nickel | Extreme Viton® Seal - Image 2
9DP4MFS6XMFS6-NI-ETP By Super Swivel | DP7605-NI-ETP | Dual Plane Swivel | 11/16-16 Male Face Seal MFS X 11/16-16 Male Face Seal MFS | 0.250" Through Hole | 90° Elbow | Electroless Nickel | Extreme Viton® Seal -Hose Ware House 9dp4mfs6xmfs6 z v 360x 64a14a9a b28c 40d6 bfac 8b2fac4ccea7

9DP4MFS6XMFS6-NI-ETP By Super Swivel | DP7605-NI-ETP | Dual Plane Swivel | 11/16-16 Male Face Seal MFS X 11/16-16 Male Face Seal MFS | 0.250″ Through Hole | 90° Elbow | Electroless Nickel | Extreme Viton® Seal

Original price was: $121.41.Current price is: $84.99.

SKU: AG9ZZ 5849700434085 Categories: , Tags: , , , , , , , , , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers
Features:
  • 90° Dual Plane Swivels rotating joints provide free rotation on two axis’s with a right-angle change of path.
  • By having two lines with full rotation the complexity of hose lines can be reduced providing minimal friction and allowing free movement of hoses and piping.
  • 90° Dual Plane Super Swivels allow for sharp corners with reduced risk of kinks and flow restriction and free rotation on two paths.
Notes:
  • Super Swivels are not recommended for breathing air/oxygen or steam.
  • All swivels have 4 to 1 proof pressure, except 10,000 PSI = 3 to 1 proof pressure.
  • Any series stem will fit with the same series body.
Base Material and Plating:
  • Super Swivels are manufactured from Carbon Steel or 304 and 440C Stainless Steel
  • Carbon Steel Zinc (Z) Plating is recommended for non-corrosive applications, i.e. hydraulic, pneumatic, etc.
  • Carbon Steel Nickel (NI) Plating is recommended for mildly corrosive environments, i.e. water, mild chemicals, solvents, etc.
Seal Material:
  • (V) Viton® (Fluorocarbon) – For most petroleum based applications. (-15 deg. F to 250 deg. F)
  • (AL) Aflas® (Tetrafluoroethylene-propylene copolymer) – Better resistance to many individual chemicals. For service in high temperature environments. (Low temperature limitations.) (+32 deg. F to 400 deg. F)
  • (ETP) Extreme Viton® – High resistance to many individual chemicals. (-6ºF to 437ºF)
9DP4MFS6XMFS6-NI-ETP By Super Swivel | DP7605-NI-ETP | Dual Plane Swivel | 11/16-16 Male Face Seal MFS X 11/16-16 Male Face Seal MFS | 0.250" Through Hole | 90° Elbow | Electroless Nickel | Extreme Viton® Seal -Hose Ware House 9DP4MFS6XMFS6 Z

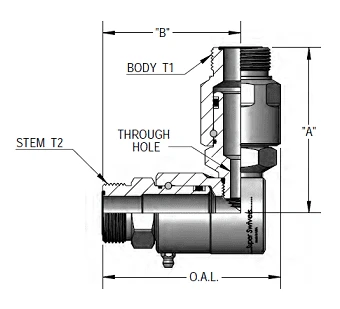

Part Number Material Seal Overall
Length		 Dim.
B		 Body Wrench / Hex Body T1 Stem T2 Dim.
A		 Max
PSIG		 Through
Hole
9DP4MFS6XMFS6-Z-V Zinc Viton 2.753″ 2.176″ 1.000″ 0.750″ 11/16-16 UN 11/16-16 UN 2.609″ 5000 PSIG 0.250″
9DP4MFS6XMFS6-Z-AL Zinc AFLAS 2.753″ 2.176″ 1.000″ 0.750″ 11/16-16 UN 11/16-16 UN 2.609″ 5000 PSIG 0.250″
9DP4MFS6XMFS6-Z-ETP Zinc Extreme Viton® 2.753″ 2.176″ 1.000″ 0.750″ 11/16-16 UN 11/16-16 UN 2.609″ 5000 PSIG 0.250″
9DP4MFS6XMFS6-NI-V Electroless Nickel Viton 2.753″ 2.176″ 1.000″ 0.750″ 11/16-16 UN 11/16-16 UN 2.609″ 5000 PSIG 0.250″
9DP4MFS6XMFS6-NI-AL Electroless Nickel AFLAS 2.753″ 2.176″ 1.000″ 0.750″ 11/16-16 UN 11/16-16 UN 2.609″ 5000 PSIG 0.250″
9DP4MFS6XMFS6-NI-ETP Electroless Nickel Extreme Viton® 2.753″ 2.176″ 1.000″ 0.750″ 11/16-16 UN 11/16-16 UN 2.609″ 5000 PSIG 0.250″

9DP8MFS8XMFS8-Z-V Zinc Viton 3.155″ 2.362″ 1.375″ 1.000″ 13/16-16 UN 13/16-16 UN 2.912″ 5000 PSIG 0.297″
9DP8MFS8XMFS8-Z-AL Zinc AFLAS 3.155″ 2.362″ 1.375″ 1.000″ 13/16-16 UN 13/16-16 UN 2.912″ 5000 PSIG 0.297″
9DP8MFS8XMFS8-NI-V Electroless Nickel Viton 3.155″ 2.362″ 1.375″ 1.000″ 13/16-16 UN 13/16-16 UN 2.912″ 5000 PSIG 0.297″
9DP8MFS8XMFS8-NI-AL Electroless Nickel AFLAS 3.155″ 2.362″ 1.375″ 1.000″ 13/16-16 UN 13/16-16 UN 2.912″ 5000 PSIG 0.297″

9DP8MFS10XMFS10-Z-V Zinc Viton 3.351″ 2.558″ 1.375″ 1.125″ 1-14 UN 1-14 UN 3.018″ 5000 PSIG 0.297″
9DP8MFS10XMFS10-Z-AL Zinc AFLAS 3.351″ 2.558″ 1.375″ 1.125″ 1-14 UN 1-14 UN 3.018″ 5000 PSIG 0.297″
9DP8MFS10XMFS10-Z-ETP Zinc Extreme Viton® 3.351″ 2.558″ 1.375″ 1.125″ 1-14 UN 1-14 UN 3.018″ 5000 PSIG 0.297″
9DP8MFS10XMFS10-NI-V Electroless Nickel Viton 3.351″ 2.558″ 1.375″ 1.125″ 1-14 UN 1-14 UN 3.018″ 5000 PSIG 0.297″
9DP8MFS10XMFS10-NI-AL Electroless Nickel AFLAS 3.351″ 2.558″ 1.375″ 1.125″ 1-14 UN 1-14 UN 3.018″ 5000 PSIG 0.297″
9DP8MFS10XMFS10-NI-ETP Electroless Nickel Extreme Viton® 3.351″ 2.558″ 1.375″ 1.125″ 1-14 UN 1-14 UN 3.018″ 5000 PSIG 0.297″

9DP12MFS12XMFS12-Z-V Zinc Viton 3.610″ 2.745″ 1.560″ 1.250″ 1-3/16-12 UN 1-3/16-12 UN 3.239″ 4500 PSIG 0.391″
9DP12MFS12XMFS12-Z-AL Zinc AFLAS 3.610″ 2.745″ 1.560″ 1.250″ 1-3/16-12 UN 1-3/16-12 UN 3.239″ 4500 PSIG 0.391″
9DP12MFS12XMFS12-Z-ETP Zinc Extreme Viton® 3.610″ 2.745″ 1.560″ 1.250″ 1-3/16-12 UN 1-3/16-12 UN 3.239″ 4500 PSIG 0.391″
9DP12MFS12XMFS12-NI-V Electroless Nickel Viton 3.610″ 2.745″ 1.560″ 1.250″ 1-3/16-12 UN 1-3/16-12 UN 3.239″ 4500 PSIG 0.391″
9DP12MFS12XMFS12-NI-AL Electroless Nickel AFLAS 3.610″ 2.745″ 1.560″ 1.250″ 1-3/16-12 UN 1-3/16-12 UN 3.239″ 4500 PSIG 0.391″
9DP12MFS12XMFS12-NI-ETP Electroless Nickel Extreme Viton® 3.610″ 2.745″ 1.560″ 1.250″ 1-3/16-12 UN 1-3/16-12 UN 3.239″ 4500 PSIG 0.391″

9DP16MFS16XMFS16-Z-V Zinc Viton 4.274″ 3.316″ 1.810″ 1.500″ 1-7/16-12 UN 1-7/16-12 UN 3.970″ 4000 PSIG 0.484″
9DP16MFS16XMFS16-Z-AL Zinc AFLAS 4.274″ 3.316″ 1.810″ 1.500″ 1-7/16-12 UN 1-7/16-12 UN 3.970″ 4000 PSIG 0.484″
9DP16MFS16XMFS16-Z-ETP Zinc Extreme Viton® 4.274″ 3.316″ 1.810″ 1.500″ 1-7/16-12 UN 1-7/16-12 UN 3.970″ 4000 PSIG 0.484″
9DP16MFS16XMFS16-NI-V Electroless Nickel Viton 4.274″ 3.316″ 1.810″ 1.500″ 1-7/16-12 UN 1-7/16-12 UN 3.970″ 4000 PSIG 0.484″
9DP16MFS16XMFS16-NI-AL Electroless Nickel AFLAS 4.274″ 3.316″ 1.810″ 1.500″ 1-7/16-12 UN 1-7/16-12 UN 3.970″ 4000 PSIG 0.484″
9DP16MFS16XMFS16-NI-ETP Electroless Nickel Extreme Viton® 4.274″ 3.316″ 1.810″ 1.500″ 1-7/16-12 UN 1-7/16-12 UN 3.970″ 4000 PSIG 0.484″

9DP20MFS20XMFS20-Z-V Zinc Viton 4.827″ 3.649″ 2.188″ 1.750″ 1-11/16-12 UN 1-11/16-12 UN 4.446″ 4000 PSIG 0.718″
9DP20MFS20XMFS20-Z-AL Zinc AFLAS 4.827″ 3.649″ 2.188″ 1.750″ 1-11/16-12 UN 1-11/16-12 UN 4.446″ 4000 PSIG 0.718″
9DP20MFS20XMFS20-Z-ETP Zinc Extreme Viton® 4.827″ 3.649″ 2.188″ 1.750″ 1-11/16-12 UN 1-11/16-12 UN 4.446″ 4000 PSIG 0.718″
9DP20MFS20XMFS20-NI-V Electroless Nickel Viton 4.827″ 3.649″ 2.188″ 1.750″ 1-11/16-12 UN 1-11/16-12 UN 4.446″ 4000 PSIG 0.718″
9DP20MFS20XMFS20-NI-AL Electroless Nickel AFLAS 4.827″ 3.649″ 2.188″ 1.750″ 1-11/16-12 UN 1-11/16-12 UN 4.446″ 4000 PSIG 0.718″
9DP20MFS20XMFS20-NI-ETP Electroless Nickel Extreme Viton® 4.827″ 3.649″ 2.188″ 1.750″ 1-11/16-12 UN 1-11/16-12 UN 4.446″ 4000 PSIG 0.718″

9DP24MFS24XMFS24-NI-V Electroless Nickel Viton 5.645″ 4.370″ 2.375″ 2.125″ 2-12 UN 2-12 UN 5.116″ 4000 PSIG 0.844″
9DP24MFS24XMFS24-NI-AL Electroless Nickel AFLAS 5.645″ 4.370″ 2.375″ 2.125″ 2-12 UN 2-12 UN 5.116″ 4000 PSIG 0.844″
9DP24MFS24XMFS24-NI-ETP Electroless Nickel Extreme Viton® 5.645″ 4.370″ 2.375″ 2.125″ 2-12 UN 2-12 UN 5.116″ 4000 PSIG 0.844″
