9DP20M020XMJ20-NI-ETP By Super Swivel | DP6955-NI-ETP | Dual Plane Swivel | 1-5/8-12 Male O-Ring ORB X 1-5/8-12 Male 37° JIC | 0.718" Through Hole | 90° Elbow | Electroless Nickel | Extreme Viton® Seal
9DP20M020XMJ20-NI-ETP By Super Swivel | DP6955-NI-ETP | Dual Plane Swivel | 1-5/8-12 Male O-Ring ORB X 1-5/8-12 Male 37° JIC | 0.718" Through Hole | 90° Elbow | Electroless Nickel | Extreme Viton® Seal - Image 2
9DP20M020XMJ20-NI-ETP By Super Swivel | DP6955-NI-ETP | Dual Plane Swivel | 1-5/8-12 Male O-Ring ORB X 1-5/8-12 Male 37° JIC | 0.718" Through Hole | 90° Elbow | Electroless Nickel | Extreme Viton® Seal -Hose Ware House 9dp4mo4xmj4 z v 360x 10340212 3b2d 47db a917 d0c79f4600fb

9DP20M020XMJ20-NI-ETP By Super Swivel | DP6955-NI-ETP | Dual Plane Swivel | 1-5/8-12 Male O-Ring ORB X 1-5/8-12 Male 37° JIC | 0.718″ Through Hole | 90° Elbow | Electroless Nickel | Extreme Viton® Seal

Original price was: $314.05.Current price is: $99.99.

SKU: AG9ZZ 5849699418277 Categories: , Tags: , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers
Features:
  • 90° Dual Plane Swivels rotating joints provide free rotation on two axis’s with a right-angle change of path.
  • By having two lines with full rotation the complexity of hose lines can be reduced providing minimal friction and allowing free movement of hoses and piping.
  • 90° Dual Plane Super Swivels allow for sharp corners with reduced risk of kinks and flow restriction and free rotation on two paths.
Notes:
  • Super Swivels are not recommended for breathing air/oxygen or steam.
  • All swivels have 4 to 1 proof pressure, except 10,000 PSI = 3 to 1 proof pressure.
  • Any series stem will fit with the same series body.
Base Material and Plating:
  • Super Swivels are manufactured from Carbon Steel or 304 and 440C Stainless Steel
  • Carbon Steel Zinc (Z) Plating is recommended for non-corrosive applications, i.e. hydraulic, pneumatic, etc.
  • Carbon Steel Nickel (NI) Plating is recommended for mildly corrosive environments, i.e. water, mild chemicals, solvents, etc.
Seal Material:
  • (V) Viton® (Fluorocarbon) – For most petroleum based applications. (-15 deg. F to 250 deg. F)
  • (AL) Aflas® (Tetrafluoroethylene-propylene copolymer) – Better resistance to many individual chemicals. For service in high temperature environments. (Low temperature limitations.) (+32 deg. F to 400 deg. F)
  • (ETP) Extreme Viton® – High resistance to many individual chemicals. (-6ºF to 437ºF)
9DP20M020XMJ20-NI-ETP By Super Swivel | DP6955-NI-ETP | Dual Plane Swivel | 1-5/8-12 Male O-Ring ORB X 1-5/8-12 Male 37° JIC | 0.718" Through Hole | 90° Elbow | Electroless Nickel | Extreme Viton® Seal -Hose Ware House 9DP4MO4XMJ4 Z

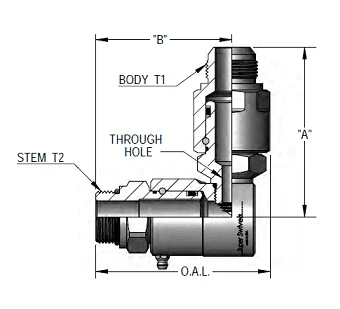

Part Number Material Seal Overall
Length		 Dim.
B		 Body Wrench / Hex Body T1 Stem T2 Dim.
A		 Max
PSIG		 Through
Hole
9DP4MO4XMJ4-Z-V Zinc Viton 2.792″ 2.215″ 1.000″ 0.625″ 7/16-20 NPTF 7/16-20 NPTF 2.689″ 5000 PSIG 0.172″
9DP4MO4XMJ4-Z-AL Zinc AFLAS 2.792″ 2.215″ 1.000″ 0.625″ 7/16-20 NPTF 7/16-20 NPTF 2.689″ 5000 PSIG 0.172″
9DP4MO4XMJ4-Z-ETP Zinc Extreme Viton® 2.792″ 2.215″ 1.000″ 0.625″ 7/16-20 NPTF 7/16-20 NPTF 2.689″ 5000 PSIG 0.172″
9DP4MO4XMJ4-NI-V Electroless Nickel Viton 2.792″ 2.215″ 1.000″ 0.625″ 7/16-20 NPTF 7/16-20 NPTF 2.689″ 5000 PSIG 0.172″
9DP4MO4XMJ4-NI-AL Electroless Nickel AFLAS 2.792″ 2.215″ 1.000″ 0.625″ 7/16-20 NPTF 7/16-20 NPTF 2.689″ 5000 PSIG 0.172″
9DP4MO4XMJ4-NI-ETP Electroless Nickel Extreme Viton® 2.792″ 2.215″ 1.000″ 0.625″ 7/16-20 NPTF 7/16-20 NPTF 2.689″ 5000 PSIG 0.172″

9DP4MO6XMJ6-Z-V Zinc Viton 2.792″ 2.215″ 1.000″ 0.750″ 9/16-18 NPTF 9/16-18 NPTF 2.689″ 5000 PSIG 0.250″
9DP4MO6XMJ6-Z-AL Zinc AFLAS 2.792″ 2.215″ 1.000″ 0.750″ 9/16-18 NPTF 9/16-18 NPTF 2.689″ 5000 PSIG 0.250″
9DP4MO6XMJ6-Z-ETP Zinc Extreme Viton® 2.792″ 2.215″ 1.000″ 0.750″ 9/16-18 NPTF 9/16-18 NPTF 2.689″ 5000 PSIG 0.250″
9DP4MO6XMJ6-NI-V Electroless Nickel Viton 2.792″ 2.215″ 1.000″ 0.750″ 9/16-18 NPTF 9/16-18 NPTF 2.689″ 5000 PSIG 0.250″
9DP4MO6XMJ6-NI-AL Electroless Nickel AFLAS 2.792″ 2.215″ 1.000″ 0.750″ 9/16-18 NPTF 9/16-18 NPTF 2.689″ 5000 PSIG 0.250″
9DP4MO6XMJ6-NI-ETP Electroless Nickel Extreme Viton® 2.792″ 2.215″ 1.000″ 0.750″ 9/16-18 NPTF 9/16-18 NPTF 2.689″ 5000 PSIG 0.250″

9DP8MO8XMJ8-Z-V Zinc Viton 3.021″ 2.376″ 1.375″ 1.000″ 3/4-16 NPTF 3/4-16 NPTF 3.103″ 5000 PSIG 0.297″
9DP8MO8XMJ8-Z-AL Zinc AFLAS 3.021″ 2.376″ 1.375″ 1.000″ 3/4-16 NPTF 3/4-16 NPTF 3.103″ 5000 PSIG 0.297″
9DP8MO8XMJ8-Z-ETP Zinc Extreme Viton® 3.021″ 2.376″ 1.375″ 1.000″ 3/4-16 NPTF 3/4-16 NPTF 3.103″ 5000 PSIG 0.297″
9DP8MO8XMJ8-NI-V Electroless Nickel Viton 3.021″ 2.376″ 1.375″ 1.000″ 3/4-16 NPTF 3/4-16 NPTF 3.103″ 5000 PSIG 0.297″
9DP8MO8XMJ8-NI-AL Electroless Nickel AFLAS 3.021″ 2.376″ 1.375″ 1.000″ 3/4-16 NPTF 3/4-16 NPTF 3.103″ 5000 PSIG 0.297″
9DP8MO8XMJ8-NI-ETP Electroless Nickel Extreme Viton® 3.021″ 2.376″ 1.375″ 1.000″ 3/4-16 NPTF 3/4-16 NPTF 3.103″ 5000 PSIG 0.297″

9DP8MO10XMJ10-Z-V Zinc Viton 3.291″ 2.498″ 1.375″ 1.000″ 7/8-14 NPTF 7/8-14 NPTF 3.253″ 5000 PSIG 0.297″
9DP8MO10XMJ10-Z-AL Zinc AFLAS 3.291″ 2.498″ 1.375″ 1.000″ 7/8-14 NPTF 7/8-14 NPTF 3.253″ 5000 PSIG 0.297″
9DP8MO10XMJ10-Z-ETP Zinc Extreme Viton® 3.291″ 2.498″ 1.375″ 1.000″ 7/8-14 NPTF 7/8-14 NPTF 3.253″ 5000 PSIG 0.297″
9DP8MO10XMJ10-NI-V Electroless Nickel Viton 3.291″ 2.498″ 1.375″ 1.000″ 7/8-14 NPTF 7/8-14 NPTF 3.253″ 5000 PSIG 0.297″
9DP8MO10XMJ10-NI-AL Electroless Nickel AFLAS 3.291″ 2.498″ 1.375″ 1.000″ 7/8-14 NPTF 7/8-14 NPTF 3.253″ 5000 PSIG 0.297″
9DP8MO10XMJ10-NI-ETP Electroless Nickel Extreme Viton® 3.291″ 2.498″ 1.375″ 1.000″ 7/8-14 NPTF 7/8-14 NPTF 3.253″ 5000 PSIG 0.297″

9DP12MO12XMJ12-Z-V Zinc Viton 3.615″ 2.749″ 1.560″ 1.375″ 1-1/16-12 NPTF 1-1/16-12 NPTF 3.465″ 4500 PSIG 0.391″
9DP12MO12XMJ12-Z-AL Zinc AFLAS 3.615″ 2.749″ 1.560″ 1.375″ 1-1/16-12 NPTF 1-1/16-12 NPTF 3.465″ 4500 PSIG 0.391″
9DP12MO12XMJ12-Z-ETP Zinc Extreme Viton® 3.615″ 2.749″ 1.560″ 1.375″ 1-1/16-12 NPTF 1-1/16-12 NPTF 3.465″ 4500 PSIG 0.391″
9DP12MO12XMJ12-NI-V Electroless Nickel Viton 3.615″ 2.749″ 1.560″ 1.375″ 1-1/16-12 NPTF 1-1/16-12 NPTF 3.465″ 4500 PSIG 0.391″
9DP12MO12XMJ12-NI-AL Electroless Nickel AFLAS 3.615″ 2.749″ 1.560″ 1.375″ 1-1/16-12 NPTF 1-1/16-12 NPTF 3.465″ 4500 PSIG 0.391″
9DP12MO12XMJ12-NI-ETP Electroless Nickel Extreme Viton® 3.615″ 2.749″ 1.560″ 1.375″ 1-1/16-12 NPTF 1-1/16-12 NPTF 3.465″ 4500 PSIG 0.391″

9DP16MO16XMJ16-Z-V Zinc Viton 4.370″ 3.411″ 1.810″ 1.625″ 1-5/16-12 NPTF 1-5/16-12 NPTF 4.260″ 4000 PSIG 0.484″
9DP16MO16XMJ16-Z-AL Zinc AFLAS 4.370″ 3.411″ 1.810″ 1.625″ 1-5/16-12 NPTF 1-5/16-12 NPTF 4.260″ 4000 PSIG 0.484″
9DP16MO16XMJ16-Z-ETP Zinc Extreme Viton® 4.370″ 3.411″ 1.810″ 1.625″ 1-5/16-12 NPTF 1-5/16-12 NPTF 4.260″ 4000 PSIG 0.484″
9DP16MO16XMJ16-NI-V Electroless Nickel Viton 4.370″ 3.411″ 1.810″ 1.625″ 1-5/16-12 NPTF 1-5/16-12 NPTF 4.260″ 4000 PSIG 0.484″
9DP16MO16XMJ16-NI-AL Electroless Nickel AFLAS 4.370″ 3.411″ 1.810″ 1.625″ 1-5/16-12 NPTF 1-5/16-12 NPTF 4.260″ 4000 PSIG 0.484″
9DP16MO16XMJ16-NI-ETP Electroless Nickel Extreme Viton® 4.370″ 3.411″ 1.810″ 1.625″ 1-5/16-12 NPTF 1-5/16-12 NPTF 4.260″ 4000 PSIG 0.484″

9DP20MO20XMJ20-Z-V Zinc Viton 4.934″ 3.755″ 2.188″ 1.875″ 1-5/8-12 NPTF 1-5/8-12 NPTF 4.796″ 4000 PSIG 0.718″
9DP20MO20XMJ20-Z-AL Zinc AFLAS 4.934″ 3.755″ 2.188″ 1.875″ 1-5/8-12 NPTF 1-5/8-12 NPTF 4.796″ 4000 PSIG 0.718″
9DP20MO20XMJ20-Z-ETP Zinc Extreme Viton® 4.934″ 3.755″ 2.188″ 1.875″ 1-5/8-12 NPTF 1-5/8-12 NPTF 4.796″ 4000 PSIG 0.718″
9DP20MO20XMJ20-NI-V Electroless Nickel Viton 4.934″ 3.755″ 2.188″ 1.875″ 1-5/8-12 NPTF 1-5/8-12 NPTF 4.796″ 4000 PSIG 0.718″
9DP20MO20XMJ20-NI-AL Electroless Nickel AFLAS 4.934″ 3.755″ 2.188″ 1.875″ 1-5/8-12 NPTF 1-5/8-12 NPTF 4.796″ 4000 PSIG 0.718″
9DP20M020XMJ20-NI-ETP Electroless Nickel Extreme Viton® 4.934″ 3.755″ 2.188″ 1.875″ 1-5/8-12 NPTF 1-5/8-12 NPTF 4.796″ 4000 PSIG 0.718″

9DP24MO24XMJ24-NI-V Electroless Nickel Viton 5.810″ 4.540″ 2.375″ 2.125″ 1-7/8-12 NPTF 1-7/8-12 NPTF 5.510″ 4000 PSIG 0.844″
9DP24MO24XMJ24-NI-AL Electroless Nickel AFLAS 5.810″ 4.540″ 2.375″ 2.125″ 1-7/8-12 NPTF 1-7/8-12 NPTF 5.510″ 4000 PSIG 0.844″
9DP24MO24XMJ24-NI-ETP Electroless Nickel Extreme Viton® 5.810″ 4.540″ 2.375″ 2.125″ 1-7/8-12 NPTF 1-7/8-12 NPTF 5.510″ 4000 PSIG 0.844″
