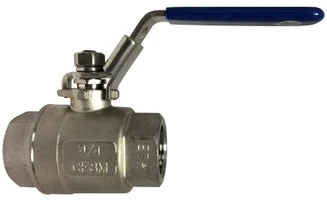

949163 "949-163" By Midland | Full Port Two-Piece Ball Valve | Locking Handle | 1/2" Female NPT X 1/2" Female NPT | 1000 PSI | 316 Stainless Steel

949163 “949-163″ By Midland | Full Port Two-Piece Ball Valve | Locking Handle | 1/2″ Female NPT X 1/2” Female NPT | 1000 PSI | 316 Stainless Steel

Original price was: $34.41.Current price is: $24.09.

SKU: AG9ZZ 8067279028389 Categories: , Tags: , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers
Features:
  • Quality manufactured for harsh environments.
  • Corrrosion resistant.
  • Working pressure 1000 psi for W.O.G.
  • Temperature range: -60°F to 450°F
  • 100% leakage tested at 100 psi air under water
  • Hydrostatic test pressure: 1500 psi
  • 125 Steam rated
  • Valves will accept a pad-lock on the handle.
Construction:
  • Investment Casting body
  • Adjustable stem packing
  • Pure teflon seals and seats
  • Blow-out proof stem and safe pressure-reducing hole
  • Locking handle w/ blue generic sleeve
  • Generic Handles
Item Parts Material
1 Body 316SS ASTM-A351 CF8M
2 Body Cap 316SS ASTM-A351 CF8M
3 Ball 316SS ASTM-A351 CF8M
4 Seat Reinforced PTFE
5 Stem AISI 316 SS
6 Seal Reinforced PTFE
7 Thrust Washer Reinforced PTFE
8 Packing Reinforced PTFE
9 Gland Nut AISI 304SS
10/11 Nut & Washer AISI 304SS
12 Handle AISI 304SS
13 Plastic Cover Plastic
949163 "949-163" By Midland | Full Port Two-Piece Ball Valve | Locking Handle | 1/2" Female NPT X 1/2" Female NPT | 1000 PSI | 316 Stainless Steel -Hose Ware House
Part Number Size D L H W Weight
949161
(949-161)		 1/4″ 0.36″ 2.13″ 2.13″ 4.33″ 0.51
949162
(949-162)		 3/8″ 0.50″ 2.13″ 2.16″ 4.33″ 0.49
949163
(949-163)		 1/2″ 0.59″ 2.24″ 2.28″ 4.17″ 0.69
949164
(949-164)		 3/4″ 0.79″ 2.68″ 2.40″ 4.17″ 1.03
949165
(949-165)		 1″ 0.98″ 3.15″ 2.50″ 4.88″ 1.40
949166
(949-166)		 1-1/4″ 1.26″ 3.58″ 3.19″ 5.04″ 2.17
949167
(949-167)		 1-1/2″ 1.49″ 4.05″ 3.54″ 6.10″ 3.33
949168
(949-168)		 2″ 1.97″ 4.88″ 4.25″ 6.13″ 6.02
949170
(949-170)		 3″ 3.15″ 7.28″ 5.71″ 9.06″ 21.01
949180
(949-180)		 4″ 3.94″ 8.84″ 7.28″ 11.10″ 36.18
