Sale!

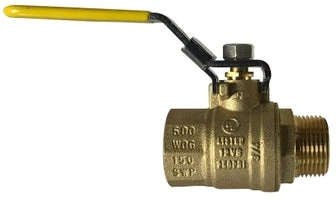

948170L By Midland | Locking Handle Ball Valve | 1/4" Female NPT X 1/4" Male NPT | Brass

948170L By Midland | Locking Handle Ball Valve | 1/4″ Female NPT X 1/4″ Male NPT | Brass

Original price was: $12.00.Current price is: $8.40.

SKU: AG9ZZ 8067268280485 Category: Tags: , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers
Features:
  • Blow out proof stem design
  • 600 PSI (WOG) 150 PSI (WSP) Service
  • Temperature range: -20° F to 300° F
  • Not lead free
Construction:
  • Forged brass body
  • Packing nut, O-Ring and packing on the stem seal
  • Chrome Plated Brass ball
  • Handle with vinyl grip
  • Made in China
Specifications:
  • Threads conform ANSI B1.20.1
  • UL842, UL258
Item Part Materials
1 Body Brass
2 End Cap Brass
3 Ball Seat PTFE
4 Ball C/P Brass
5 Stem Brass
6 Stem Packing PTFE
7 Packing Nut Brass
8 Lever Handle Nickel plating steel
9 Stem Nut Brass plating steel
948170L By Midland | Locking Handle Ball Valve | 1/4" Female NPT X 1/4" Male NPT | Brass -Hose Ware House 948170L add
Part Number Size
NPT		 A B C D E Weight
948170L
(948-170L)		 1/4″ 2.016″ 1.732″ 3.543″ 0.315″ 0.457″ 0.32 lbs
948171L
(948-171L)		 3/8″ 2.094″ 1.732″ 3.543″ 0.394″ 0.457″ 0.37 lbs
948172L
(948-172L)		 1/2″ 2.343″ 1.941″ 3.543″ 0.583″ 0.520″ 0.50 lbs
948173L
(948-173L)		 3/4″ 2.618″ 2.106″ 3.78″ 0.748″ 0.563″ 0.77 lbs
948174L
(948-174L)		 1″ 3.000″ 2.579″ 4.528″ 0.945″ 0.630″ 1.21 lbs
948175L
(948-175L)		 1-1/4″ 3.563″ 2.961″ 4.528″ 1.260″ 0.709″ 1.74 lbs
948176L
(948-176L)		 1-1/2″ 3.965″ 3.366″ 5.36″ 1.575″ 0.717″ 2.58 lbs
948177L
(948-177L)		 2″ 4.496″ 3.701″ 5.36″ 1.969″ 0.748″ 3.73 lbs
