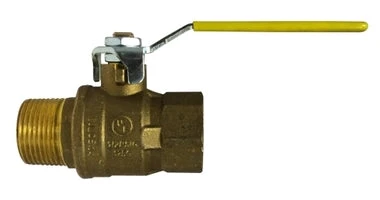

948101 By Midland | Full Port Italian Ball Valve | 1/4″ Male Pipe X 1/4″ Female Pipe | Brass

Original price was: $12.00.Current price is: $8.40.

SKU: AG9ZZ 8067267788965 Categories: Adapters & More, Valves Tags: 1/4" x 1/4" Thread Size, Ball Valves, Brass, Collection-lvl1_All Hose Accessories, Collection-lvl2_Valves, Collection-lvl3_Ball Valves, Full Port Italian Ball Valve, Male Pipe x Female Pipe, Matrixify2nd50kProducts, Midland Industries, Valves

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Features:
Solid chrome plated brass ball Suitable for full range of liquids and gases. Minimal pressure drop due to large full size ports. Bottom loaded, pressure retaining stem. Pressure rated at 600 PSI (42 bars) WOG (non-shock) and 150 PSI (10.34 bars) saturated steam. Fast 1/4 turn open or close operation. Generic Handles Flow both directions. Low operating torque. Adjustable stem packing gland. Maximum operating temperature: 248°F (120°C) at 600 PSI Minimum operating temperature: -20°F (-40°C) KV: Pressure drop m^3/h. Each valve individually tested Bottom entry, blow-out proof stem Deeper threads – for better connections Not Lead Free
Construction:
Virgin TFE stem packing seal, thrust washer and seats. Yellow vinyl insulator on heavy duty plated carbon steel handles. Forged Brass – for more strength Hard chromium plated solid ball Made in Italy
Specifications:
Gas Approved CSA AGA 3.88 5 PSIG UL842, UL258, UL125, FM Threaded ends to ANSI B1.20.1


Part Number	Components	Materials	N
1	Body	CW617N Forged Brass	1
2	End Connection	CW617N Forged Brass	1
3	Ball	CW617N CP Brass	1
4	Ball Stems	PTFE	2
5	Stem Antif. Seat	PTFE	1
6	Stem Seat	PTFE	1
7	Brass Ring	CW617N Brass	1
8	Stem	CW617N Brass	1
9	O-Ring	NBR 80	1
10	Handle	UNI EN 10025 Steel	1
11	Nut	UN 5771 Steel	1
12	Nut	CW617N Brass	1


Part Number	Size	DN	A	B	C	E	E1	CH1	CH2	Weight
948101 (948-101)	1/4″	0.39	2.18″	1.53″	3.28″	0.39″	0.43″	0.55″	0.75″	0.35
948102 (948-102)	3/8″	0.39	2.20″	1.53″	3.28″	0.43″	0.43″	0.71″	0.86″	0.35
948103 (948-103)	1/2″	0.57	2.54″	1.57″	3.28″	0.62″	0.46″	0.87″	0.98″	0.42
948104 (948-104)	3/4″	0.75	2.75″	1.77″	3.80″	0.55″	0.49″	1.12″	1.22″	0.68
948105 (948-105)	1″	0.94	3.23″	2.03″	3.80″	0.69″	0.59″	1.34″	1.50″	0.95
948106 (948-106)	1-1/4″	1.24	3.86″	2.32″	4.63″	0.81″	0.79″	1.69″	1.90″	1.66
948107 (948-107)	1-1/2″	1.49	4.20″	2.98″	6.28″	0.85″	0.64″	2.15″	2.13″	2.83
948108 (948-108)	2″	1.96	4.90″	3.27″	6.38″	0.90″	0.75″	2.40″	2.64″	4.22
