Sale!

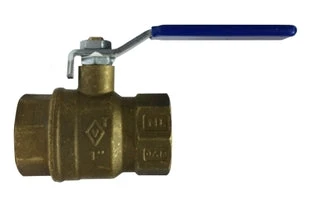

943237LF By Midland | Lead Free Ball Valve | Forged | 1-1/2" Female NPT X 1-1/2" Female NPT | Brass

943237LF By Midland | Lead Free Ball Valve | Forged | 1-1/2″ Female NPT X 1-1/2″ Female NPT | Brass

Original price was: $84.04.Current price is: $58.83.

SKU: AG9ZZ 8067258777765 Categories: , Tags: , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers
Features:
  • Suitable for full range of liquids and gases.
  • Minimal pressure drop due to large full size ports.
  • Bottom loaded, pressure retaining stem.
  • Pressure rated at 600psi (42 bars) WOG (non-shock) and 150 WSP (10.34 bars) saturated steam. Virgin TFE stem packing seal, thrust washer and seats.
  • Fast 1/4 turn open or close operation.
  • Low operating torque.
  • Flow can go both directions.
  • Adjustable stem packing gland.
  • Maximum operating temerature: 2480F (1200 C) at 600 PSI.
  • Minimum operating temperature: -200F (-400C).
  • Each valve individually tested.
  • Threaded ends to ANSI B1.20.1.
  • Bottom entry, blow-out proof stem.
  • Deeper threads – for better connections.
  • Lead Free Lead Free Info (PDF)
Construction:
  • Solid Chrome Plated Brass Ball.
  • Blue vinyl insulator on heavy duty plated carbon steel handles.
  • Forged Brass – for more strength.
  • Hard chromium plated solid ball.
  • ANSI/INSF 61-8 Generic Handles.
Specifications:
  • CSA AGA 3.88 5 PSIG
  • IAMPO IGC 157 – 2004b
  • UL842, UL258, UL125, FM
943237LF By Midland | Lead Free Ball Valve | Forged | 1-1/2" Female NPT X 1-1/2" Female NPT | Brass -Hose Ware House
Number Components Materials
1 Body CW510L
2 End Connection CW510L
3 Ball Seal PTFE
4 Seal CW510L
5 Stem CW614N
6 Lower Stem PTFE
7 O-Ring NBR70sh
8 Upper Seal PTFE
9 Brass Ring CW614N
10 Nut Steel
11 Handle Steel P10
943237LF By Midland | Lead Free Ball Valve | Forged | 1-1/2" Female NPT X 1-1/2" Female NPT | Brass -Hose Ware House
Part Number NPT DN A B C D CH Weight
943233LF 1/2″ 0.57″ 2.09″ 1.57″ 3.35″ 0.46″ 0.98″ 0.39
943234LF 3/4″ 0.75″ 2.28″ 1.77″ 3.80″ 0.49″ 1.22″ 0.56
943235LF 1″ 0.94″ 3.04″ 2.03″ 3.80″ 0.59″ 1.50″ 0.89
943236LF 1-1/4″ 1.24″ 3.23″ 2.32″ 4.72″ 0.62″ 1.85″ 1.44
943237LF 1-1/2″ 1.49″ 3.70″ 2.60″ 4.72″ 0.64″ 2.13″ 2.19
