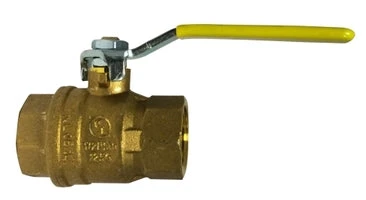

942210 By Midland | Full Port Italian Ball Valve | 4″ Female NPT X 4″ Female NPT | Brass

Original price was: $399.00.Current price is: $98.99.

SKU: AG9ZZ 8067267264677 Categories: Adapters & More, Valves Tags: 4" Thread Size, Ball Valves, Brass, Collection-lvl1_All Hose Accessories, Collection-lvl2_Valves, Collection-lvl3_Ball Valves, Female NPT x Female NPT, Full Port Italian Ball Valve, Matrixify2nd50kProducts, Midland Industries, Valves

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Features:
Suitable for full range of liquids and gases Minimal pressure drop due to large full size ports Bottom loaded, pressure retaining stem Pressure rated at 600 PSI (42 bars) WOG (non-shock) and 150 WSP (10.34 bars) saturated steam. Fast 1/4 turn open or close operation Low operating torque Flow can go both directions Generic Handles Adjustable stem packing gland Maximum operating temerature: 248°F (120°C) at 600 PSI Minimum operating temperature: -20°F (-40°C) Each valve individually tested Bottom entry, blow-out proof stem Reversible Handles
Construction:
Solid Chrome Plated Brass Ball Virgin TFE stem packing seal, thrust washer and seats. Yellow vinyl insulator on heavy duty plated carbon steel handles. Forged Brass – for more strength Hard chromium plated solid ball Deeper threads – for better connections Made In Italy
Specifications:
UL842, UL258, UL125, FM CSA AGA 3.88 5 PSIG IAMPO IGC 157 – 2004b Threaded ends to ANSI B1.20.1


Part Number	Components	Materials	N
1	Body	Forged Brass	1
2	End Connection	Forged Brass	1
3	Ball	CP Brass	1
4	Ball Stems	PTFE	2
5	Stem Antif. Seat	PTFE	1
6	Stem Seat	PTFE	1
7	Brass Ring	Brass	1
8	Stem	Brass	1
9	O-Ring	NBR 80	1
10	Handle	Steel	1
11	Nut	Steel	1
12	Nut	Brass	1


Part Number	Size NPT	DN	A	B	C	D	CH	Weight
943200 (943-200)	1/4″	0.39″	1.96″	1.53″	3.31″	0.43″	0.75″	0.36
943201 (943-201)	3/8″	0.39″	1.96″	1.53″	3.31″	0.43″	0.86″	0.40
943202 (943-202)	1/2″	0.57″	2.09″	1.57″	3.25″	0.46″	0.98″	0.44
943203 (943-203)	3/4″	0.75″	2.28″	1.77″	3.80″	0.49″	1.22″	0.57
943204 (943-204)	1″	0.94″	2.80″	2.03″	3.80″	0.59″	1.50″	0.89
943205 (943-205)	1-1/4″	1.24″	3.50″	2.32″	4.72″	0.72″	1.85″	1.64
943206 (943-206)	1-1/2″	1.49″	3.90″	3.02″	6.38″	0.85″	2.13″	2.78
943207 (943-207)	2″	1.96″	4.07″	3.27″	6.38″	0.65″	2.64″	3.21
942208 (942-208)	2-1/2″	2.48″	5.80″	4.98″	7.54″	1.06″	3.31″	6.97
942209 (942-209)	3″	2.99″	6.85″	5.63″	8.86″	1.14″	3.89″	10.34
942210 (942-210)	4″	3.54″	7.67″	6.04″	8.86″	1.22″	4.80″	18.77

Handle Options
Part Number	Handle Type	Valve Size
43200T (43-200T)	Tee Handle	1/4″ – 3/4″ Size
43204T (43-204T)	Tee Handle	1″ Size

43200L (43-200L)	Locking Handle	1/4″ – 3/4″ Size
43204L (43-204L)	Locking Handle	1″ Size
43206L (43-206L)	Locking Handle	1-1/2″ & 2″ Size
43207L (43-207L)	Locking Handle	2″ Size
