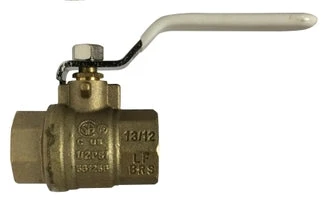

940181LF By Midland | Lead Free Ball Valve | 4″ Female NPT X 4″ Female NPT | Brass

Original price was: $383.00.Current price is: $98.99.

SKU: AG9ZZ 8067258253477 Categories: Adapters & More, Valves Tags: 4" Thread Size, Ball Valves, Brass, Collection-lvl1_All Hose Accessories, Collection-lvl2_Valves, Collection-lvl3_Ball Valves, Female NPT x Female NPT, Lead Free Ball Valves, Matrixify2nd50kProducts, Midland Industries, Valves

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Features:
1/2″ – 2″ Sizes Gas Approved Lead free and dezincification resistant (DZR) material Suitable for full range of liquids and gases Minimal pressure drop due to large full size ports Bottom loaded, pressure retaining stem Pressure rated for 1/4″-2″ at 600psi (42 bars) and 2-1/2″-4″ at 400 psi WOG (non-shock) and 150 WSP (10.34 bars) saturated steam. Fast 1/4 turn open or close operation Low operating torque Maximum operating temperature: 3020F (1500 C) Minimum operating temperature: -220F (-300C) Each valve individually tested Threaded ends to ANSI B1.20.1 Blow-out proof stem Lead Free Lead Free Info (PDF)
Construction:
Stainless steel ball Virgin PTFE stem packing seal, thrust washer and seats White vinyl insulator on heavy duty plated carbon steel handles Adjustable stem packing gland Forged Brass – for more strength Hard chromium plated solid ball
Specifications:
IAMPO listed to cUPC, NSF/ ANSI 61 & 372, IGC 157 CSA – 1/4″ thru 2″: ANSI Z21.15/ CSA 9.1 for 1/2 psig valves ASME B16.44, CGA CR91-002 for 2 & 5 psig valves CAN/ CGA-3.16, ASME B16.33 (1/2″-2″) for 125 psig valves UL 125, UL 1477, UL 842 – for size 1/4″ thru 4″, 250 psig UL 258 – for size 1/4″ thru 2″, 175 psig FM – for size 1/4″ thru 2″ ISO 9002 Manufacture

Number	Components	Materials
1	Body	Lead Free Brass
2	End Cap	Lead Free Brass
3	Ball	Seat PTFE
4	Ball	1/4-1:Lead Free Brass 1-1/4-4:SS316 Hollowball
5	Stem	Brass
6	Stem	Padding PTFE
7	Padding	Nut Brass
8	Lever Handle	Nickel plating steel
9	Stem Nut	Brass plating steel
10	Seal	PTFE


Part Number	Size	A	B	C	D	E	F	G	H	Weight
940171LF (940-171LF)	1/4″	1.756″	1.732″	3.543″	0.394″	0.457″	1.012″	2.238″	4.421″	0.34
940172LF (940-172LF)	3/8″	1.756″	1.732″	3.543″	0.394″	0.457″	1.012″	2.238″	4.421″	0.34
940173LF (940-173LF)	1/2″	2.047″	2.040″	3.543″	0.583″	0.520″	1.240″	2.559″	4.567″	0.45
940174LF (940-174LF)	3/4″	2.362″	2.260″	3.780″	0.748″	0.563″	1.492″	2.854″	4.961″	0.69
940175LF (940-175LF)	1″	2.756″	2.579″	4.528″	0.945″	0.630″	1.791″	3.476″	5.906″	1.11
940176LF (940-176LF)	1-1/4″	3.307″	3.050″	4.528″	1.260″	0.709″	2.343″	4.134″	6.181″	1.85
940177LF (940-177LF)	1-1/2″	3.661″	3.366″	5.420″	1.575″	0.717″	2.835″	4.783″	7.343″	2.60
940178LF (940-178LF)	2″	4.181″	3.701″	5.42″	1.969″	0.748″	3.425″	5.413″	7.602″	3.62
940179LF (940-179LF)	2-1/2″	4.181″	4.650″	8.870″	2.520″	1.024″	4.331″	6.969″	11.350″	7.93
940180LF (940-180LF)	3″	6.039″	4.970″	8.870″	2.913″	1.102″	4.921″	7.579″	11.681″	10.40
940181LF (940-181LF)	4″	7.386″	6.130″	10.85″	3.898″	1.220″	6.430″	9.055″	13.299″	20.99
