Sale!

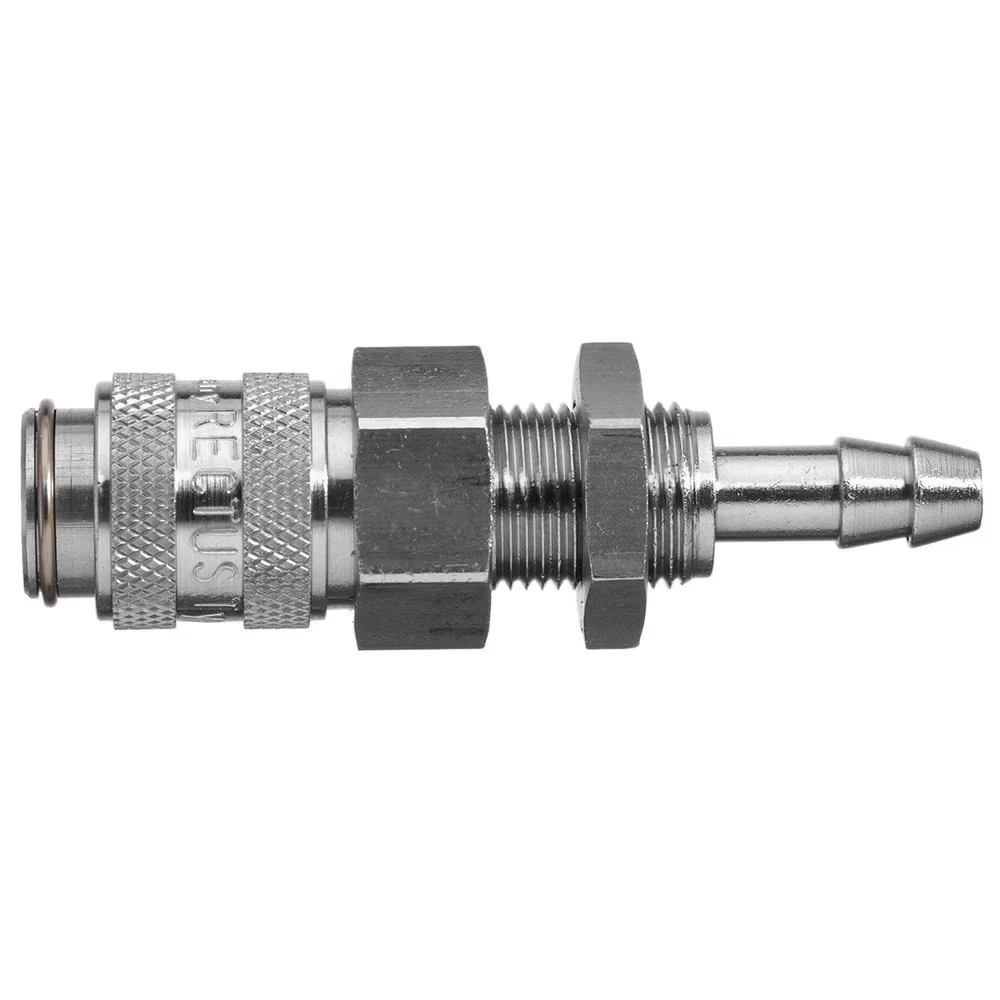

9226 21 04 By Parker | Legris Coupler Quick Disconnect W/ Panel Mount | 4 Mm Hose Barb X M10x1 Metric Thread | 14 Mm Hex | 14 Mm Hex | 60 Mm Length | Straight | Nickel-Plated Brass | Pack Of 5

9226 21 04 By Parker | Legris Coupler Quick Disconnect W/ Panel Mount | 4 Mm Hose Barb X M10x1 Metric Thread | 14 Mm Hex | 14 Mm Hex | 60 Mm Length | Straight | Nickel-Plated Brass | Pack Of 5

Original price was: $158.36.Current price is: $98.99.

SKU: AG9ZZ 14646635561330 Categories: , Tags: ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers
Series 21 – Brass/Steel Series: Double Shut-Off Mini industrial coupling with the world’s most popular profile in this nominal diameter. Above average flow performance for liquid and gaseous media. Coupling system with single-hands operation. Small dimensions and large bandwidth in materials and valve variants.

  1. Available on request:

with additional end connections
other seals for different temperature ranges and fluids
Working Pressure:
  • up to 35 bar
Material:
  • Coupling: Nickel-Plated Brass
  • Plug: Nickel-Plated Brass
  • Seals: NBR
Working Temperature:
  • -20°C up to +100°C (NBR)
Flow Rate Air:
  • 310 l/min. (inlet pressure 6 bar, pressure dop 0.5 bar)
Flow Rate Water:
  • 2.7 l/min. (Pressure dop 0.5 bar)
9226 21 04 By Parker | Legris Coupler Quick Disconnect W/ Panel Mount | 4 Mm Hose Barb X M10x1 Metric Thread | 14 Mm Hex | 14 Mm Hex | 60 Mm Length | Straight | Nickel-Plated Brass | Pack Of 5 -Hose Ware House Screenshot 2024 10 11 112447
Part Number A L L1 L1 L1 L1 L1 L1 D Kg
9226 21 04 4 mm 14 mm 14 mm 3 mm M10x1 60 mm 17 mm 14 mm 16 mm .084 Kg
9226 21 06 6 mm 17 mm 17 mm 4 mm M12x1 60 mm 17 mm 14 mm 16 mm .104 Kg
9226 21 08 8 mm 17 mm 17 mm 4 mm M12x1 60 mm 17 mm 14 mm 16 mm .112 Kg
