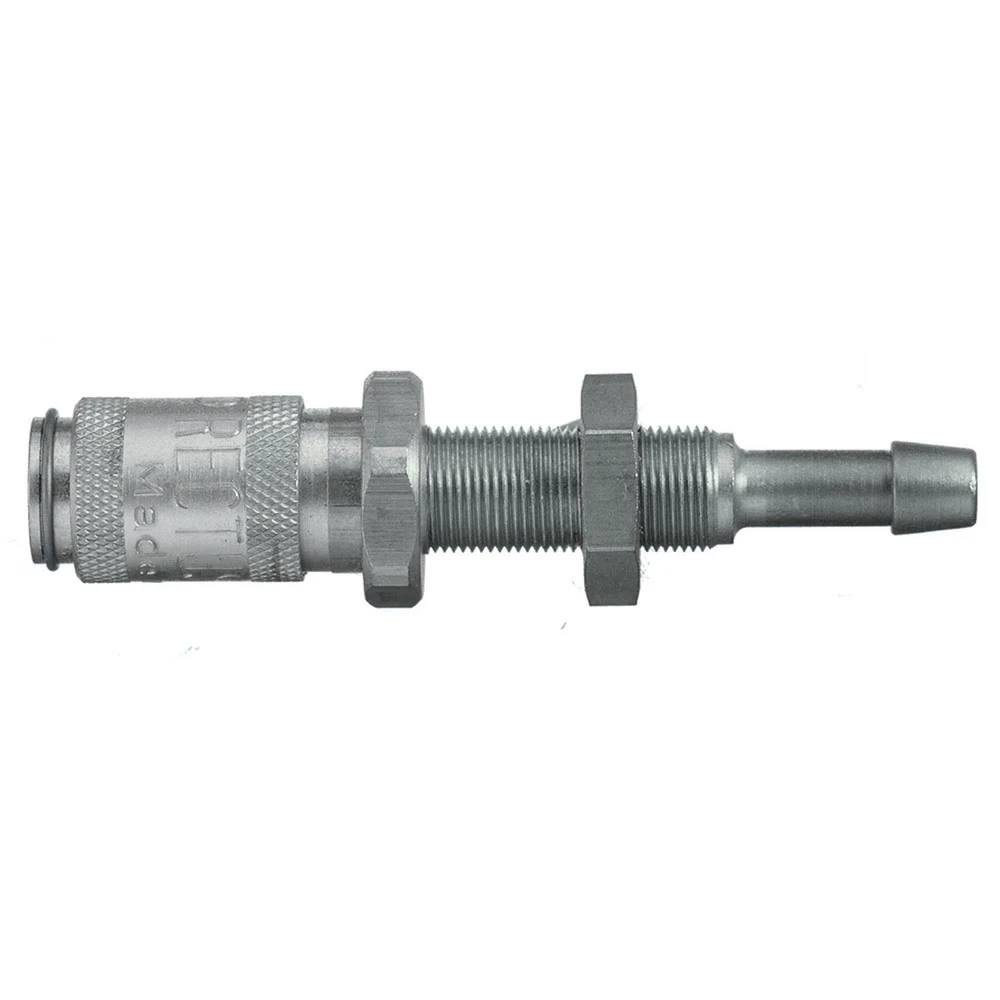

9226 20 04 By Parker | Legris Coupler Quick Disconnect W/ Panel Mount | 4 Mm Hose Barb X M7x0.5 Metric Thread | 12 Mm Hex | 11 Mm Hex (1) | 51 Mm Length | Straight | Nickel-Plated Brass | Pack Of 5
Original price was: $171.60.$97.99Current price is: $97.99.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
| Series 20 – Brass/Steel Series: Double Shut-Off | Mini Industrial coupling with internationally used profile. Frequent use in medical technology and chemistry/pharmacy. Coupling system with single-hand operation. Wide range of applications with different media.
with additional end connections |
|---|---|
| Working Pressure: |
|
| Material: |
|
| Working Temperature: |
|
| Flow Rate Air: |
|
| Flow Rate Water: |
|
 |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | A | Hex | Hex 1 | B | G | L | L1 | L2 | D | Kg |
| 9226 20 03 | 3 mm | 12 mm | 11 mm | 3 mm | M7x0.5 | 51 mm | 13 mm | 17 mm | 10 mm | .015 Kg |
| 9226 20 04 | 4 mm | 12 mm | 11 mm | 3 mm | M7x0.5 | 51 mm | 13 mm | 17 mm | 10 mm | .015 Kg |
