Sale!

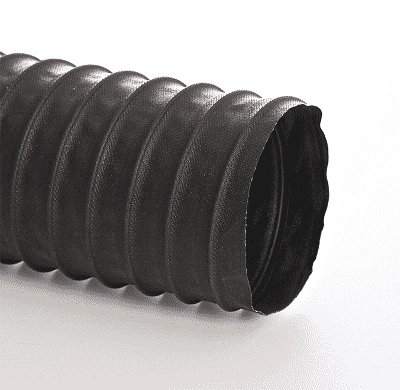

9-CWGP-25 By Flexaust | #1030900025 | CWGP Series | Dust Duct Hose | 9 Inch | 25ft

Original price was: $368.00.Current price is: $96.99.

Other Features:
Applications:	Aluminum Refractory, Car Wash, Flame Retardant, Flight Simulators, Grinders, HEPA, Landfill Venting, Laser Engraving, Mining, Off-Road, Plastic Bag Machines, Sheet Metal, Shipyards, Wave Pool Blowers	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Double-ply black neoprene coated polyester fabric
Reinforcement:	Spring steel wire helix	Cover:	N/A
Temperature Range:	-40 deg. F to 250 deg. F	Crimp Fittings:	N/A
Reusable Fittings:	N/A
Good crush resistance & tensile strength Neoprene coating offers excellent abrasion & chemical resistance. Good flexibility. More durable than double-ply cotton hoses. Listed as UL 94V-0 flame retardant.

Part Number 25 ft Reels	Inside Diameter	Centerline Bend Radius (In)	Compression Ratio	Negative Pressure (In/Hg)	Working Pressure (PSI)	Weight – 25ft (Lbs/Ft)
CWGP 1in	1″	1.1″	3:1	29	30	3 lbs
CWGP 1.25in	1.25″	1.3″	3:1	29	30	3.5 lbs
CWGP 1.5in	1.5″	1.7″	3:1	29	30	4.25 lbs
CWGP 1.75in	1.75″	1.85″	3:1	29	30	5 lbs
CWGP 2in	2″	2″	4:1	29	30	6.25 lbs
CWGP 2.25in	2.25″	N/A	N/A	N/A	N/A	N/A
CWGP 2.5in	2.5″	1.8″	4:1	29	30	7.25 lbs
CWGP 3in	3″	2.4″	4:1	29	30	8.5 lbs
CWGP 3.5in	3.5″	2.5″	4:1	22	29	10 lbs
CWGP 4in	4″	3.1″	5:1	29	30	14 lbs
CWGP 4.5in	4.5″	3.2″	5:1	23	19	15.75 lbs
CWGP 5in	5″	3.5″	5:1	17	17	18.75 lbs
CWGP 5.5in	5.5″	4″	5:1	16	14	20.25 lbs
CWGP 6in	6″	4.5″	5:1	21	11	23.75 lbs
CWGP 7in	7″	5″	5:1	14	8	24.75 lbs
CWGP 8in	8″	6″	6:1	12	6.5	27.5 lbs
CWGP 9in	9″	6.5″	6:1	9	6	30 lbs
CWGP 10in	10″	7.5″	8:1	7	5	32.5 lbs
CWGP 12in	12″	8″	8:1	4	4.3	37.5 lbs
CWGP 14in	14″	10″	8:1	3.7	3.6	55 lbs
CWGP 16in	16″	12″	8:1	2.5	3.2	62.5 lbs
CWGP 18in	18″	13″	8:1	1.8	3	70 lbs
CWGP 20in	20″	14″	8:1	1.3	2.6	77.5 lbs
CWGP 22in	22″	15″	8:1	.81	2.4	87.5 lbs
CWGP 24in	24″	17″	8:1	.75	2.2	95 lbs
