Sale!

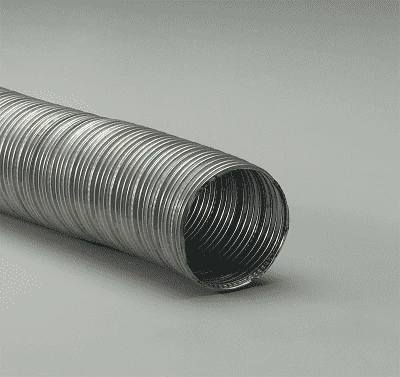

9-Bendway-S-10 By Flexaust | #4970900010 | Bendway S | Air And Fume Duct Hose | 9 Inch | 10ft
9-Bendway-S-10 By Flexaust | #4970900010 | Bendway S | Air And Fume Duct Hose | 9 Inch | 10ft - Image 2
9-Bendway-S-10 By Flexaust | #4970900010 | Bendway S | Air And Fume Duct Hose | 9 Inch | 10ft -Hose Ware House Bendway add 93dbfa0c 652b 4763 be32 1efe22f575bf

9-Bendway-S-10 By Flexaust | #4970900010 | Bendway S | Air And Fume Duct Hose | 9 Inch | 10ft

Original price was: $273.87.Current price is: $95.99.

SKU: AG9ZZ 1478472826916 Categories: , Tags: , , , , , , , , , , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers

SPECIFICATIONS

Applications: Chemical Fume Extraction, Circuit Board Cooling, Fireplace Inserts, HVAC, Oil Mist Extraction SAE Rating: N/A
Other Ratings: N/A Tube: Single-ply helically corrugated stainless steel alloy
Reinforcement: Four-ply finished seam that is folded flat and crimped for tightness and strength Cover: N/A
Temperature Range: -400 deg. F to 800 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Light weight & hand bendable allowing for elbows & turns to be formed easily during installation.
  • Self-supporting construction allows for bends to stay in place.
  • Resists metal fatigue, weathering, & most corrosive fumes & chemicals.
  • Not recommended for continuous flexing.
Part Number
5 ft Reels		 Part Number
10 ft Reels		 Inside
Diameter		 Wall Thickness
(In)		 Centerline
Bend Radius
(In)		 Compression
Ratio		 Negative Pressure
(In/Hg)		 Working Pressure
(PSI)		 Weight – 5ft
(Lbs/Ft)		 Weight – 10ft
(Lbs/Ft)
Bendway S 2in Bendway S 2in 2″ .005″ 2.1″ N/A N/A N/A 0.85 lbs 1.7 lbs
Bendway S 3in Bendway S 3in 3″ .005″ 3.3″ N/A N/A N/A 1.55 lbs 3.1 lbs
Bendway S 4in Bendway S 4in 4″ .005″ 4.3″ N/A N/A N/A 1.75 lbs 3.5 lbs
Bendway S 5in Bendway S 5in 5″ .005″ 5.4″ N/A N/A N/A 2.25 lbs 4.5 lbs
Bendway S 6in Bendway S 6in 6″ .005″ 6.5″ N/A N/A N/A 2.7 lbs 5.4 lbs
Bendway S 7in Bendway S 7in 7″ .005″ 7.5″ N/A N/A N/A 3.1 lbs 6.2 lbs
Bendway S 8in Bendway S 8in 8″ .005″ 8.7″ N/A N/A N/A 3.2 lbs 6.4 lbs
Bendway S 9in Bendway S 9in 9″ N/A N/A N/A N/A N/A N/A N/A
Bendway S 10in Bendway S 10in 10″ .005″ 10.8″ N/A N/A N/A 4 lbs 8 lbs
Bendway S 12in Bendway S 12in 12″ .005″ 13″ N/A N/A N/A 4.75 lbs 9.5 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.
