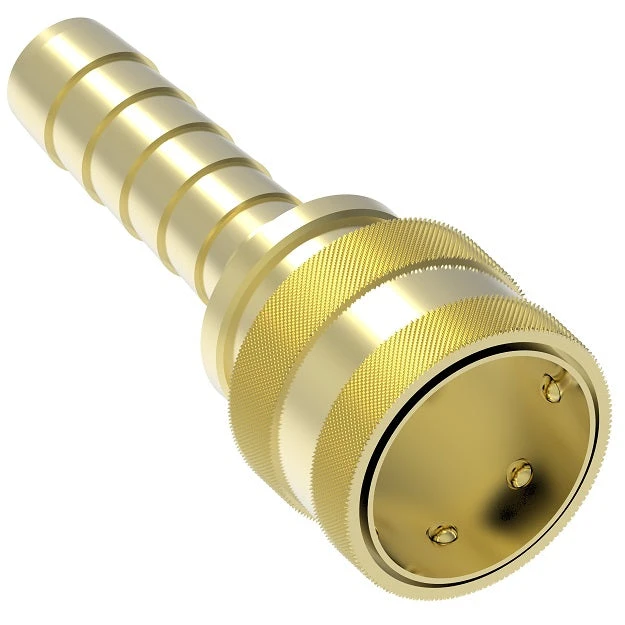

8S37 Hansen® By Danfoss | Quick Disconnect Coupling | ST Series | 1" Hose ID X 1" Body Size | Socket | NBR Seal | Brass

8S37 Hansen® By Danfoss | Quick Disconnect Coupling | ST Series | 1" Hose ID X 1" Body Size | Socket | NBR Seal | Brass - Image 2

8S37 Hansen® By Danfoss | Quick Disconnect Coupling | ST Series | 1" Hose ID X 1" Body Size | Socket | NBR Seal | Brass - Image 3

8S37 Hansen® By Danfoss | Quick Disconnect Coupling | ST Series | 1″ Hose ID X 1″ Body Size | Socket | NBR Seal | Brass

Original price was: $75.78.Current price is: $53.05.

SKU: AG9ZZ 1481723936804 Categories: Adapters & More, Quick Disconnects w/o Barb Tags: All-categories, Collection-lvl1_All Hose Ends, Collection-lvl2_Quick Disconnects, Eaton ST Series Quick Disconnect Couplings, Hydraulic Hoses and Fittings, Hydraulic Quick Disconnect Couplings, LegacyProductTypeReplacement_All Categories, Matrixify2nd50kProducts, PriceTeirs_Quick Disconnects, Quick-disconnects, Special Applications, ST Series Hose Stem Sockets/Plugs

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Hansen® by Danfoss
ST Series | Hose Stem End Connection

Fluid Transfer and Hydraulic Quick Disconnect Coupling

Danfoss Hansen ST Series is a straight-through coupling that is designed for use where minimum pressure drop is required and valving is not needed.

These couplings are suited for various and versatile fluid transfer type systems.

Product Features:	Ball-latching mechanism. Smooth bore permits free flow of liquid or gas.
Applications & Markets:	Fluid Transfer Chemical Food and Beverage Injection Molding Marine Medical Pressure Washing Steam Cleaning
Materials:	Standard body material: Brass, 303 Stainless Steel, Steel Standard seal material: Nitrile (NBR)
European Pressure Equipment Directive:	Couplings with nominal diameters up to and including 25 mm are designed and manufactured under Article 4.3 of the European Pressure Equipment Directive PED 2014/68/EU. Couplings with nominal diameters greater than 25 mm are designed and manufactured in accordance with the stipulations of Module A of the European Pressure Equipment Directive PED 2014/68/EU. They should not be used to convey unstable gases.

Series	Body Size	Max. Operating Pressure Brass Socket & Plug**		Max. Operating Pressure Brass Socket & Steel Plug**		Max. Operating Pressure Stainless Socket & Plug**		Max. Operating Pressure Hazardous Liquids and Gases Group 1		Min. Burst Pressure*		Rated Flow
Series	Body Size	bar	psi	bar	psi	bar	psi	bar	psi	bar	psi	Rated Flow
1ST	1/8″	193 bar	2,800 psi	234 bar	3,400 psi	290 bar	4,200 psi	*** bar	*** psi	772 bar	11,200 psi	10 lpm	2.7 gpm
2ST	1/4″	359 bar	5,200 psi	379 bar	5,500 psi	517 bar	7,500 psi	*** bar	*** psi	1,436 bar	20,800 psi	21 lpm	5.6 gpm
3ST	3/8″	193 bar	2,800 psi	290 bar	4,200 psi	434 bar	6,300 psi	*** bar	*** psi	772 bar	11,200 psi	57 lpm	15 gpm
4ST	1/2″	152 bar	2,200 psi	241 bar	3,500 psi	248 bar	3,600 psi	*** bar	*** psi	608 bar	8,800 psi	83 lpm	22 gpm
6ST	3/4″	117 bar	1,700 psi	145 bar	2,100 psi	207 bar	3,000 psi	*** bar	*** psi	468 bar	6,800 psi	250 lpm	66 gpm
8ST	1″	90 bar	1,300 psi	138 bar	2,000 psi	138 bar	2,000 psi	*** bar	*** psi	360 bar	5,200 psi	530 lpm	140 gpm
10ST	1-1/4″	117 bar	1,700 psi	186 bar	2,700 psi	152 bar	2,200 psi	*** bar	*** psi	468 bar	6,800 psi	697 lpm	184 gpm
12ST	1-1/2″	97 bar	1,400 psi	152 bar	2,200 psi	172 bar	2,500 psi	33 bar	480 psi	388 bar	5,600 psi	1,124 lpm	297 gpm
16ST	2″	97 bar	1,400 psi	152 bar	2,200 psi	103 bar	1,500 psi	27 bar	390 psi	388 bar	5,600 psi	1,855 lpm	490 gpm
20ST	2-1/2″	62 bar	900 psi	103 bar	1,500 psi	–	–	20 bar	290 psi	248 bar	3,600 psi	3,131 lpm	827 gpm

*For Brass socket and plug. Other materials have 4 to 1 safety factor
** Operating pressure for Non Hazardous liquids and gases from Group 2
*** Operating pressure is same as Non Hazardous liquids and gases from Group 2 for this size


Socket/Female (Figure 1)
ST Series \| Sockets \| Hose Stem Ends
Brass Part Number	303 Stainless Steel Part Number	Body Size	Type	Hose ID	Figure	Dimensions
NBR Seal	NBR Seal	Body Size	Type	Hose ID	Figure	A	B
1S12	LL1S12	1/8″	Socket/Female	3/16″	1	1.41″ (35.8mm)	0.72″ (18.3mm)
1S17	LL1S17	1/8″	Socket/Female	1/4″	1	1.41″ (35.8mm)	0.72″ (18.3mm)
2S17	–	1/4″	Socket/Female	1/4″	1	2.10″ (53.3mm)	0.97″ (24.6mm)
3S22	LL3S22	3/8″	Socket/Female	3/8″	1	2.09″ (53.1mm)	1.16″ (29.5mm)
4S27	LL4S27	1/2″	Socket/Female	1/2″	1	2.19″ (55.6mm)	1.34″ (34.0mm)
6S32	LL6S32	3/4″	Socket/Female	3/4″	1	3.19″ (81.0mm)	1.72″ (43.7mm)
8S37	LL8S37	1″	Socket/Female	1″	1	3.32″ (84.3mm)	2.03″ (51.6mm)


Plug/Male (Figure 2)
ST Series \| Plugs \| Hose Stem Ends
Brass Part Number	303 Stainless Steel Part Number	Steel Part Number	Body Size	Type	Hose ID	Figure	Dimensions
NBR Seal	NBR Seal	NBR Seal	Body Size	Type	Hose ID	Figure	C	D
B1T12	LL1T12	–	1/8″	Plug/Male	3/16″	2	1.28″ (32.5mm)	0.44″ (11.2mm)
B1T17	LL1T17	–	1/8″	Plug/Male	1/4″	2	1.28″ (32.5mm)	0.44″ (11.2mm)
B2T17	LL2T17	–	1/4″	Plug/Male	1/4″	2	1.93″ (49.0mm)	0.56″ (14.2mm)
B3T22	LL3T22	–	3/8″	Plug/Male	3/8″	2	2.09″ (53.1mm)	0.69″ (17.5mm)
B4T27	LL4T27	–	1/2″	Plug/Male	1/2″	2	2.17″ (55.1mm)	0.88″ (22.4mm)
B6T32	LL6T32	–	3/4″	Plug/Male	3/4″	2	3.17″ (80.5mm)	1.19″ (30.2mm)
B8T37	–	8T37	1″	Plug/Male	1″	2	3.28″ (83.3mm)	1.5″ (38.1mm)
