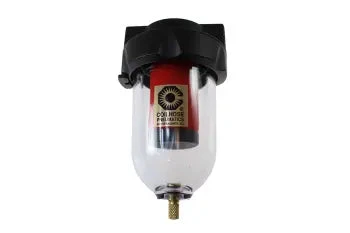

8922R By Coilhose | Heavy Duty Series Coalescing Filter | Bowl Guard | 1/4″ Pipe Size | Die Cast Aluminum

Original price was: $100.62.Current price is: $70.43.

SKU: AG9ZZ 14699091951986 Categories: Pneumatic Equipment, Tools & Equipment Tags: 029292171328, 1/4" Pipe size, 8922R, Bowl Guard, Coalescing Filter, Coilhose, Filter, Filters solids, Fluid filter, Heavy Duty Series, Removes solids

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Overview:
The Heavy Duty Series Filters have a long-established reputation for high quality and reliability. This series continues to provide time proven value with a 1/4″ to 1″ size range, die cast aluminum bodies, extra large filter elements, easy maintenance and design consistency.
Features:
Removes 99.9% of solids and fluids down to .1 microns. Bowl guards supplied standard on 3/4″ and 1″ sizes. Optional on 1/4″, 3/8″ and 1/2″ sizes. Hi-strength plastic bowls supplied standard. 8.5 oz bowl capacity. Easy hands only filter element replacement. Automatic drain and metal bowl with sight glass options.
Warning:
Although polycarbonate bowls are capable of withstanding extreme physical abuse, they are susceptible to damage and may possibly burst when subjected to some cleaning products and synthetic oils, particularly phosphate esters. Should there be any questions regarding their compatibility with your applications, consult the factory or use a metal bowl.

Maximum Supply Pressure:	Plastic Bowl: 150 PSI Metal Bowl: 250 PSI	Maximum Operating Temp.:	Plastic Bowl: 120° F Metal Bowl: 250° F
Materials:	Plastic Bowl: Polycarbonate Metal Bowl: Aluminum Body: Die Cast Aluminum

Size	Height	Diameter	Bowl Capacity	Weight
1/4″ & 3/8″	6″	3″	4 oz.	3/4 lbs.
1/2″	7″	3 1/2″	8 oz.	1 lbs.
3/4″ & 1″	9″	5″	23 oz.	4 lbs.

SCFM at 1.5 PSID Pressure Drop
Supply Pressure	1/2″	3/4″ & 1″
20 PSI	6.1	22.7
40 PSI	9.5	33.8
60 PSI	13	48.9
80 PSI	16.5	62.0
100 PSI	20	75.0
Note: All values are approximate.

Model	Pipe Size	Drain	Material	Max Pressure	Micron Level
8922	1/4″	Manual	Polycarbonate	150 PSI	0.3 Micron Element
8822D	1/4″	Automatic	Polycarbonate	150 PSI	0.3 Micron Element
8922M	1/4″	Manual	Metal	250 PSI	0.3 Micron Element
8922MD	1/4″	Automatic	Metal	250 PSI	0.3 Micron Element
8922R	1/4″	Manual	Poly w/ Bowl Guard	150 PSI	0.3 Micron Element
8922RD	1/4″	Automatic	Poly w/ Bowl Guard	150 PSI	0.3 Micron Element

8923	3/8″	Manual	Polycarbonate	150 PSI	0.3 Micron Element
8923D	3/8″	Automatic	Polycarbonate	150 PSI	0.3 Micron Element
8923M	3/8″	Manual	Metal	250 PSI	0.3 Micron Element
8923MD	3/8″	Automatic	Metal	250 PSI	0.3 Micron Element
8923R	3/8″	Manual	Poly w/ Bowl Guard	150 PSI	0.3 Micron Element
8923RD	3/8″	Automatic	Poly w/ Bowl Guard	150 PSI	0.3 Micron Element

8924	1/2″	Manual	Polycarbonate	150 PSI	0.3 Micron Element
8924M	1/2″	Manual	Metal	250 PSI	0.3 Micron Element
8924R	1/2″	Manual	Poly w/ Bowl Guard	150 PSI	0.3 Micron Element

8926	3/4″	Manual	Poly w/ Bowl Guard	150 PSI	0.3 Micron Element
8926M	3/4″	Manual	Metal	250 PSI	0.3 Micron Element

8928	1″	Manual	Poly w/ Bowl Guard	150 PSI	0.3 Micron Element
8928M	1″	Manual	Metal	250 PSI	0.3 Micron Element
