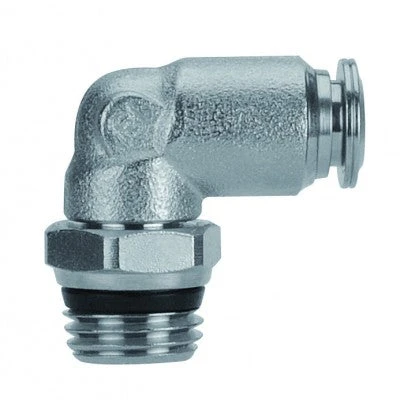

89110-06-04 By AIGNEP | 89 Series | Swivel Metal Release Collet | 3/8" Tube X 1/4" Swift-Fit Male | 90° Elbow | Pack Of 10

89110-06-04 By AIGNEP | 89 Series | Swivel Metal Release Collet | 3/8" Tube X 1/4" Swift-Fit Male | 90° Elbow | Pack Of 10 - Image 2

89110-06-04 By AIGNEP | 89 Series | Swivel Metal Release Collet | 3/8″ Tube X 1/4″ Swift-Fit Male | 90° Elbow | Pack Of 10

Original price was: $30.53.Current price is: $21.37.

SKU: AG9ZZ 8082890719397 Categories: Fittings & Clamps, Tube Fittings Tags: 3/8" Tube x 1/4" Swift-Fit Male, 89 Series, Collection-lvl1_All Hose Ends, Collection-lvl2_Ends for Special Hose Types, Collection-lvl3_Tube Fittings, Matrixify2nd50kProducts, Swivel Male Elbow Metal Release Collet

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Swivel Elbow Metallic

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT

Product Number	Tube	A	B (IN)	B	L1	L2	CH1	CH2	D
89110-02-32	1/8″	10-32	0.197″	5 mm	18 mm	20 mm	9 mm	8 mm	10 mm
89110-02-02	1/8″	1/8″	0.276″	7 mm	18 mm	9 mm	9 mm	13 mm	10 mm
89110-02-04	1/8″	1/4″	0.334″	8.5 mm	18 mm	19.6 mm	9 mm	15 mm	10 mm
89110-53-32	5/32″	10-32	0.197″	5 mm	18 mm	20 mm	9 mm	8 mm	10 mm
89110-53-02	5/32″	1/8″	0.216″	5.5 mm	18 mm	19.5 mm	9 mm	13 mm	10 mm
89110-53-04	5/32″	1/4″	0.276″	7 mm	18 mm	21 mm	9 mm	15 mm	10 mm
89110-04-32	1/4″	10-32	0.197″	5 mm	21 mm	22 mm	11 mm	8 mm	14.5 mm
89110-04-02	1/4″	1/8″	0.276″	7 mm	22.5 mm	19.7 mm	11 mm	13 mm	12.5 mm
89110-04-04	1/4″	1/4″	0.334″	8.5 mm	22.5 mm	19.7 mm	11 mm	15 mm	12.5 mm
89110-04-06	1/4″	3/8″	0.354″	9 mm	22.5 mm	19.7 mm	11 mm	17 mm	12.5 mm
89110-05-02	5/16″	1/8″	0.216″	5.5 mm	22.5 mm	22.5 mm	12 mm	13 mm	14.5 mm
89110-05-04	5/16″	1/4″	0.276″	7 mm	22.5 mm	22.5 mm	12 mm	15 mm	14.5 mm
89110-05-06	5/16″	3/8″	0.295″	7.5 mm	22.5 mm	23 mm	12 mm	17 mm	14.5 mm
89110-05-08	5/16″	1/2″	0.354″	9 mm	22.5 mm	25.5 mm	12 mm	21 mm	14.5 mm
89110-06-02	3/8″	1/8″	0.276″	7 mm	26.5 mm	26 mm	14 mm	14 mm	17.5 mm
89110-06-04	3/8″	1/4″	0.334″	8.5 mm	26.5 mm	26 mm	14 mm	15 mm	17.5 mm
89110-06-06	3/8″	3/8″	0.354″	9 mm	24.5 mm	26 mm	14 mm	17.5 mm	17.5 mm
89110-06-08	3/8″	1/2″	0.334″	8.5 mm	26.5 mm	26 mm	14 mm	21 mm	17.5 mm
89110-08-04	1/2″	1/4″	0.334″	8.5 mm	30.5 mm	28.5 mm	16 mm	15 mm	21.5 mm
89110-08-06	1/2″	3/8″	0.354″	9 mm	30.5 mm	26.5 mm	16 mm	17 mm	21.5 mm
89110-08-08	1/2″	1/2″	0.413″	10.5 mm	30.5 mm	29 mm	16 mm	21 mm	21.5 mm
