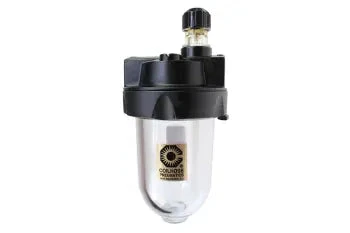

8846 By Coilhose | Heavy Duty Series Lubricator | 3/4″ Pipe Size | Die Cast Aluminum

Original price was: $141.69.Current price is: $96.99.

SKU: AG9ZZ 14699093852530 Category: Tools & Equipment Tags: 029292166164, 3/4" Pipe Size, 8846, Coilhose, Even lubrication, Fill port, Heavy Duty Series, Lubricator, Mist atomizing, Oil-to-air, Sight glass, Tamperproof cap

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Overview:
The Heavy Duty Series Lubricators have a long established reputation for high quality and unsurpassed reliability. A tamperproof cap allows oil delivery rate to be locked in, and once oil delivery is set, proportional oil-to-air delivery assures constant even lubrication.
Features:
Mist atomizing sight glass. Refills through fill port without requiring depressurization. Quick fill plug option available. Bowl guard supplied standard on 3/4″ and 1″. Optional on 1/4″, 3/8″ and 1/2″.
Warning:
Although polycarbonate bowls are capable of withstanding extreme physical abuse, they are susceptible to damage and may possibly burst when subjected to some cleaning products and synthetic oils, particularly phosphate esters. Should there be any questions regarding their compatibility with your applications, consult the factory or use a metal bowl.

Maximum Supply Pressure:	Plastic Bowl:150 PSI Metal Bowl:250 PSI	Materials:	Plastic Bowl: Polycarbonate Metal Bowl: Die Cast Aluminum Body: Die Cast Aluminum

Size	Height	Diameter	Bowl Capacity	Weight
1/4″ & 3/8″	7″	3″	4 oz.	1 lbs.
1/2″	8″	3-1/2″	8 oz.	1-1/4 lbs.
3/4″ & 1″	11-1/2″	5″	23 oz.	3-1/2 lbs.

Supply 100 PSI Regulated Pressure	Pressure Drop
Supply 100 PSI Regulated Pressure	5	10	15
1/4″ at 80 PSI	27.5 SCFM	39 SCFM	48 SCFM
3/8″ at 80 PSI	27.5 SCFM	39 SCFM	48 SCFM
1/2″ at 80 PSI	55 SCFM	79 SCFM	97 SCFM
3/4″ at 80 PSI	110 SCFM	158 SCFM	195 SCFM
1″ at 80 PSI	110 SCFM	158 SCFM	195 SCFM
Note: All values are approximate.

Model	Pipe Size	Material	Max Pressure
8842	1/4″	Polycarbonate	150 PSI
8842-CS*	1/4″	Polycarbonate	150 PSI
8842M	1/4″	Metal	250 PSI
8842R	1/4″	Polycarbonate with Bowl Guard	150 PSI

8843	3/8″	Polycarbonate	150 PSI
8843-CS*	3/8″	Polycarbonate	150 PSI
8843M	3/8″	Metal	250 PSI
8843R	3/8″	Polycarbonate with Bowl Guard	150 PSI

8844	1/2″	Polycarbonate	150 PSI
8844R	1/2″	Polycarbonate with Bowl Guard	150 PSI
8844M	1/2″	Metal	250 PSI

8846	3/4″	Polycarbonate with Bowl Guard	150 PSI
8846M	3/4″	Metal	250 PSI

8848	1″	Polycarbonate with Bowl Guard	150 PSI
8848M	1″	Metal	250 PSI
