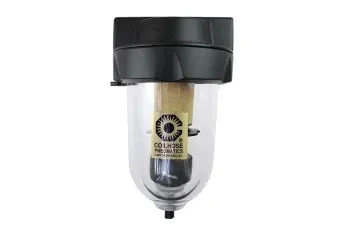

8822FD By Coilhose | Heavy Duty Series Filter | 20 Micron Element | Automatic Drain | 1/4″ Pipe Size | Die Cast Aluminum

Original price was: $99.23.Current price is: $69.46.

SKU: AG9ZZ 14699089461618 Categories: Pneumatic Equipment, Tools & Equipment Tags: 029292155120, 1/4" Pipe size, 20 Micron Element, 8822FD, Aluminum, Automatic Drain, Bayonet locking ring, Coilhose, Die cast, Easy maintenance, Extra large filter, Filter, Heavy Duty Series

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Overview:
The Heavy Duty Series Filters have a long-established reputation for high quality and reliability. This series continues to provide time proven value with a 1/4″ to 1″ size range, die cast aluminum bodies, extra large filter elements, easy maintenance and design consistency.
Features:
Large 40, 20 or 12 micron sintered bronze elements. Bayonet locking ring allows easy bowl removal by hand. Hi-strength plastic bowls supplied standard. Bowl guards supplied standard on 3/4″ and 1″ sizes. Optional on 1/4″, 3/8″ and 1/2″ sizes. Automatic drains available.
Warning:
Although polycarbonate bowls are capable of withstanding extreme physical abuse, they are susceptible to damage and may possibly burst when subjected to some cleaning products and synthetic oils, particularly phosphate esters. Should there be any questions regarding their compatibility with your applications, consult the factory or use a metal bowl.

Maximum Supply Pressure:	Plastic Bowl: 150 PSI Metal Bowl: 250 PSI	Maximum Operating Temp.:	Plastic Bowl: 120° F Metal Bowl: 250° F
Filter Element:	Standard: 40 Micron Optional: 20 & 12 Micron	Materials:	Plastic Bowl: Polycarbonate Metal Bowl: Aluminum Body: Die Cast Aluminum Filter Element: Sintered Bronze

Size	Height	Diameter	Bowl Capacity	Weight
1/4″ & 3/8″	6″	3″	4 oz.	3/4 lbs.
1/2″	7″	3 1/2″	8 oz.	1 lbs.
3/4″ & 1″	9″	5″	23 oz.	4 lbs.

Supply Pressure	Pressure Drop
Supply Pressure	1	2	3	4	5
1/4″ at 80 PSI	25 SCFM	35 SCFM	42 SCFM	50 SCFM	55 SCFM
3/8″ at 80 PSI	25 SCFM	35 SCFM	42 SCFM	50 SCFM	55 SCFM
1/2″ at 80 PSI	38 SCFM	61 SCFM	80 SCFM	95 SCFM	108 SCFM
3/4″ at 80 PSI	119 SCFM	160 SCFM	200 SCFM	240 SCFM	260 SCFM
1″ at 80 PSI	119 SCFM	160 SCFM	200 SCFM	240 SCFM	260 SCFM
Note: All values are approximate.

Model	Pipe Size	Drain	Material	Max Pressure	Micron Level
8822	1/4″	Manual	Polycarbonate	150 PSI	40 Micron Element
8822-CS*	1/4″	Manual	Polycarbonate	150 PSI	40 Micron Element
8822X	1/4″	Manual	Polycarbonate	150 PSI	12 Micron Element
8822RX	1/4″	Manual	Poly w/ Bowl Guard	150 PSI	12 Micron Element
8822MX	1/4″	Manual	Metal Bowl	250 PSI	12 Micron Element
8822MF	1/4″	Manual	Metal Bowl	250 PSI	20 Micron Element
8822FD	1/4″	Auto	Polycarbonate	150 PSI	20 Micron Element
8822F	1/4″	Manual	Polycarbonate	150 PSI	20 Micron Element
8822RD	1/4″	Auto	Poly w/ Bowl Guard	150 PSI	40 Micron Element
8822R	1/4″	Manual	Poly w/ Bowl Guard	150 PSI	40 Micron Element
8822MD	1/4″	Auto	Metal Bowl	250 PSI	40 Micron Element
8822M	1/4″	Manual	Metal Bowl	250 PSI	40 Micron Element
8822D	1/4″	Auto	Polycarbonate	150 PSI	40 Micron Element

8823-CS*	3/8″	Manual	Polycarbonate	150 PSI	40 Micron Element
8823	3/8″	Manual	Polycarbonate	150 PSI	40 Micron Element
8823X	3/8″	Manual	Polycarbonate	150 PSI	12 Micron Element
8823RXD	3/8″	Auto	Poly w/ Bowl Guard	150 PSI	12 Micron Element
8823RX	3/8″	Manual	Poly w/ Bowl Guard	150 PSI	12 Micron Element
8823MX	3/8″	Manual	Metal Bowl	250 PSI	12 Micron Element
8823F	3/8″	Manual	Polycarbonate	150 PSI	20 Micron Element
8823RD	3/8″	Auto	Poly w/ Bowl Guard	150 PSI	40 Micron Element
8823R	3/8″	Manual	Poly w/ Bowl Guard	150 PSI	40 Micron Element
8823MD	3/8″	Auto	Metal Bowl	250 PSI	40 Micron Element
8823M	3/8″	Manual	Metal Bowl	250 PSI	40 Micron Element
8823D	3/8″	Auto	Polycarbonate	150 PSI	40 Micron Element

8824	1/2″	Manual	Polycarbonate	150 PSI	40 Micron Element
8824MX	1/2″	Manual	Metal Bowl	250 PSI	12 Micron Element
8824MXD	1/2″	Auto	Metal Bowl	250 PSI	12 Micron Element
8824RXD	1/2″	Auto	Poly w/ Bowl Guard	150 PSI	12 Micron Element
8824X	1/2″	Manual	Polycarbonate	150 PSI	12 Micron Element
8824XD	1/2″	Auto	Polycarbonate	150 PSI	12 Micron Element
8824MFD	1/2″	Auto	Metal Bowl	250 PSI	20 Micron Element
8824MF	1/2″	Manual	Metal Bowl	250 PSI	20 Micron Element
8824F	1/2″	Manual	Polycarbonate	150 PSI	20 Micron Element
8824D	1/2″	Auto	Polycarbonate	150 PSI	40 Micron Element
8824M	1/2″	Manual	Metal Bowl	250 PSI	40 Micron Element
8824MD	1/2″	Auto	Metal Bowl	250 PSI	40 Micron Element
8824R	1/2″	Manual	Poly w/ Bowl Guard	150 PSI	40 Micron Element
8824RD	1/2″	Auto	Poly w/ Bowl Guard	150 PSI	40 Micron Element

8826	3/4″	Manual	Poly w/ Bowl Guard	150 PSI	40 Micron Element
8826D	3/4″	Auto	Poly w/ Bowl Guard	150 PSI	40 Micron Element
8826XD	3/4″	Auto	Poly w/ Bowl Guard	150 PSI	12 Micron Element
8826X	3/4″	Manual	Poly w/ Bowl Guard	150 PSI	12 Micron Element
8826MXD	3/4″	Auto	Metal Bowl	250 PSI	12 Micron Element
8826MX	3/4″	Manual	Metal Bowl	250 PSI	12 Micron Element
8826MFD	3/4″	Auto	Metal Bowl	250 PSI	20 Micron Element
8826FD	3/4″	Auto	Poly w/ Bowl Guard	150 PSI	20 Micron Element
8826F	3/4″	Manual	Poly w/ Bowl Guard	150 PSI	20 Micron Element
8826MD	3/4″	Auto	Metal Bowl	250 PSI	40 Micron Element
8826M	3/4″	Manual	Poly w/ Bowl Guard	250 PSI	40 Micron Element
8826MF	3/4″	Manual	Metal Bowl	250 PSI	20 Micron Element

8828	1″	Manual	Poly w/ Bowl Guard	150 PSI	40 Micron Element
8828MXD	1″	Auto	Metal Bowl	250 PSI	12 Micron Element
8828MX	1″	Manual	Metal Bowl	250 PSI	12 Micron Element
8828MFD	1″	Auto	Metal Bowl	250 PSI	20 Micron Element
8828MF	1″	Manual	Metal Bowl	250 PSI	20 Micron Element
8828F	1″	Manual	Poly w/ Bowl Guard	150 PSI	20 Micron Element
8828MD	1″	Auto	Metal Bowl	250 PSI	40 Micron Element
8828M	1″	Manual	Metal Bowl	250 PSI	40 Micron Element
8828D	1″	Auto	Poly w/ Bowl Guard	150 PSI	40 Micron Element
8828X	1″	Manual	Poly w/ Bowl Guard	150 PSI	12 Micron Element
