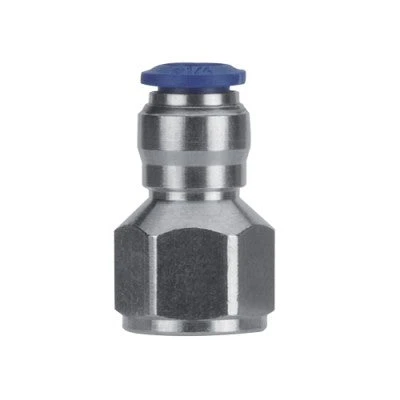

88030-02-02 By AIGNEP | 87 / 88 Series | Female Metal Release Collet | 1/8" Tube X 1/8" Female NPTF | Straight | Pack Of 10

88030-02-02 By AIGNEP | 87 / 88 Series | Female Metal Release Collet | 1/8" Tube X 1/8" Female NPTF | Straight | Pack Of 10 - Image 2

88030-02-02 By AIGNEP | 87 / 88 Series | Female Metal Release Collet | 1/8″ Tube X 1/8″ Female NPTF | Straight | Pack Of 10

Original price was: $17.47.Current price is: $12.23.

SKU: AG9ZZ 8082895732901 Categories: Fittings & Clamps, Tube Fittings Tags: 1/8" Tube x 1/8" Female NPTF, 87 / 88 Series, Collection-lvl1_All Hose Ends, Collection-lvl2_Ends for Special Hose Types, Collection-lvl3_Tube Fittings, Matrixify2nd50kProducts, Straight Female Metal Release Collet

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Straight Female

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Type: NPTF

Tube	A NPTF	B (IN)	B	L	CH
88030-02-02	1/8″	1/8″	0.374″	9.5 mm	24 mm	13 mm
88030-02-04	1/8″	1/4″	0.531″	13.5 mm	29 mm	16 mm
88030-53-02	5/32″	1/8″	0.374″	9.5 mm	25 mm	13 mm
88030-53-04	5/32″	1/4″	0.531″	13.5 mm	30 mm	16 mm
88030-04-02	1/4″	1/8″	0.374″	9.5 mm	27.5 mm	13 mm
88030-04-04	1/4″	1/4″	0.512″	13 mm	32.5 mm	16 mm
88030-06-04	3/8″	1/4″	0.531″	13.5 mm	35.5 mm	18 mm
88030-06-06	3/8″	3/8″	0.531″	13.5 mm	35.5 mm	20 mm
