Sale!

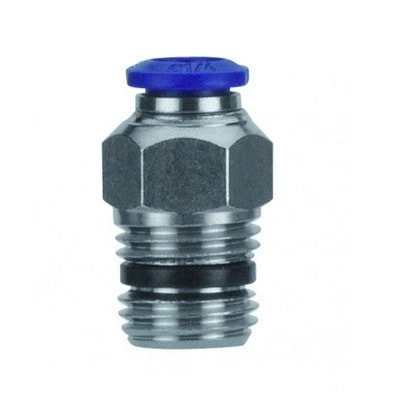

88000-06-02 By AIGNEP | 87 / 88 Series | 3/8" Tube X 1/8" Male NPTF | Straight | Pack Of 10
88000-06-02 By AIGNEP | 87 / 88 Series | 3/8" Tube X 1/8" Male NPTF | Straight | Pack Of 10 - Image 2
88000-06-02 By AIGNEP | 87 / 88 Series | 3/8" Tube X 1/8" Male NPTF | Straight | Pack Of 10 -Hose Ware House 880001 1 62af1c59 1604 4fa8 84d8 c2454a276f54

88000-06-02 By AIGNEP | 87 / 88 Series | 3/8″ Tube X 1/8″ Male NPTF | Straight | Pack Of 10

Original price was: $18.53.Current price is: $12.97.

SKU: AG9ZZ 8082895503525 Categories: , Tags: , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers

Straight Male

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon,Polyethylene,Polyurethane,Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR
Thread Type: NPTF

Product Number Tube A NPTF Thread Type B (IN) B L CH1 CH2
88000-02-02 1/8″ 1/8″ NPTF 0.335″ 8.5 mm 19.5 mm 11 mm 2 mm
88000-02-04 1/8″ 1/4″ NPTF 0.512″ 13 mm 24.5 mm 14 mm 2 mm
88000-53-02 5/32″ 1/8″ NPTF 0.335″ 8.5 mm 21 mm 11 mm 3 mm
88000-53-04 5/32″ 1/4″ NPTF 0.512″ 13 mm 25 mm 14 mm 3 mm
88000-04-02 1/4″ 1/8″ NPTF 0.335″ 8.5 mm 26 mm 13 mm 4 mm
88000-04-04 1/4″ 1/4″ NPTF 0.512″ 13 mm 27 mm 14 mm 4 mm
88000-04-06 1/4″ 3/8″ NPTF 0.512″ 13 mm 29 mm 18 mm 4 mm
88000-05-02 5/16″ 1/8″ NPTF 0.335″ 8.5 mm 27 mm 14 mm 5 mm
88000-05-04 5/16″ 1/4″ NPTF 0.512″ 13 mm 27.5 mm 14 mm 6 mm
88000-05-06 5/16″ 3/8″ NPTF 0.512″ 13 mm 27.5 mm 18 mm 6 mm
88000-06-02 3/8″ 1/8″ NPTF 0.335″ 8.5 mm 32 mm 17 mm 5 mm
88000-06-04 3/8″ 1/4″ NPTF 0.512″ 13 mm 33.5 mm 17 mm 7 mm
88000-06-06 3/8″ 3/8″ NPTF 0.512″ 13 mm 33.5 mm 18 mm 7 mm
88000-06-08 3/8″ 1/2″ NPTF 0.669″ 17 mm 33.5 mm 22 mm 7 mm
88000-08-04 1/2″ 1/4″ NPTF 0.512″ 13 mm 39 mm 20 mm 5 mm
88000-08-06 1/2″ 3/8″ NPTF 0.512″ 13 mm 36 mm 20 mm 9 mm
88000-08-08 1/2″ 1/2″ NPTF 0.669″ 17 mm 40 mm 22 mm 9 mm
