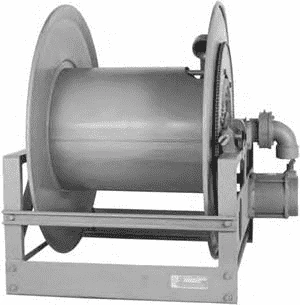

8238-39-40 By Hannay | 8000 Series | Manual Bevel Gear Crank Rewind Reel

Original price was: $315.00.Current price is: $98.99.

SKU: AG9ZZ 1476875583524 Categories: Hose Equipment, Tools & Equipment Tags: All-categories, Collection-lvl1_All Equipment, Collection-lvl2_Hose Equipment, Collection-lvl3_Hose Reels, Hannay Hose Reels, Hose-equipment, LegacyProductTypeReplacement_All Categories, Manual, Matrixify1st50kProducts, Reels for Hose, Series 8000 - Manual or Power Rewind Reels

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Applications:
Bulk Transfer Chemical Transfer General Dispensing Suction/Discharge
Features:
Heavy-duty reel designed for longer lengths and larger diameters of hose through 2″ I.D. Gear-driven crank rewind reels supplied with a pinion brake. Standard inlet 90 deg. ball bearing swivel joint 2″ female NPT threads. Standard outlet flanged riser 2″ female NPT threads Standard inlet, outlet riser and hub assembly are steel. Operate at pressures to 600 psi (41 bar). Temperatures from -60 deg. F to +175 deg. F (-51 deg. C to +79 deg. C). NOTICE: A Flexible Connector must be used between the inlet pipe and the inlet swivel joint.

Model Number	Hose Capacity of Reel (Ft.)			Approx. Weight (Lbs.)	Reel Dimensions (In.)
	I.D. (in)	1-1/2″	2″
	O.D. (in)	2-1/16″	2-9/16″		A	B	D	E	F Crank	F Power	G	H	X	Y
8234-26-27		80′ lengths	60′ lengths	120 lbs.	26.25″	20″	27″	25.75″	33.75″	34.75″	26.62″	13.75″	18.75″	23.25″
8238-26-27		100′ lengths	75′ lengths	145 lbs.	30.25″	24″	27″	25.75″	37.75″	38.75″	26.62″	13.75″	22.75″	23.25″
8246-26-27		145′ lengths	100′ lengths	196 lbs.	38.25″	32″	27″	25.75″	45.75″	46.75″	26.62″	13.75″	30.75″	23.25″
8226-33-34		85′ lengths	60′ lengths	80 lbs.	17.75″	11.5″	31.5″	31.75″	25.25″	26.25″	33.38″	17.75″	10.25″	27.75″
8234-33-34		150′ lengths	115′ lengths	133 lbs.	26.25″	20″	31.5″	31.75″	33.75″	34.75″	33.38″	17.75″	18.75″	27.75″
8238-39-40		340′ lengths	225′ lengths	218 lbs.	30.25″	24″	40″	39″	37.75″	38.75″	39.88″	20.38″	22.75″	37″
