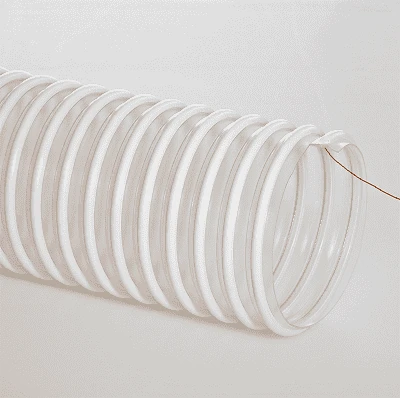

8-Flex-Tube-FlexStat-CR-25 By Flexaust | #3644080025 | Flex-Tube FlexStat CR | Fume, Dust, And Material Handling Duct Hose | 8 Inch | 25ft
Original price was: $321.00.$96.99Current price is: $96.99.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
SPECIFICATIONS
| Applications: | Clean Rooms, Food Grade, Pharmaceutical, Plastic Pellet Transfer, Powder & Bulk, Static Control | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Clear static dissipative thermoplastic polyurethane |
| Reinforcement: | Rigid white external ABS helix & an embedded copper grounding wire | Cover: | N/A |
| Temperature Range: | -40 deg. F to 200 deg. F | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | ||
| Other Features: | |||
| |||
| Part Number 25 ft Reels | Part Number 50 ft Reels | Inside Diameter | Wall Thickness (In) | Centerline Bend Radius (In) | Compression Ratio | Negative Pressure (In/Hg) | Working Pressure (PSI) | Weight – 25ft (Lbs/Ft) | Weight – 50ft (Lbs/Ft) |
|---|---|---|---|---|---|---|---|---|---|
| FlexStat CR 1in | FlexStat CR 1in | 1″ | .032 | 1.5″ | 1:1 | 29 | 50 | 4.25 lbs | 8.5 lbs |
| FlexStat CR 1.25in | FlexStat CR 1.25in | 1.25″ | .040 | 1.9″ | 1.1 | 29 | 50 | 5.25 lbs | 10.5 lbs |
| FlexStat CR 1.5in | FlexStat CR 1.5in | 1.5″ | .040 | 2″ | 1:1 | 29 | 50 | 6 lbs | 12 lbs |
| FlexStat CR 2in | FlexStat CR 2in | 2″ | .040 | 2.5″ | 1:1 | 29 | 50 | 7.5 lbs | 15 lbs |
| FlexStat CR 2.5in | FlexStat CR 2.5in | 2.5″ | .040 | 5″ | 1.5:1 | 28 | 35 | 12.5 lbs | 25 lbs |
| FlexStat CR 3in | FlexStat CR 3in | 3″ | .040 | 5.5″ | 1.5:1 | 26 | 32 | 13.75 lbs | 27.5 lbs |
| FlexStat CR 4in | FlexStat CR 4in | 4″ | .040 | 6″ | 1.5:1 | 22 | 30 | 18.75 lbs | 37.5 lbs |
| FlexStat CR 5in | FlexStat CR 5in | 5″ | .045 | 7″ | 1.5:1 | 18 | 28 | 25 lbs | 50 lbs |
| FlexStat CR 6in | FlexStat CR 6in | 6″ | .045 | 7.75″ | 1.5:1 | 12 | 26 | 31.25 lbs | 62.5 lbs |
| FlexStat CR 7in | FlexStat CR 7in | 7″ | .045 | 10″ | 1.5:1 | 11 | 25 | 37.5 lbs | 75 lbs |
| FlexStat CR 8in | FlexStat CR 8in | 8″ | .045 | 12″ | 1.5:1 | 10 | 24 | 43.75 lbs | 87.5 lbs |
Technical data based on 2 ft. straight lengths of hose @ 72 deg.
