| Features: |
|
|---|---|
| Applications & Markets: |
|
| Materials: |
|
| Specifications: |
|
| Warning: |
|
| Series | Body Size | Max. Operating Pressure | Min. Burst Pressure | Rated Flow | |||
|---|---|---|---|---|---|---|---|
| 600 & 700 | 1/4″ | 103 bar | 1,500 psi | 412 bar | 6,000 psi | 595 lpm | 21 scfm |
![]() |
![]() |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Socket/Female (Figure 1) |

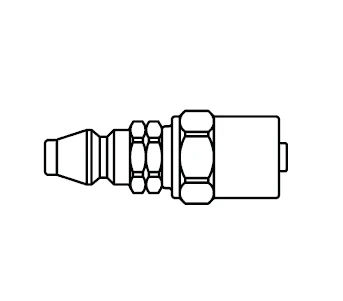

Plug/Male (Figure 2) |
|||||||||||
| 700 Series | Hose Crimp End Connections | ||||||||||||
| Standard* Part Number |
Acetylene Service Part Number |
Coupling Type | Body Size | Hose ID | Hose OD | Figure | Dimensions | |||||
| A | B | Hex | C | D | Hex | |||||||
| – | RD70B3SL | Socket/Female | 1/4″ | 1/4″ | 1/2″ | 1 | 2.57″ (65.3mm) |
1.00″ (25.4mm) |
0.63″ (16.0mm) |
– | – | – |
| 7B3 | – | Plug/Male | 1/4″ | 1/4″ | 1/2″ | 2 | – | – | – | 2.19″ (55.6mm) |
0.70″ (17.8mm) |
0.63″ (16.0mm) |
* Without sleeve lock
