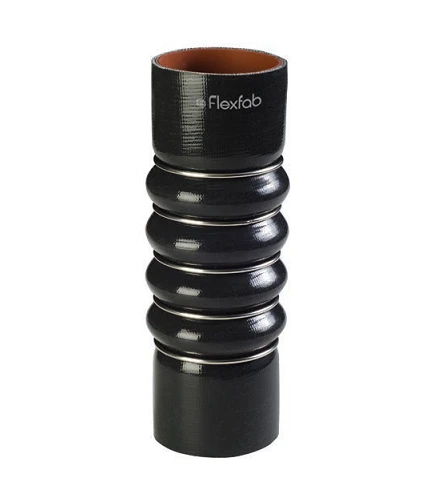

7967 By FlexFab | 3- Ply Coolant Bellow | 2.50″ ID | 2.82″ OD | Black | 8.5″ Overall Length

A. 7730-0001: Coolant Sleeve

• Specially designed coolant hose for unique applications. Sales should be consulted before use in new applications as pressure ratings are very specific.
• Hose can also be used for a cold side charge-air-cooler application as well
• Temperature range is -65°F (-54°C) to +350°F (+177°C)
• Maximum operating pressure is 30 PSI
• 4-ply polyester reinforced hose

B. 7967: Coolant Bellows

• Once installed, the hose can handle up to 1.00″ of lateral movement in the application
• Temperature range is -65°F (-54°C) to +350°F (+177°C)
• Meets or exceeds the operating requirements of SAE J20 R1 Class A
• Maximum operating pressure is 50 PSI
• 3-ply polyester reinforced hose

C. 7965: Coolant Elbow

• Used for a 90° coolant connection between pipes
• Tighter bend radius than most other 90° elbows
• Temperature range is -65°F (-54°C) to +350°F (+177°C)
• Meets or exceeds the operating requirements of SAE J20 R1 Class A
• Maximum operating pressure is 50 PSI
• 4-ply polyester reinforced hose

D. 7902: Charge Air 45° Elbow

• Used for a 45° hot side charge air connection between pipes
• Temperature range is -65°F (-54°C) to +450°F (+232°C)
• Maximum operating pressure is 55 PSI
• 6-ply meta-aramid reinforced hose
