Sale!

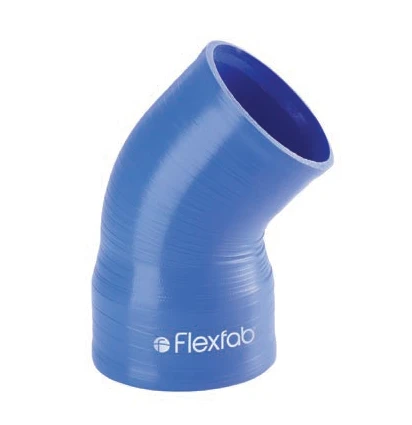

7902 By FlexFab | 6- Ply Charge Air | 3.50″/4.00″ ID | 4.17″/4.67″ OD | Blue | 45° Elbow | 8.75″ Overall Length

Original price was: $146.76.Current price is: $99.99.

Overview:

A. 7730-0001: Coolant Sleeve

Specially designed coolant hose for unique applications. Sales should be consulted before use in new applications as pressure ratings are very specific.
Hose can also be used for a cold side charge-air-cooler application as well
Temperature range is -65°F (-54°C) to +350°F (+177°C)
Maximum operating pressure is 30 PSI
4-ply polyester reinforced hose

B. 7967: Coolant Bellows

Once installed, the hose can handle up to 1.00″ of lateral movement in the application
Temperature range is -65°F (-54°C) to +350°F (+177°C)
Meets or exceeds the operating requirements of SAE J20 R1 Class A
Maximum operating pressure is 50 PSI
3-ply polyester reinforced hose

C. 7965: Coolant Elbow

D. 7902: Charge Air 45° Elbow

Part Number	Description	Inside Diameter	Outside Diameter	Overall Length	Stainless Steel Rings	Burst Pressure	Weight	Clamp
7730-0001	A. Coolant Sleeve	3.00″	3.23″	6.00″	No	90 PSI	0.5 lbs	FLX2582-0043 FLX2584-0362
7967	B. Coolant Bellow	2.50″	2.82″	8.50″	Yes	150 PSI	0.5 lbs	FLX2582-0040 FLX2584-0312
7965	C. Coolant Elbow	2.50″	2.92″	10.00″	No	150 PSI	0.5 lbs	FLX2582-0040 FLX2584-0312
7902	D. Charge Air 45° Elbow	3.50″ / 4.00″	4.17″ / 4.67″	8.75″	No	165 PSI	0.5 lbs	FLX2583-0350 FLX2583-0400
