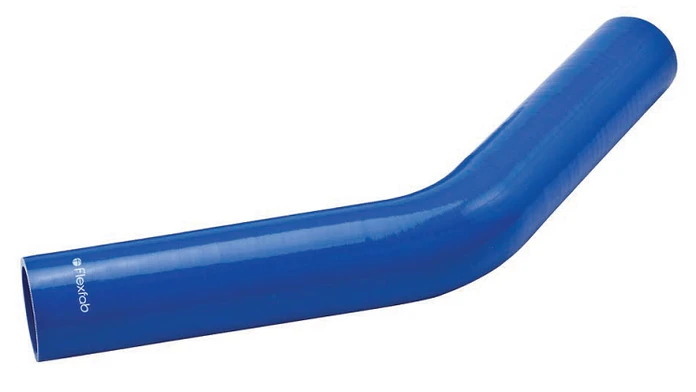

7896-175 By FlexFab | Series 7896 | 3-ply | 1.75" ID | 2.07" OD | Blue | 45° Elbow | Silicone | 6" Leg Length

7896-175 By FlexFab | Series 7896 | 3-ply | 1.75″ ID | 2.07″ OD | Blue | 45° Elbow | Silicone | 6″ Leg Length

Original price was: $42.49.Current price is: $29.74.

SKU: AG9ZZ 1481964879908 Categories: , Tags: , , , , , , , , , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers
Construction:
  • Silicone hose with 3-plies of Meta-Aramid Reinforcement
Specifications:
  • Meets or exceeds the operating requirements of SAE J20 R1 Class A
  • Meets or exceeds the operating requirements of TMC RP303B Class I Grade II
  • Custom Wall Thickness is .140″/.190″
  • Temperature range is -65°F (-54°C) to +500°F (+260°C)
  • Working pressure is 1/3 of the burst pressure
Applications:
  • For heavy duty pressure connections in hostile engine environments
  • Resists hardening, cracking, cold leaks, aging, and many chemicals
  • Ideal for extreme temperature and various pressure ranges where high performance levels are required
  • For connection between the turbocharger and the engine
  • Resists chemicals, steam, ozone, coolants, and aging conditions normally found in the engine environment
Part Number Inside Diameter Outside Diameter Leg Length – Inches(Avail. Clamp Space) Bend Radius Inches Burst Pressure Weight lbs Clamp
SAE J20 R1 TMC
7884 Series: 90° Silicone Elbows
7884-075 0.75″ 1.07″ 6.00 1.50″ 325 125 0.50 lbs FLX2582-0012
7884-100 1.00″ 1.32″ 6.00 2.00″ 300 125 0.50 lbs FLX2582-0016
7884-125 1.25″ 1.57″ 6.00 2.50″ 275 125 0.50 lbs FLX2582-0020 or
FLX2584-0212
7884-150 1.50″ 1.82″ 6.00 3.00″ 250 125 0.50 lbs FLX2582-0024 or
FLX2584-0212
7884-175 1.75″ 2.07″ 6.00 3.50″ 225 125 0.50 lbs FLX2582-0028 or
FLX2584-0262
7884-200 2.00″ 2.32″ 6.00 4.00″ 200 100 0.50 lbs FLX2582-0032 or
FLX2584-0262
7884-225 2.25″ 2.57″ 6.00 3.38″ 175 100 1.00 lbs FLX2582-0036 or
FLX2582-0312
7884-250 2.50″ 2.82″ 6.50 3.75″ 150 100 1.00 lbs FLX2582-0040 or
FLX2582-0312
7884-275 2.75″ 3.07″ 7.00 4.13″ 125 100 1.00 lbs FLX2582-0044 or
FLX2582-0362
7884-300 3.00″ 3.32″ 7.50 4.50″ 100 100 1.00 lbs FLX2582-0048 or
FLX2582-0362
7884-350 3.50″ 3.82″ 8.50 5.25″ 75 100 1.50 lbs FLX2582-0056 or
FLX2582-0412
7884-400 4.00″ 4.32″ 9.50 6.00″ 50 100 1.50 lbs FLX2582-0064 or
FLX2582-0462
7884-500 5.00″ 5.32″ 13.50 7.50″ N/A N/A 1.50 lbs FLX2584-0562
7896 Series: 45° Silicone Elbows
7896-075 0.75″ 1.07″ 6.00 4.00″ 325 125 0.50 lbs FLX2582-0012
7896-100 1.00″ 1.32″ 6.00 4.00″ 300 125 0.50 lbs FLX2582-0016
7896-125 1.25″ 1.57″ 6.00 4.00″ 275 125 0.50 lbs FLX2582-0020 or
FLX2584-0212
7896-150 1.50″ 1.82″ 6.00 4.00″ 250 125 0.50 lbs FLX2582-0024 or
FLX2584-0212
7896-175 1.75″ 2.07″ 6.00 4.00″ 225 125 0.50 lbs FLX2582-0028 or
FLX2584-0262
7896-200 2.00″ 2.32″ 6.00 4.00″ 200 100 0.50 lbs FLX2582-0032 or
FLX2584-0262
7896-225 2.25″ 2.57″ 6.00 4.00″ 175 100 1.00 lbs FLX2582-0036 or
FLX2582-0312
7896-250 2.50″ 2.82″ 6.50 4.00″ 150 100 1.00 lbs FLX2582-0040 or
FLX2582-0312
7896-275 2.75″ 3.07″ 7.00 4.00″ 125 100 1.00 lbs FLX2582-0044 or
FLX2582-0362
7896-300 3.00″ 3.32″ 7.50 4.00″ 100 100 1.50 lbs FLX2582-0048 or
FLX2582-0362
7896-350 3.50″ 3.82″ 8.50 4.00″ 75 100 2.00 lbs FLX2582-0056 or
FLX2582-0412
7896-400 4.00″ 4.32″ 9.50 4.00″ 50 100 2.50 lbs FLX2582-0064 or
FLX2582-0462

*Specifications for reference only. Specific test data available on request.
