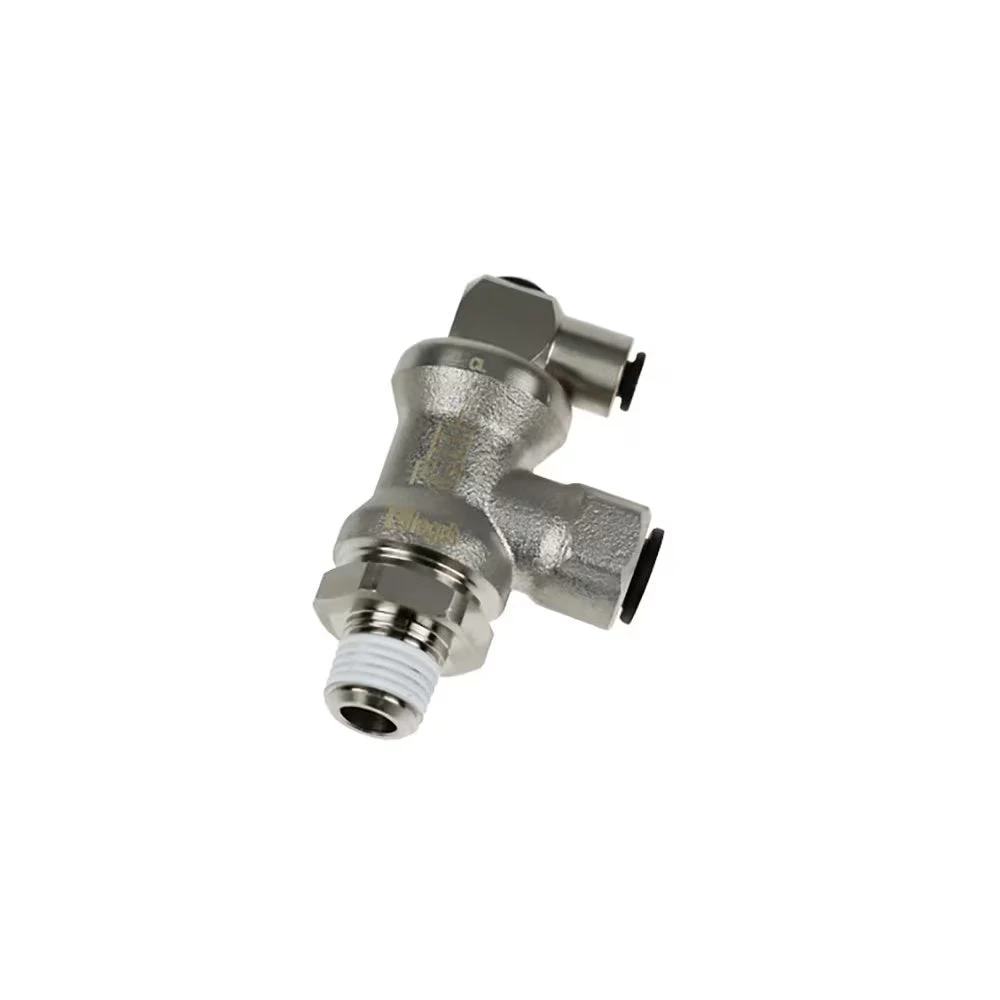

7885 06 10 By Parker | Legris Blocking Fitting | 6 Mm Tube Size X 1/8″ Male BSPT Thread | 21 Mm Hex | Multi-Directional | Nickel-Plated Brass

Compatible Fluids: Compressed air
Working Pressure: 1 to 10 bar
Working Temperature: -20°C to +70°C -25°C to +70°C (Metal version)

Name: Intricate 7885 06 10 By Parker | Legris Blocking Fitting | 6 Mm Tube Size X 1/8" Male BSPT Thread | 21 Mm Hex | Multi-Directional | Nickel-Plated Brass Patterns to Elevate Your Style in United States.
SKU: AG9ZZ 14646583787890
Price: 99.99 USD
Availability: InStock

Original price was: $143.38.Current price is: $99.99.

SKU: AG9ZZ 14646583787890 Category: Fittings & Clamps Tags: Created in 2024, Matrixify3rd50kProducts

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: 1 to 10 bar Working Temperature: -20°C to +70°C -25°C to +70°C (Metal version)
Advantages:	Mounted in pairs on a cylinder Compact size to fit into any configuration Proven endurance according to the requirements of DI 2006/42/EC (B10d = 10 000 000 cycles at a frequency of 1Hz, according to ISO 19973) Can be rotated 360° during assembly Spark resistance, for welding applications
Regulations:	RoHS REACH PED B10d >110 millions of cycles
Component Materials:	Body: Nickel-plated brass Release buttons: Polymer Seals: NBR Gripping ring: Stainless Steel Adapter: Nickel-plated brass Silicone-free


Part Number	ØD	C	F	G	H	H1	H2	J	L	Kg
7885 06 10	6 mm	1/8″	21 mm	24 mm	51.5 mm	25 mm	20 mm	17 mm	28 mm	.127 Kg
7885 06 13	6 mm	1/4″	21 mm	24 mm	51.5 mm	25 mm	20 mm	17 mm	28 mm	.131 Kg
7885 08 13	8 mm	1/4″	21 mm	24 mm	51.5 mm	25 mm	20 mm	17 mm	28 mm	.126 Kg
7885 08 17	8 mm	3/8″	21 mm	24 mm	51.5 mm	25 mm	20 mm	17 mm	28 mm	.131 Kg
7885 10 17	10 mm	3/8″	24 mm	28 mm	57 mm	25 mm	24 mm	27 mm	35 mm	.217 Kg
7885 12 21	12 mm	1/2″	24 mm	28 mm	57 mm	25 mm	24 mm	27 mm	37.5 mm	.229 Kg
